Infinity INTERMEZZO 1.2s - Integrated Circuit Diagrams

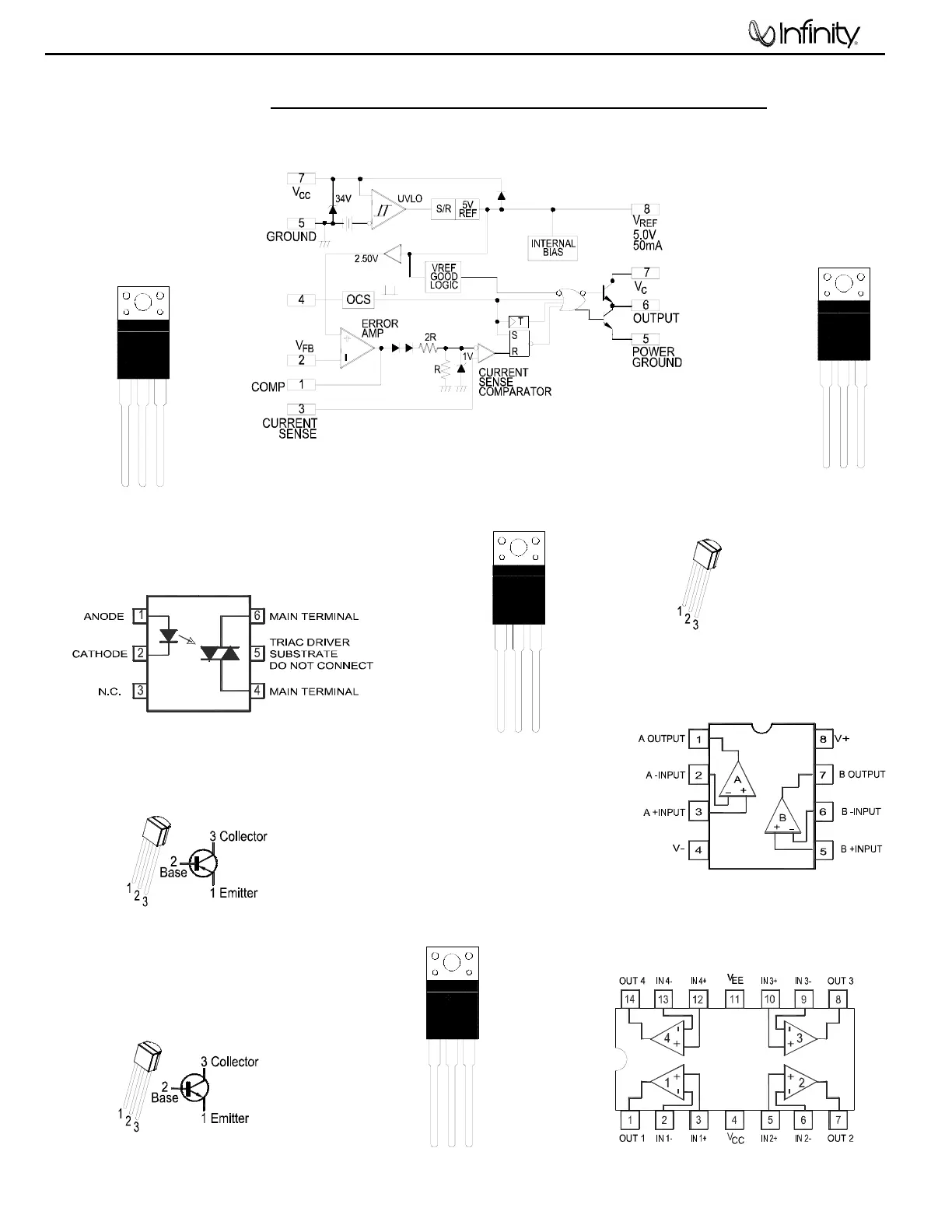

Integrated Circuit Diagrams
FOTO, MOC3012, 4N35
U304, 100
OPAMP, QUAD, 14 PIN,
LM324N, TL074/84
U306, 301, 104, 101, 102, 103,
200
TRANS, NPN, TO92, 2N4401, 2N5551TR,
2N5551, 2N555,
Q314, 315, 317, 303, 308, 322, 323
501, 102, 204, 200
TRANS, PNP, 2N5401TR,
TO92, MPSA92TR
Q302, 304, 309, 313
316, 324, 401
00462
R T/ C T
BCE
TRANS, 250V
TO220,TIP47
Q319
12
3
MOSFET, IRF640/740,
IRF9640, TO220AB
Q305, 310, 320, 321
306, 307, 311, 312,
403, 404, 406, 407
1. G
2. D
3. S
-5V TO220,
7905CT,
REGULATOR
U303, 502
1
1. GROUND
2. INPUT
3. OUTPUT
32
OPAMP, DUAL 8
PIN, TLO82
U201
1. INPUT
2. GROUND
3. OUTPUT
21
3
+5V TO220,
7805CT
REGULATOR
U302, 501
JFET, J111,
Q100,101,103,201,
202, 205, 301
1. D
2. S
3. G
34
INTERMEZZO 1.2s
