Infinity Intermezzo 4.1t Service Manual

(12)
INTERMEZZO 4.1T
LOWER HOUSING
(NOT FOR SALE)
INTERMEZZO 4.1T
UPPER HOUSING
(NOT FOR SALE)
(ROTATED
90° CCW)
3
18
10
9
8
5
4
13
16
17
7
(4)
13
(4)
(2)
13
4
2
11
3
14
19
12
6
20
INTERMEZZO 4.1t
14

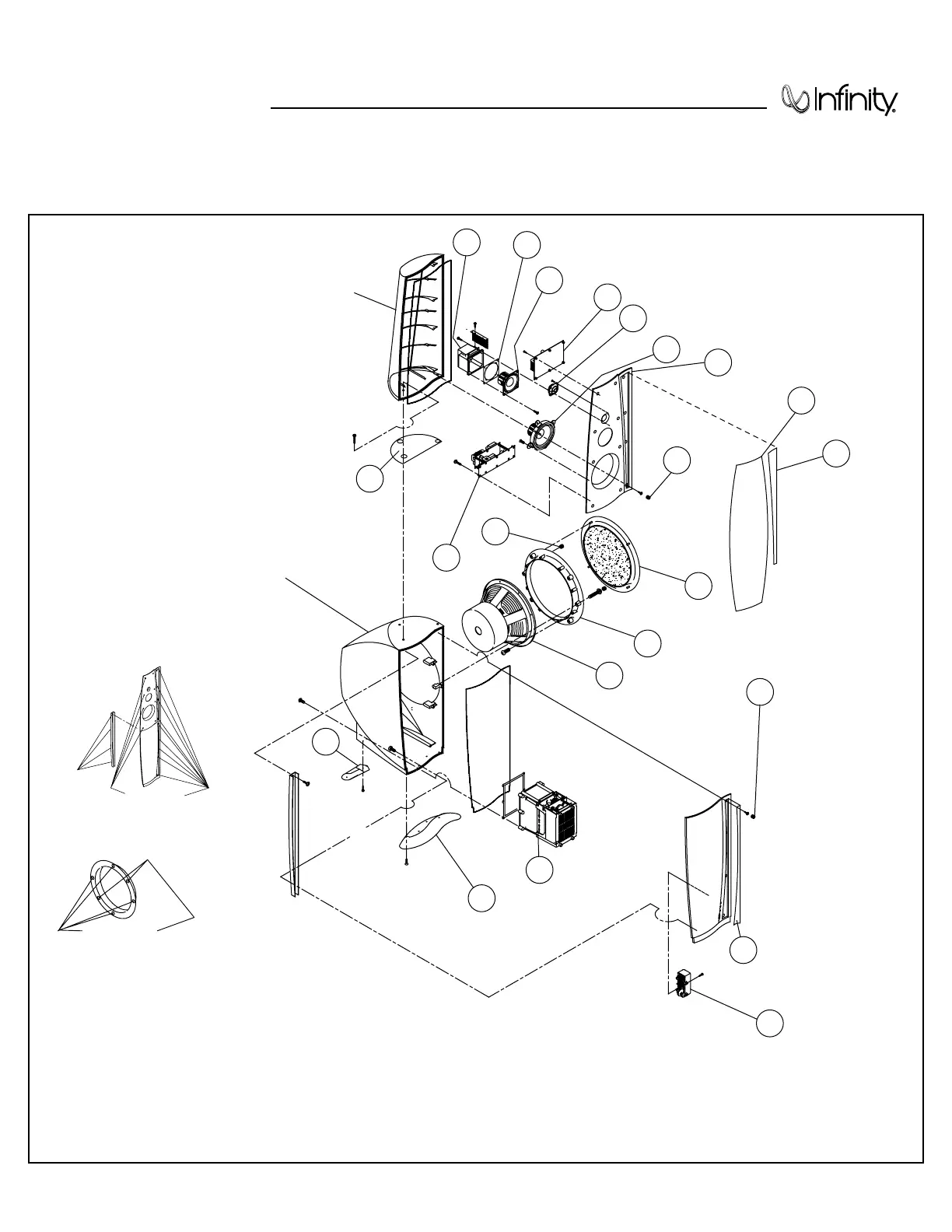

Exploded View
Right Loudspeaker Shown
TO SERVICE THE INTERMEZZO 4.1t
1. Remove the grilles and side panels.
2. Extract (20) of the rubber grille retainers and (2) of the titanium retainers
as shown in the illustration; this can be accomplished by carefully pulling
them out of their cavities with long-nosed pliers or similar tool.
3. Remove the (13) Phillips screws from both baffles.
4. Tower: Remove the top baffle with the drivers attached.
5. Woofer: Remove the (6) Phillips screws from the trim ring that is now exposed.
6. Remove the trim ring with the woofer attached.
7. Remove the (4) H/L screws by reaching through the woofer cavity; remove the lower baffle with the R.A.B.O.S. controls attached.
8. To service the amplifier, remove the (6) Phillips screws at the rear of the enclosure, and push the amplifier assembly out the front.
Remove These
Grille Cups and
Screws Only
Titanium (2)
Remove These
Grille Cups and
Screws Only
Bracket
Remove
These
Screws
