Kappa Series Powered Subwoofer – Owner’s Manual
Tracks 53–62 of the R.A.B.O.S. Test CD are test tones that can be used for general
diagnostics of your system. They are not used for R.A.B.O.S. settings.
The RSLM is a battery-operated, handheld, acoustic measurement device specifically
designed for Infinity R.A.B.O.S. On the face of the instrument is a light-emitting diode
(LED) bar graph that indicates relative sound level. There are also indicators for
power-on, out-of-range signals and a low battery.
Power
-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
-11
-13
-15
-18
U-R
Batt
Track Title
1 Welcome
2 Set System Test Level
3 Set Subwoofer Test Level
4 100Hz Test
5 95Hz Test
6 90Hz Test
7 85Hz Test
8 80Hz Test
9 77Hz Test
10 72Hz Test
11 66Hz Test
12 63Hz Test
13 56Hz Test
14 52Hz Test
15 49Hz Test
16 46Hz Test
17 43Hz Test
18 40Hz Test
19 38Hz Test
20 35Hz Test
21 30Hz Test
22 26Hz Test
23 24Hz Test
24 22Hz Test
25 21Hz Test
26 20Hz Test
27 Intro to Quick Retest
28 Quick Retest 100Hz
29 Quick Retest 95Hz
30 Quick Retest 90Hz
31 Quick Retest 85Hz
Track Title
32 Quick Retest 80Hz
33 Quick Retest 77Hz
34 Quick Retest 72Hz
35 Quick Retest 66Hz
36 Quick Retest 63Hz
37 Quick Retest 56Hz
38 Quick Retest 52Hz
39 Quick Retest 49Hz
40 Quick Retest 46Hz
41 Quick Retest 43Hz
42 Quick Retest 40Hz
43 Quick Retest 38Hz
44 Quick Retest 35Hz
45 Quick Retest 30Hz
46 Quick Retest 26Hz
47 Quick Retest 24Hz
48 Quick Retest 22Hz
49 Quick Retest 21Hz
50 Quick Retest 20Hz
51 Final System Level Adjustment
52 Final Subwoofer Level Adjustment
53 Wide Band Pink Noise, Left
54 Wide Band Pink Noise,L+R
55 Wide Band Pink Noise, Right
56 Wide Band Pink Noise, L-R
57 Wide Band Pink Noise, Uncorrelated
58 1 to 4kHz Pink Noise, Left
59 1 to 4kHz Pink Noise, L+R
60 1 to 4kHz Pink Noise, Right
61 1 to 4kHz Pink Noise, Left-R
62 1 to 4kHz Pink Noise, Uncorrelated

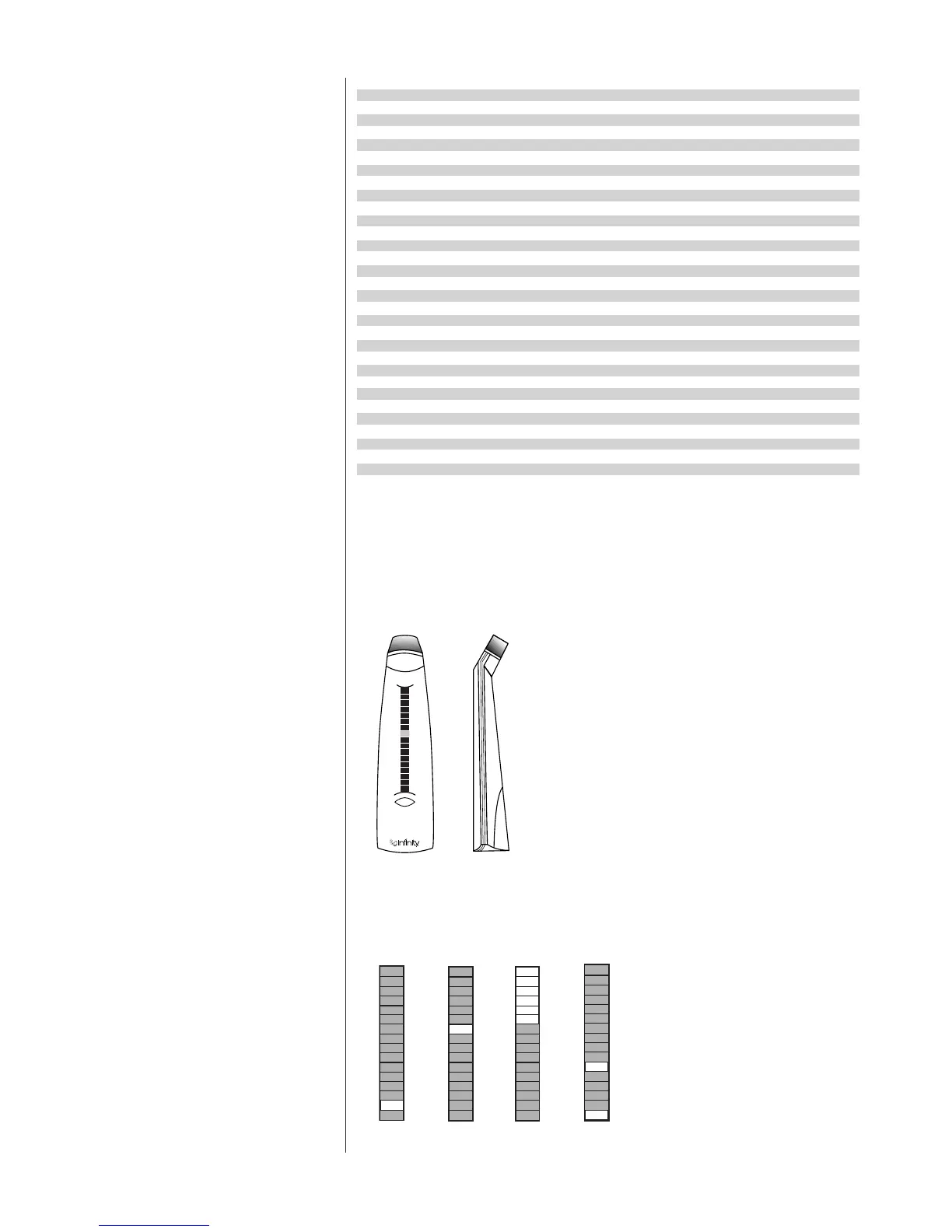

Figure 4
R.A.B.O.S. Sound-Level Meter
Contents of the
R.A.B.O.S. Test CD
Batt
ON
-16
-14
-12
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0 dB
Batt
ON
-16
-14
-12
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0 dB
Batt
ON
-16
-14
-12
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0 dB
Batt
ON
-16
-14
-12
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0 dB
On
Under-range
Measurement
In-range
Over-range
Low
Battery
The R.A.B.O.S.
Sound-Level Meter
(RSLM)
Power is switched on or off by pressing the button directly below the bar-graph
window. When the unit is on, one or more LEDs will always be illuminated. The function
of the LEDs is described in the following section.
Figure 5
RSLM bar-graph indications
