Infinity Minuette L-MPS - Vertical Wall Mounting (Direct); Horizontal Wall Mounting (Direct)

VERTICAL PLACEMENT
HORIZONTAL PLACEMENT

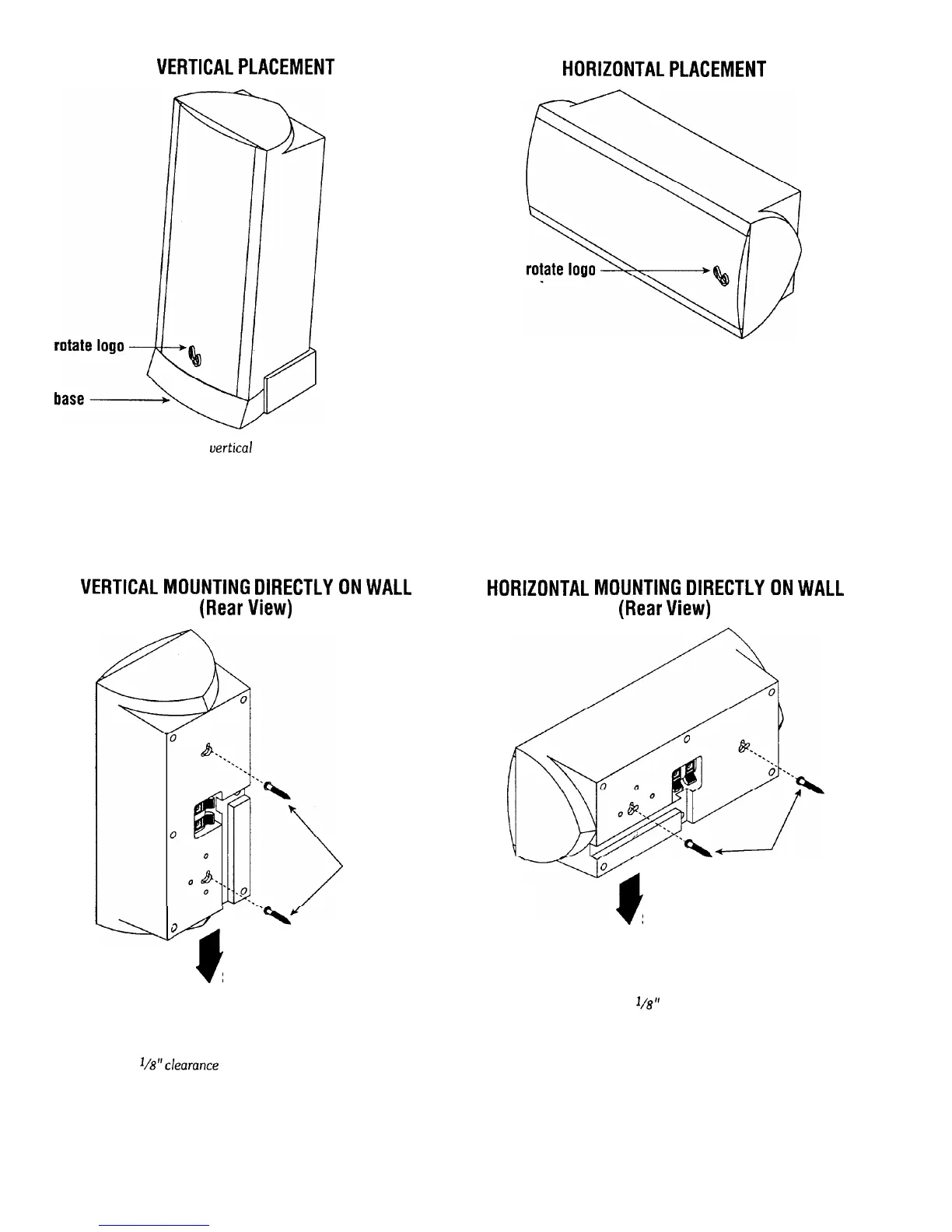

FIGURE 2. Free-standing uertical placement of L-MPS speaker.
NOTE: Use the enclosed base for added stability.
VERTICAL MOUNTING DIRECTLY ON WALL
(Rear View)
Wood Screws
(fasten to
wall stud)
A
1
t
Slide Speaker Down
Onto Wood Screws
FIGURE 4. For vertical mounting of the L-MPS speaker directly
on a wall, fasten the wood screws (not included) to a desired wall
stud, leauing a 1/8”clearance between the screw head and the wall.
Rotate the L-MPS speaker vertically, align the keyholes on the rear
of the speaker with the wood screws, and slide speaker down.
FIGURE 3. Free-standing horizontal placement of L-MPS speaker.
HORIZONTAL MOUNTING DIRECTLY ON WALL
(Rear View)
0
7
Wood Screws
(fasten to
wall stud)
Slide Speaker Down
Onto Wood Screws
FIGURE 5. For horizontal mounting of the L-MPS speaker
directly on a wall, fasten the wood screws (not included) to a
desired wall stud, leauing a l/8” clearance between the screw head
and the wall. Rotate the L-MPS speaker horizontally, align the
keyholes on the rear of the speaker with the wood screws, and
slide speaker down.
