Infinity Minuette L-MPS - Vertical Wall Mounting (Bracket); Horizontal Wall Mounting (Bracket)

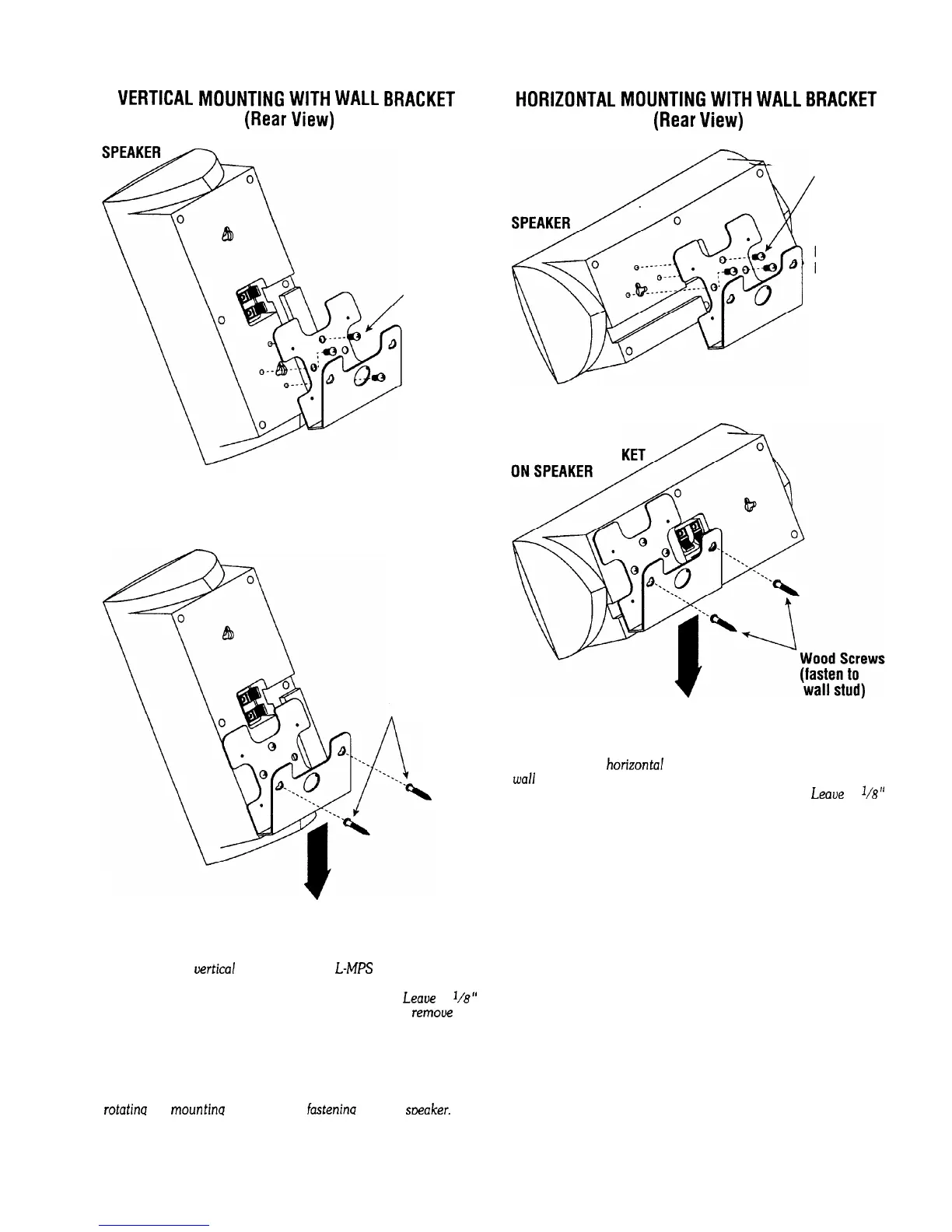

VERTICAL MOUNTING WITH WALL BRACKET
(Rear View)
(3) Screws
(fasten to
speaker)
MOUNTING
BRACKET
MOUNTING BRACKET
ON SPEAKER
Wood Screws
(fasten to
wall stud)
Slide Speaker With Bracket
Down Onto Wood Screws
FIGURE 6. For uertical mounting of the L-MB speaker on a wall
using the enclosed bracket, fasten the bracket (as shown) with
wood screws (not included) to a desired wall stud. Leaue a I/B”
clearance between the screw head and the wall. Then, remoue the
bracket and firmly attach it to the back of the speaker using the
enclosed screws. Finally, align the bracket’s keyholes with the
wood screws in the wall, and slide the speaker (with bracket) down.
NOTE: The aboue illustration shows the L-MPS speaker being
mounted with a downward tilt. Other orientations are possible by
rotatina the mountina bracket before fastenina it to the smaker.
HORIZONTAL MOUNTING WITH WALL BRACKET
(Rear View)
(3) Screws
(fasten to
speaker)
MOUNTING
BRACKET
MOUNTING BRAC
Slide Speaker With Bracket
Down Onto Wood Screws
FIGURE 7. For horizonta! mounting of the L-MPS speaker on a
wall using the enclosed bracket, fasten the bracket (as shown) with
wood screws (not included) to a desired wall stud. Leaoe a l/B”
clearance between the screw head and the wall. Then, remove the
bracket and firmly attach it to the back of the speaker using the
enclosed screws. Finally, align the bracket’s keyholes with the
wood screws in the wall, and slide the speaker (with bracket) down.
NOTE: The aboue illustration shows the L-MPS speaker being
mounted with a downward tilt. Other orientations are possible by
rotating the mounting bracket before fastening it to the speaker.
3
