PERFORMANCEDATA
DRIVE UNITS
AMPLIFIER
(BUILT-IN POWER AMPLIFIERFOR
LOW-Fi_QUENCY SECTION)
DIMENSIONS
(also see inside front cover)

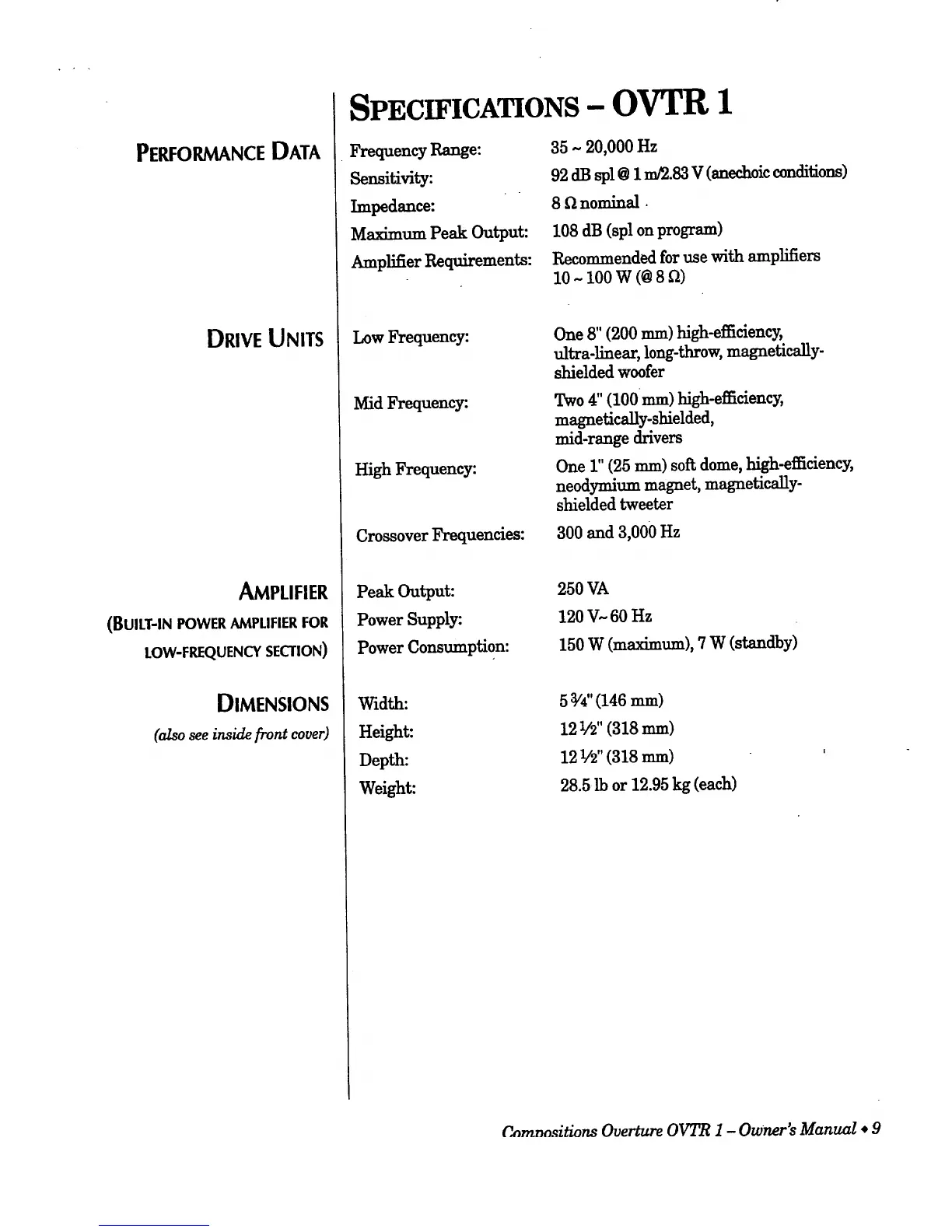

SPECIFICATIONS - OVTR 1
Frequency Range:
Sensitivity:
Impedance:
Maximum Peak Output:
Amplifier Requirements:
35 ~ 20,000 Hz
92 dB spl @ 1 m/2.83 V (anechoic conditions)
8 _ nominal.
108 dB (spl on program)
Recommended for use with amplifiers
I0 ~ I00 W (@8 _)
Low Frequency:
Mid Frequency:
High Frequency:
Crossover Frequencies:
One 8" (200 ram) high-efficiency,
ultra-linear, long-throw, magneticany-
shielded woofer
'1_o 4" (100 ram) high-efficiency,
magnetically-shielded,
mid-range drivers
One 1"(25 mm) sof_ dome, high-efficiency,
neodymium magnet, magneticaUy-
shielded tweeter
300 and 3,000 Hz
Peak Output:
Power Supply:
Power Consumption:
250 VA
120 V~ 60 Hz
150 W (maximmn), 7 W (standby)
Width:
Height:
Depth:
Weight:
5 3/4"(146 ram)
12 V2" (318 ram)
121/2" (318 ram)
28.5 lb or 12.95 kg (each)
Comnositions Overture OVTR 1 - Owner's Manual • 9
