10Base-T Ethernet and 100Base-T fast Ethernet use the same two pairs of wires. The twisted pair of wires connecting to pins 1 and 2 transmit
data, and the twisted pair connecting to pins 3 and 6 receive data.000Base-T connections use all four twisted-pair wires are used for bidirectional
traffic.
Infoblox 800 Series Appliance Rear Panel

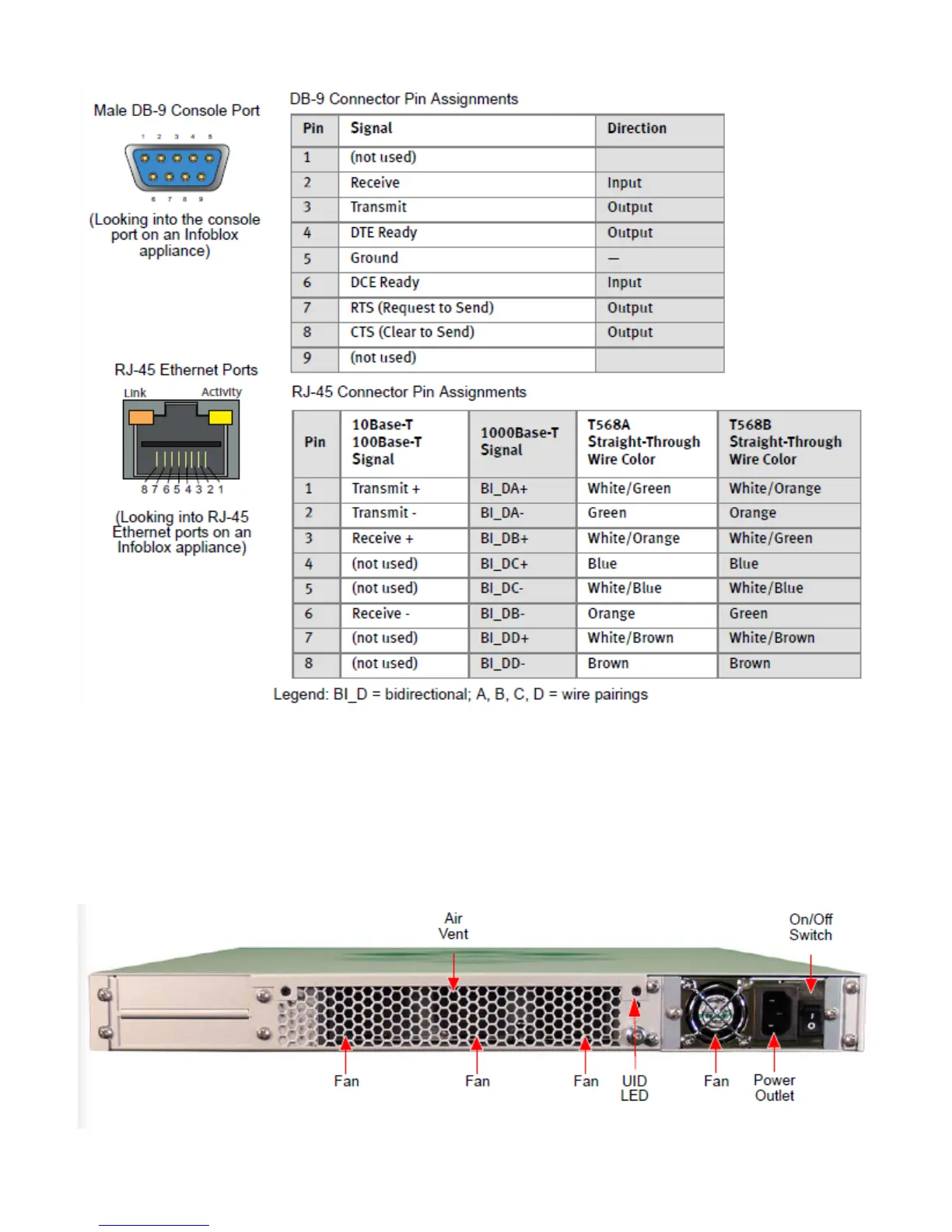

Figure 4 shows the rear panel components on the Infoblox 800 Series appliances.
Figure 4 Infoblox 800 Series, Rear View
