3. Extend the rack rail assembly backwards, align the mounting holes on the chassis slide rails with the required cage nuts, and fasten the back end
of the rack rail to the two cage nuts on the rear post of the designated space. As noted, the rack rail assembly has an extension range from the
minimum of 600mm to a maximum of 900mm.
4. Perform Steps 2 and 3 for the second rack rail assembly.
5. Attach the chassis slide rails to each side of the chassis with three (3) flathead 8-32 screws, in the orientation shown in .Figure 11

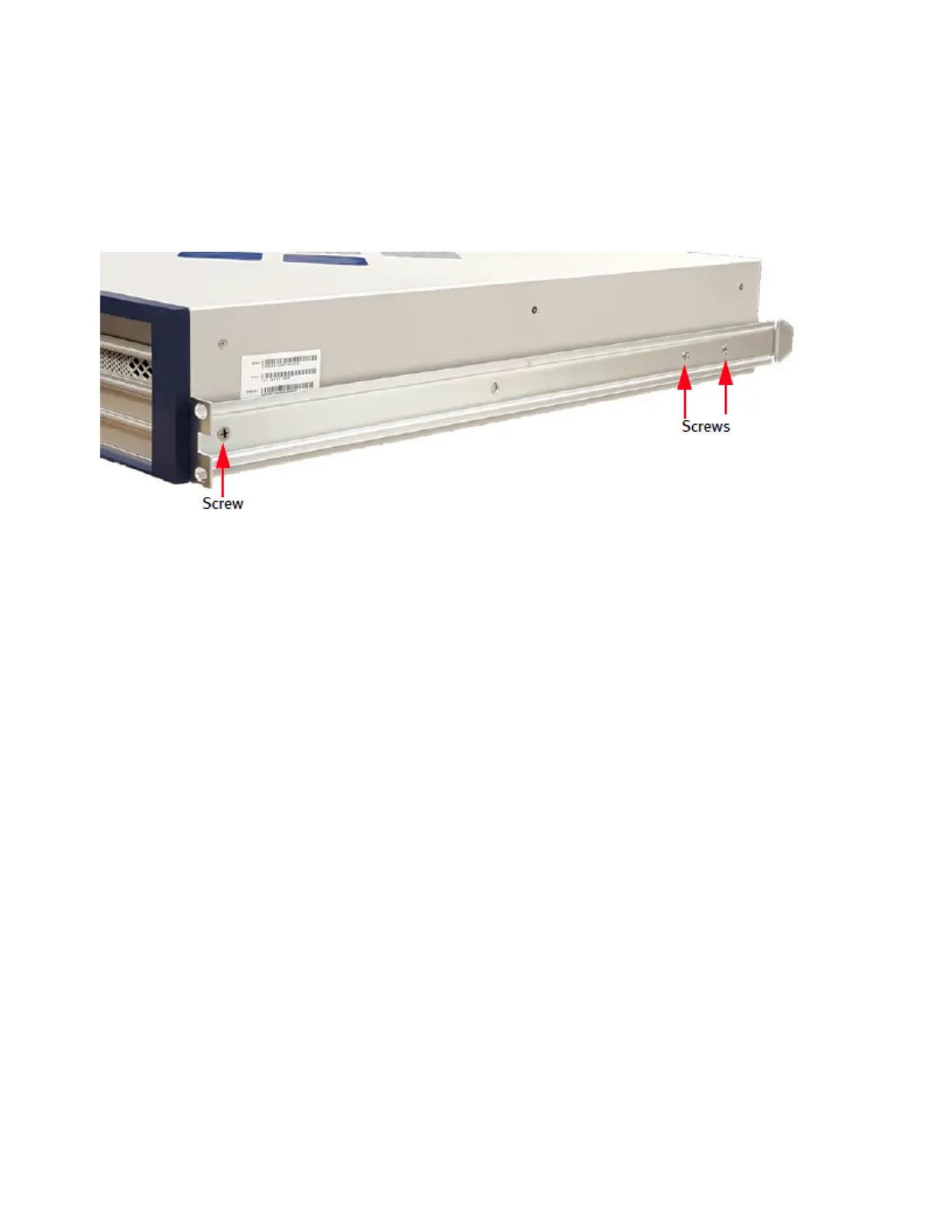

Figure 11 Chassis slide rails Installation
6. Lift the appliance and position it in front of the equipment rack.
7. Align the chassis slide rails on the appliance with the rack rail assemblies on the posts of the equipment rack.
8. Slide the appliance into the rack rail assembly.
9. Secure the rack ears to the rack with three (3) 10-32 screws on each side of the rack.
