InFocus IN114 User Manual

19
Using the remote control
The remote uses two (2) AAA batteries (not provided). They are easily installed by
removing the cover from the remote’s back, aligning the + and - ends of the
batteries, sliding them into place, and then replacing the cover.
Caution:
• When replacing the remote batteries, be aware that using batteries other than
AAA batteries may
risk
severe damage to the remote. When disposing of the
batteries, be sure to do so in an enviromentally proper manner.
• If the remote control gets wet, wipe it dry immediately.
• A
void excessive heat and humidity.
• Ensure the batteries' polarity (+/-) is aligned correctly.
• Do not mix new and old batteries together, or mix different types of batteries
together.
• Replace the batteries as soon as they run out.
• Remove batteries from the remote control when storing or not in use for a pro-
longed period.
To operate, point the remote at the front of t
he projector (not at the computer). The
range of optimum operation is about 15 feet (4.5m).
Press the remote’s Powe
r button
to turn the projector on and off (see page 11 for
shutdown info).
Press the remote’s Menu button to open the projector’s menu system. Use the arrow
buttons to navigate, and the Select button to select features and adjust values in the
menus. See page 24 for more info on the menus.
The remote also has:
• Vo
lume buttons
adjust the sound.
• Custom button that can be assigned to a special function
, like Blank Screen or
Freeze (see page 27).
• Source b
utton brings up a menu of all possible sources allowing the user to
switch the active source.
• Blank button to blank the screen.
• Presets button to select stored settings (see page 25).
• Mute button to silence the audio.
• Auto Image butto
n to resynch the projector to the source.
• Resize button to switch
among aspect ratios (see page 25).
• Help button to get help with connecting sources and improving the picture.
•ESC button to go back to
previous OSD menu.
• PC button to cycle through the
Computer sources.
• Video button to cycle through Composite/S-Video/HDMI input sources.
• Keystone buttons
adjust the squareness of the image
• Magnify buttons magnify and reduce the p
rojected picture size.
• Freeze button to pause the projected image.
• Overscan button
remove noise around the video image.
• AV Mute button blanks
the projected image and mutes audio.
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are not dead.
• Make sure you’re pointing the remote at the projector or the
screen, not the
computer, and are within the remote range of 15 feet (4.5m). For best results,
point the remote at the projector.

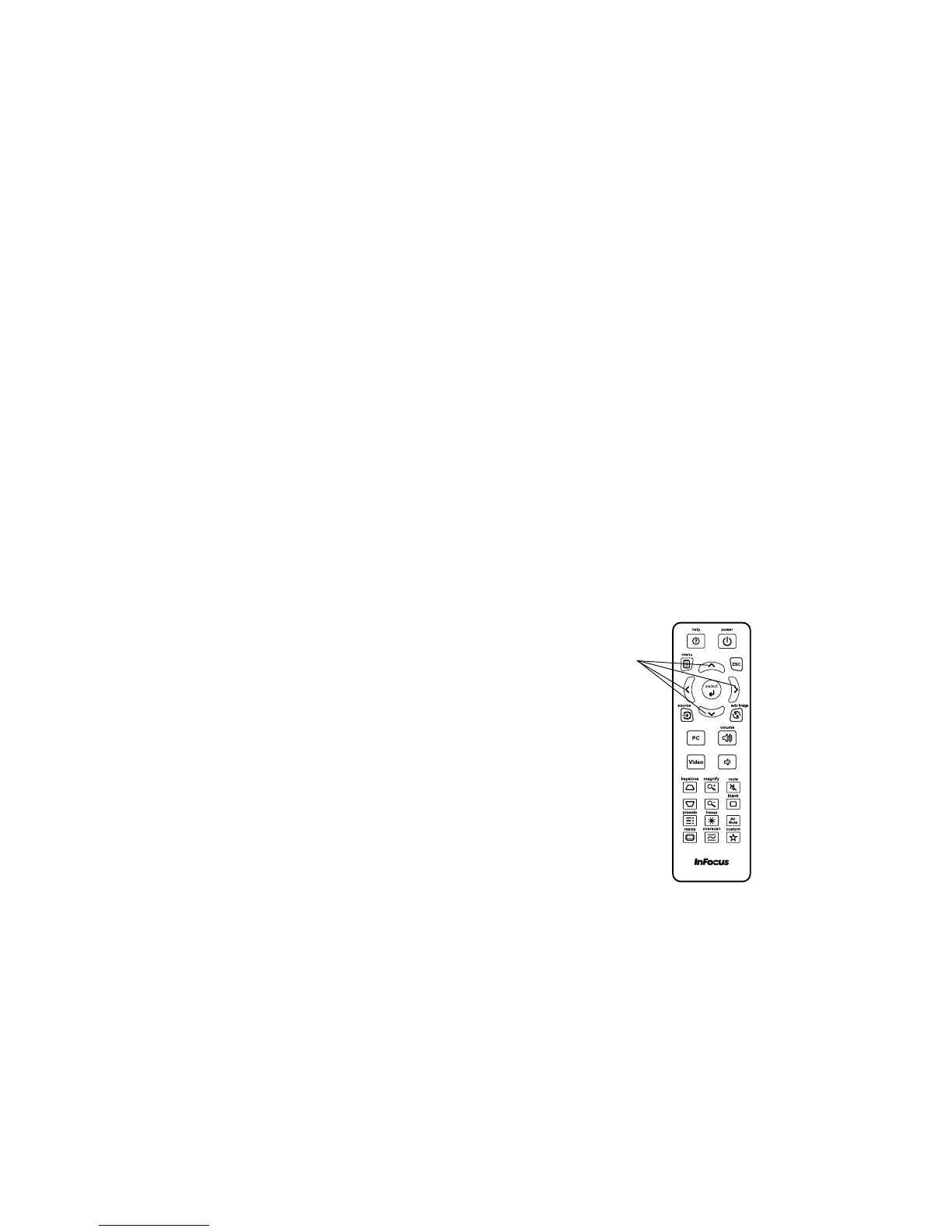

navigation
buttons

InFocus IN114 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.5 - 11.9 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	40 - 303 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	± 40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2200 ANSI lumens
Focus	Manual
Offset	15 %
Throw ratio	1.97 - 2.17:1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	180 W
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
DVI port	No
USB connector type	Mini-USB B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power consumption (standby)	- W
Power consumption (typical)	235 W
Noise level	30 dB
Preset modes	Beige wall, Blackboard, Bright, Cinema, Custom, Presentation, Whiteboard
Certification	UL, c-UL, FCC, CE
Password protection type	User
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	235 mm
Width	284 mm
Height	70 mm
Weight	2170 g
Package width	330 mm
Package height	150 mm
Package weight	3670 g
