InFocus IN114 User Manual

9
Adjusting the image
If necessary, adjust the height of the projector by rotating the elevator foot to extend
the foot.
If necessary, rotate the leveling foot located at the rear of the projector.
Avoid placing your hands near the hot exhaust vent
at the front of the projector.
Position the projector the desired distance from the
screen at a 90 degree angle to
the screen.
See page 6 for a table listing scree
n
sizes and distances.
Adjust the zoom or focus.
If the image is not square, first make sure tha
t
the projector is perpendicular to the
screen. If the image is larger or smaller on the top or bottom edge of the screen,
press the top Keystone button to reduce the upper part of the image, and press the
bottom Keystone button to reduce the lower part.
If the left or right side of the screen is larger or smaller the other, you can turn the
projector to the left or to the right a few degrees to square the image.
Adjust the Contrast or Brightness in the
Basic Menu.
See page 25 for help with
these menu adjustments.

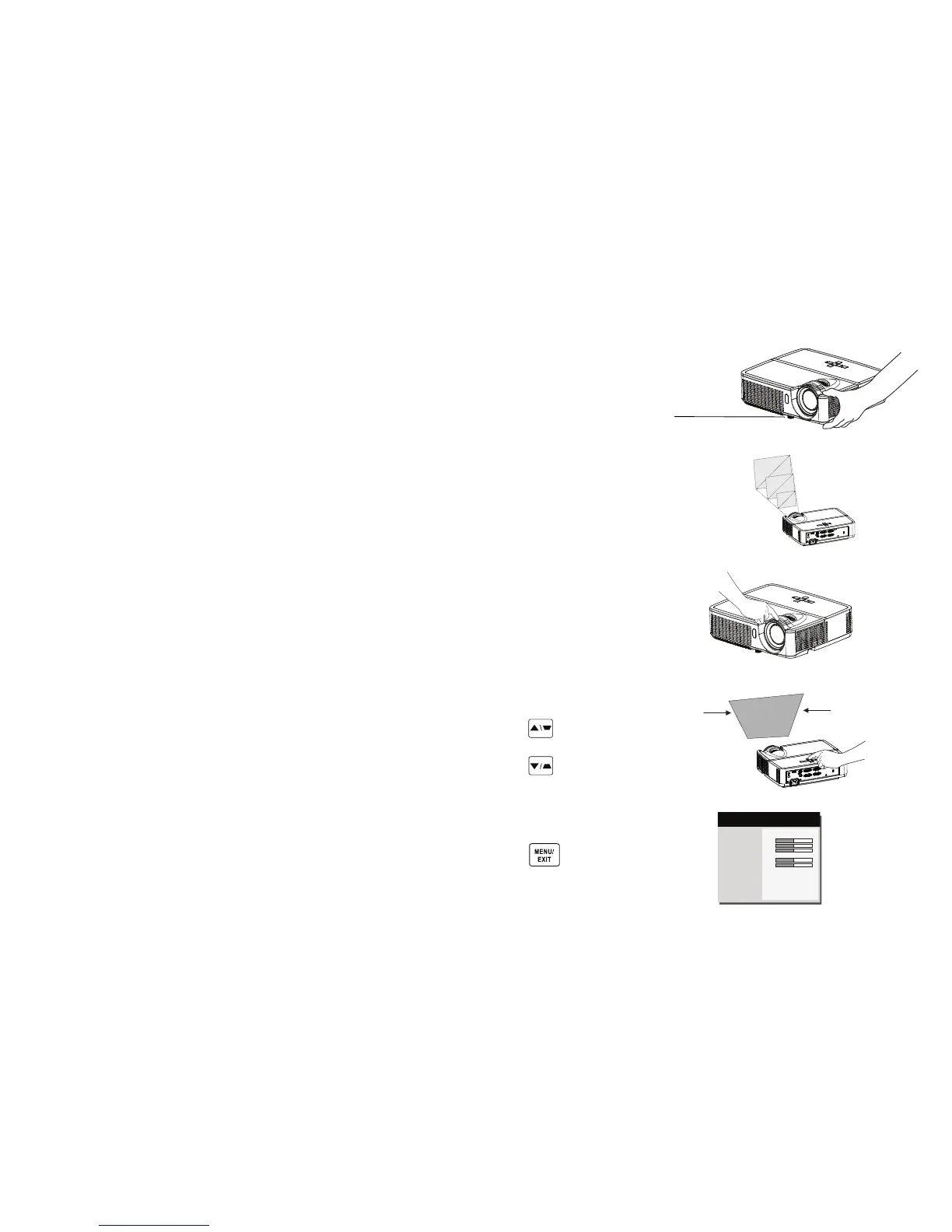

adjust distance
adjust zoom and focus
adjust keystone
Aspect Ratio
Auto Image
Brightness
Contrast
Keystone
Presets
Sharpness
Volume
Ceiling Mount
Advanced Menu
◄ Auto ►
Execute
50
50
50
Presentation
50
50
Off
( Basic Menu )
MDL: IN112
FW: 0.13
adjust Basic Menu
adjust height
elevator
foot

InFocus IN114 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.5 - 11.9 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	40 - 303 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	± 40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2200 ANSI lumens
Focus	Manual
Offset	15 %
Throw ratio	1.97 - 2.17:1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	180 W
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
DVI port	No
USB connector type	Mini-USB B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power consumption (standby)	- W
Power consumption (typical)	235 W
Noise level	30 dB
Preset modes	Beige wall, Blackboard, Bright, Cinema, Custom, Presentation, Whiteboard
Certification	UL, c-UL, FCC, CE
Password protection type	User
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	235 mm
Width	284 mm
Height	70 mm
Weight	2170 g
Package width	330 mm
Package height	150 mm
Package weight	3670 g
