InFocus IN124A User Manual

9

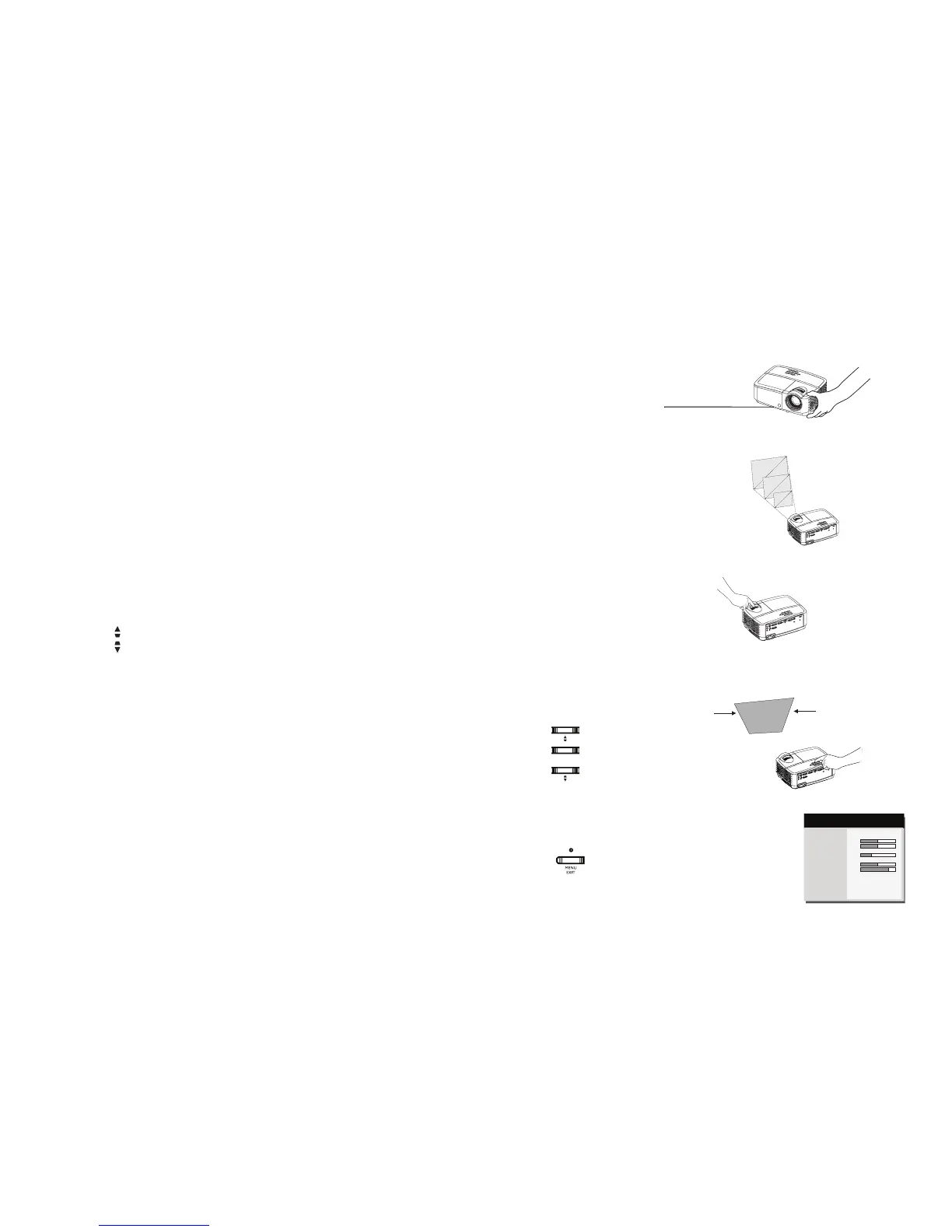

Adjusting the image
If necessary, adjust the height of the projector by rotating the elevator foot to extend the
foot.
If necessary, rotate the leveling foot located at the rear of the projector.
Avoid placing your hands near the hot exhaust vent at the front of the projector.
Position the projector the desired distance from the screen at a 90 degree angle to the
screen.
See page 6 for a table listing screen sizes and distances.
Adjust the zoom or focus.
If the image is not square, first make sure that the projector is perpendicular to the screen. If
the image is larger or smaller on the top or bottom edge of the screen, press the top
Keystone button to reduce the upper part of the image, and press the bottom
Keystone button to reduce the lower part.
If the left or right side of the screen is larger or smaller the other, you can turn the projector
to the left or to the right a few degrees to square the image.
Adjust the Contrast or Brightness in the Basic Menu. See page 25 for help with these menu
adjustments.
adjust height
elevator
foot
adjust distance
adjust zoom and focus
adjust keystone
Aspect Ratio
Auto Image
Brightness
Contrast
Auto Keystone
Keystone
Presets
Sharpness
Volume
Ceiling Mount
Advanced Menu
◄ Auto ►
Execute
50
50
Off
0
Presentation
16
16
Off
( Basic Menu )
MDL: IN124a
FW: 1.12
adjust Basic Menu

InFocus IN124A Specifications

General

Matrix size	0.55 \
Number of colors	134 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	15000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	24 kHz
Horizontal synchronization (max)	91 kHz
Horizontal synchronization (min)	15 kHz
Projector brightness (economic mode)	3200 ANSI lumens
Focus	Manual
Throw ratio	1.9 - 2.2:1
Zoom capability	Yes
Focal length range	- mm
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	190 W
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
HDMI version	1.4
Audio (L/R) in	0
USB connector type	Mini-USB B, USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Optical disc player type	Not included
Internal storage capacity	2 GB
HDCP	-
Noise level	32 dB
Preset modes	Bright, Presentation
Certification	UL, c-UL (US/Canada), FCC (US/Canada), CE
Noise level (economic mode)	30 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, HUN, ITA, KOR, NOR, POL, POR, RUM, RUS, SWE, TUR
RMS rated power	2 W
Audio formats supported	AAC, ADPCM, MP1, MP2, MP3, OGG, WMA
Image formats supported	BMP, JPG
Video formats supported	H.263, H.264, M-JPEG, MPEG1, MPEG4, WMV, XVID
Document formats supported	PDF
Placement	Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Portable
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	- W
Operating altitude	0 - 3048 m
Operating temperature (T-T)	0 - 40 °C
Cables included	VGA
Remote control type	IR

Weight and Dimensions

Depth	220 mm
Width	292 mm
Height	108 mm
Weight	3170 g
Package depth	305 mm
Package width	362 mm
Package height	197 mm
Package weight	3670 g
