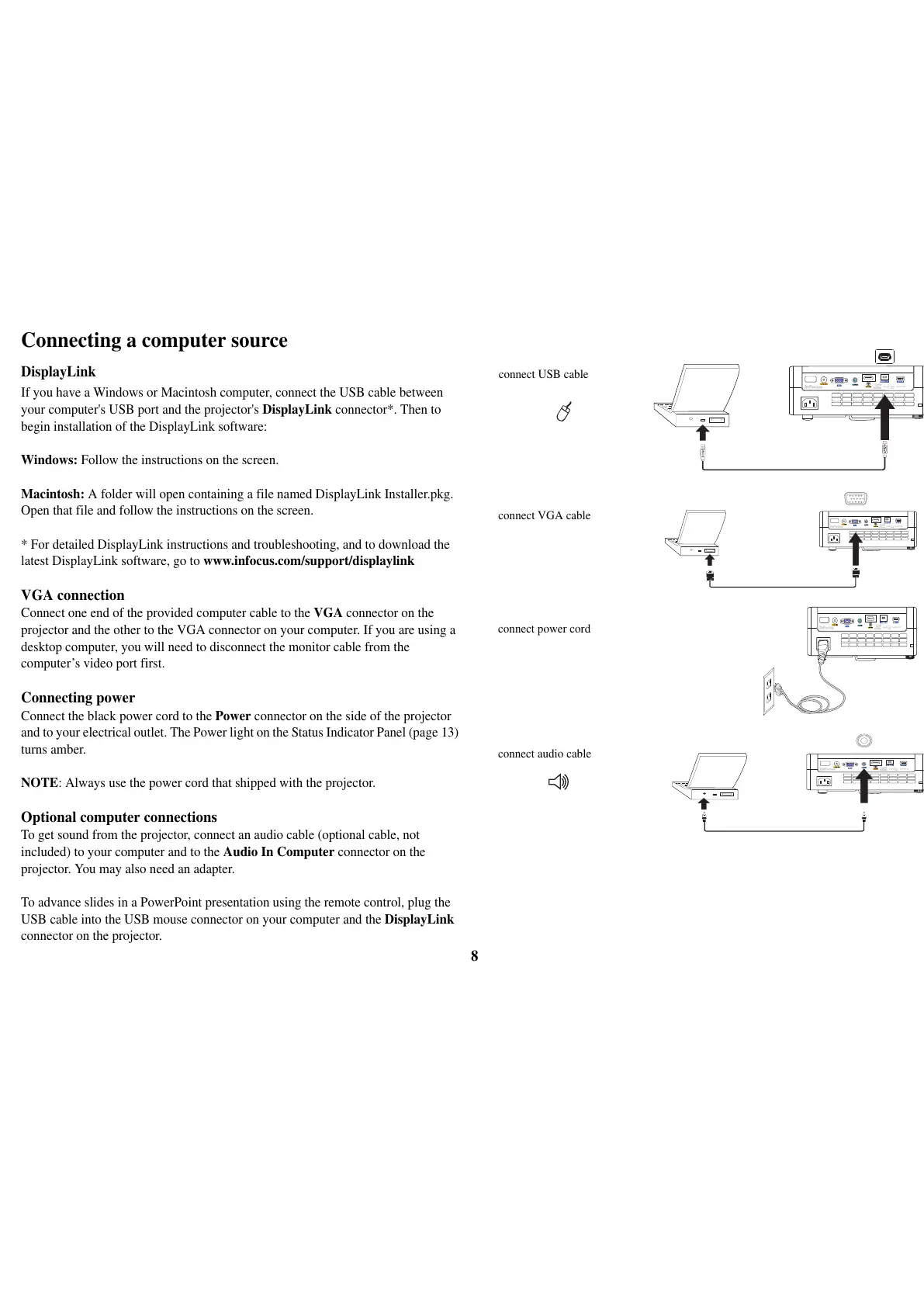

Connecting a computer source
DisplayLink
If you have a Windows or Macintosh computer, connect the USB cable between
your computer's USB port and the projector's DisplayLink connector*. Then to
begin installation of the DisplayLink software:
Windows: Follow the instru
ctions on the screen.
Macintosh: A folder
will open containing a file named DisplayLink Installer.pkg.
Open that file and follow the instructions on the screen.
* For detailed DisplayLink instructions and troubleshoo
ting, and to download the
latest DisplayLink software, go to www.infocus.com/support/displaylink
VGA connection
Connect one end of the provided computer cable to the VGA connector on the
projector and the other to the VGA connector on your computer. If you are using a
desktop computer, you will need to disconnect the monitor cable from the
computer’s video port first.
Connecting power
Connect the black power cord to the Power connector on the side of the projector
and to your electrical outlet. The Power light on the Status Indicator Panel (page 13)
turns amber.
NOTE: Always use the power
cord that shipped with the projector.
Optional computer connections
To get sound from the projector, connect an audio cable (optional cable, not
included) to your computer and to the Audio In Computer connector on the
projector. You may also need an adapter.
To advance slides in a PowerPoint presentation using the remote con
trol, plug the
USB cable into the USB mouse connector on your computer and the DisplayLink
connector on the projector.
MOLEX
MOLEX
connect USB cable
connect VGA cable
connect power cord
connect audio cable
All manuals and user guides at all-guides.com

InFocus IN1503 Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	0.76/3.51 m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	1800:1
Screen size compatibility	- \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30/30 °
RS-232 ports	0
Focus	Manual
Offset	105 %
Throw ratio	0.72 - 0.86:1
Focal length range	- mm
Lamp power	165 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	1 W
Number of built-in speakers	1
Audio (L/R) in	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	170 W
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Product color	Black

Weight and Dimensions

Depth	222 mm
Width	235 mm
Height	83.8 mm
Weight	2000 g
Package weight	4300 g
