InFocus IN32 Setup Instructions

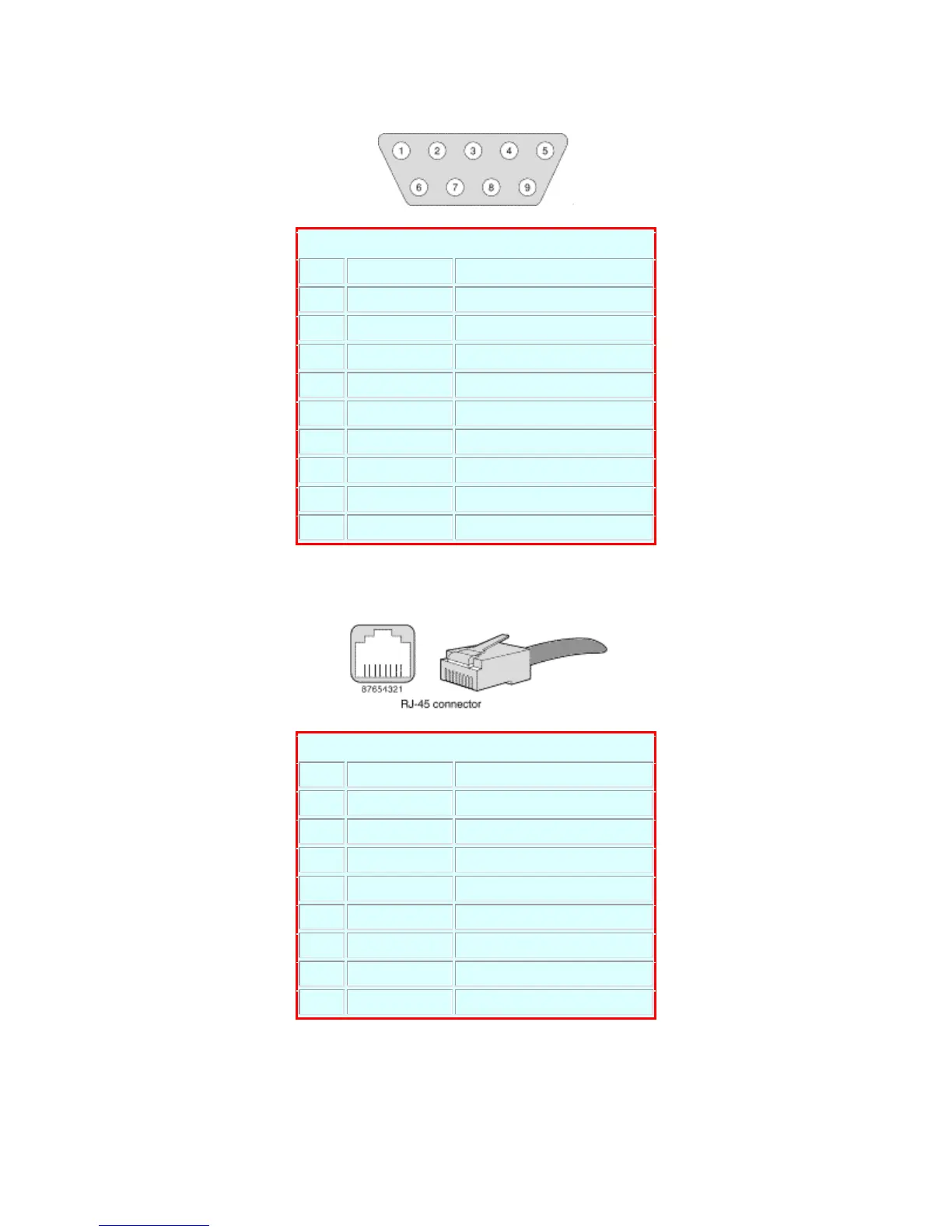

DB-9 Connector Pin Out
Pin # Signal Name Signal Description
1
CD Carrier Detect
2
RXD Receive Data
3
TXD Transmit Data
4
DTR Data Terminal Ready
5
GND Signal Ground / Common
6
DSR Data Set Ready
7
RTS Request To Send
8
CTS Clear To Send
9
RI Ring Indicator
RJ-45 Connector Pin Out
Pin # Signal Name Signal Description
1
RI Ring Indicator
2
DCD Carrier Detect
3
DTR Data Terminal Ready
4
GND Signal Ground / Common
5
RXD Receive Data
6
TXD Transmit Data
7
CTS Clear To Send
8
RTS Request To Send

InFocus IN32 Specifications

General

Number of colors	16.78 million colors
Vertical scan range	48 - 85 Hz
Horizontal scan range	15.625 - 85 kHz
Projection technology	DLP
Contrast ratio (typical)	1000:1
Screen size compatibility	32\
Projector native resolution	XGA (1024x768)
Display diagonal	0.7 \
Lamp type	SHP
Lamp power	200 W
Light source type	Lamp
Service life of light source	2000 h
I/O ports	2 Computer (DVI-M1 & VESA); 2 Video (S-Video 4-pin mini DIN & Composite RCA; 1 Audio (stereo RCA); 1 Serial Interface (RJ45)
Aspect ratio	4:3
Power supply type	90~265V @ 50-60Hz
Dimensions (WxDxH)	265 x 220 x 75 mm
Noise level	35 dB
Power consumption (typical)	260 W

Weight and Dimensions

Weight	2350 g
