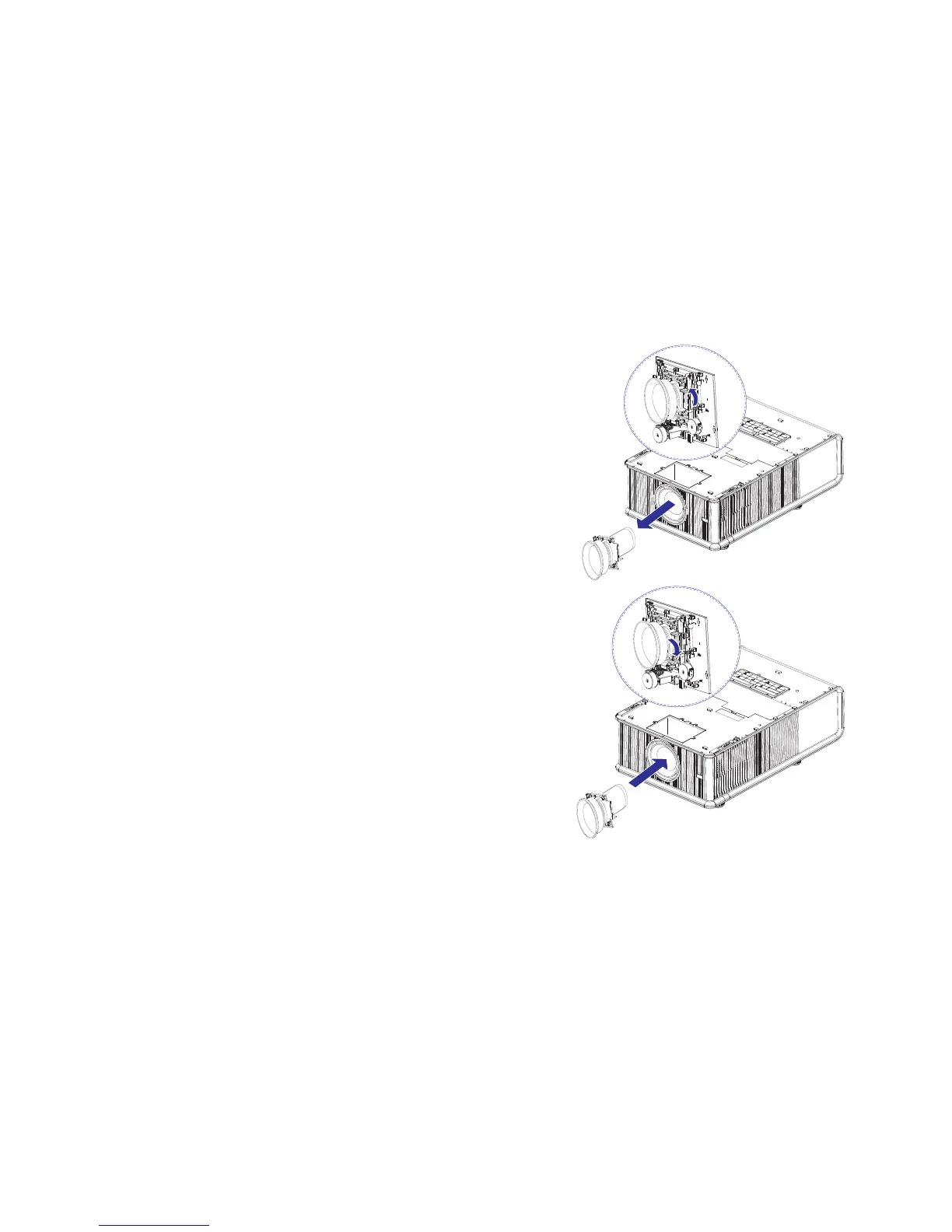

3 Remove the lens by:
(a) Pushing the release lever up to release lock
(b) Removing the lens through the front of the projector
4 Install the new lens by:
(a) Inserting the new lens into the projector, label side up, through the
front of the projector
(b) Aligning the alignment pins at the top of the lens retaining frame
and insert into the front of the engine.
(c) Pushing the release lever down to lock the lens in place.
5 Replace the lens door by securing the 4 screws.
6 Replace the top front cover by sliding it back.
7 The cover latches lock automatically.
