Connection20
Connecting an S-Video source device
Examine your Video source device to determine if it has an unused S-Video output
socket available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the
device.
To connect the projector to an S-Video source device:
1. Take an S-Video cable and connect one end to the S-Video output socket of
the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the
projector.
3. If you wish to make use the projector (mixed mono) speaker, take a suitable
audio cable and connect one end of the cable to the audio output sockets of
the video device, and the other end to the AUDIO socket of the projector.
Once connected, the audio can be controlled by the projector On-Screen
Display (OSD) menus. See "Audio Settings" on page 48 for details.

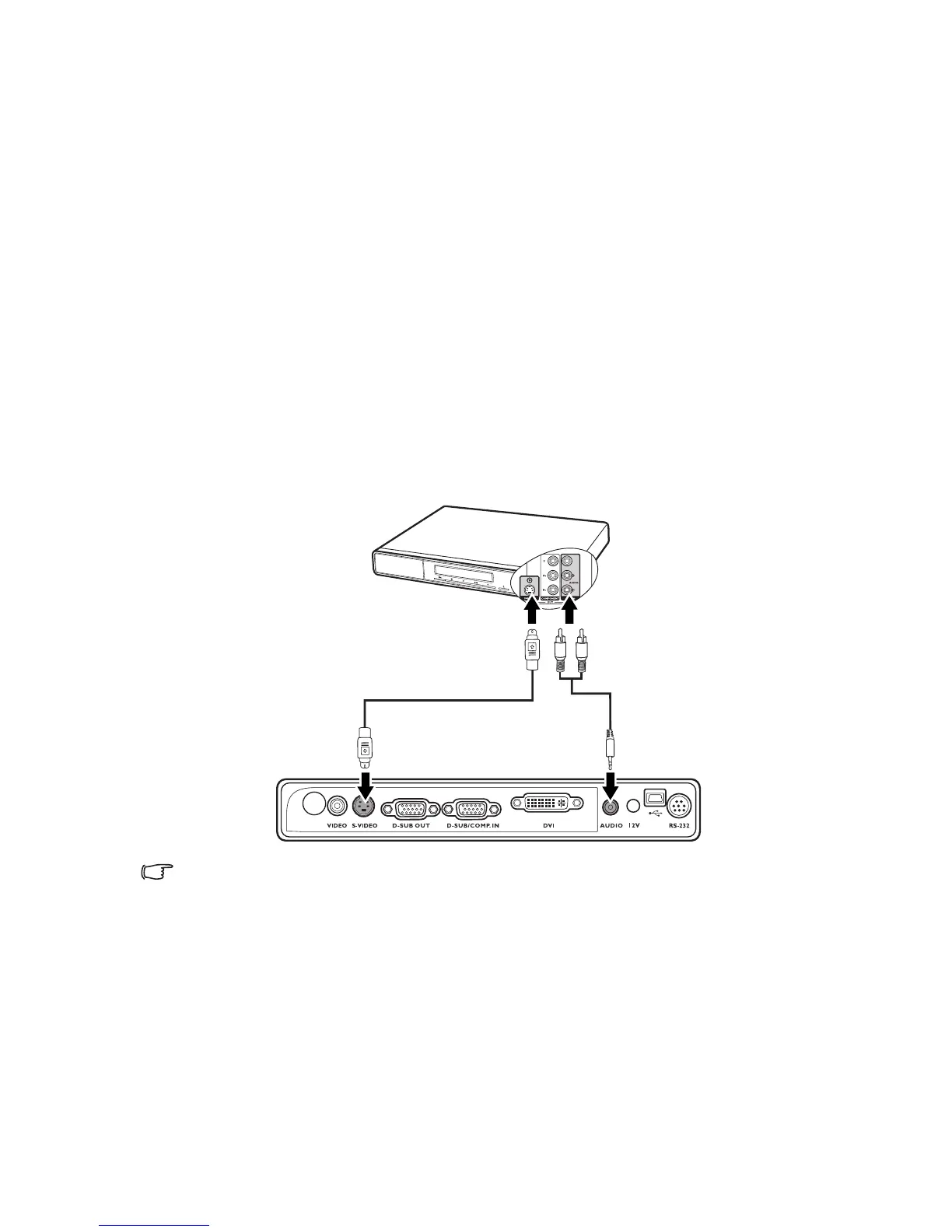

The final connection path should be like that shown in the following diagram:
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 16 for details.
• If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
• If you have already made a Component Video connection between the projector and this
S-Video source device using Component Video connections, you need not connect to this
device using an S-Video connection as this makes an unnecessary second connection of
poorer picture quality. See "Connecting Video source devices" on page 16 for details.
A/V device
Audio cableS-Video cable
