LP340/340B/350 Service Manual 14
Rear Bezel
The rear bezel (505-0637-xx) covers the rear of the projector. It helps secure the top and bottom cases
together. The front bezel fastens to the speaker/fan bracket inside the projector with one screw. The
InFocus nameplate (505-00668-xx) fastens to the rear bezel over the screw.

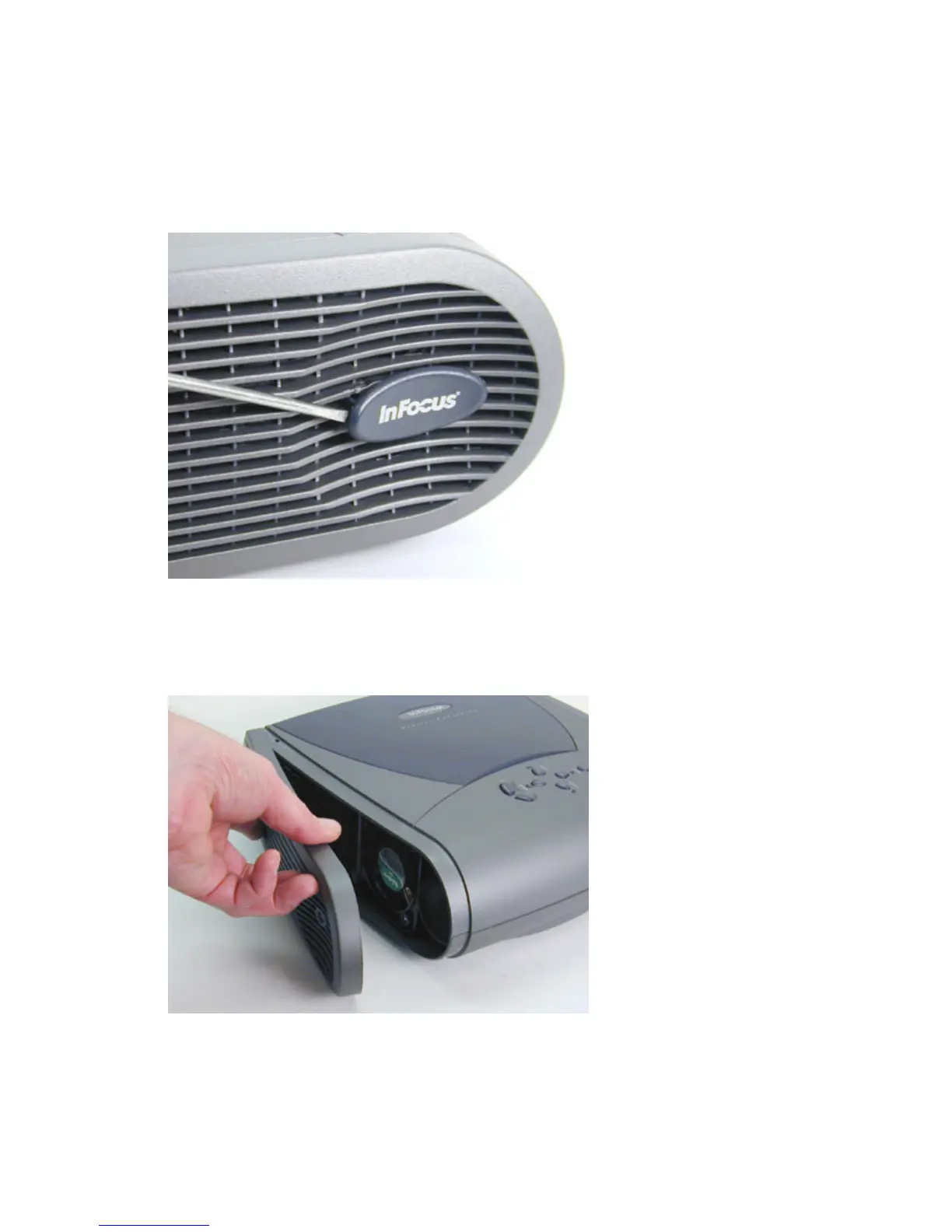

1 Use a small bladed screwdriver to pry the InFocus nameplate off of the rear bezel.
2 Use a T-10 Torx driver to remove the black M3x8 black Torx screw from beneath the nameplate.
3 Swing the front bezel away from the lens side so that the hinges under the side opposite the
screw disengage from the top and bottom cases.
