LP340/340B/350 Service Manual 28
Chassis and Attached Parts
The interior design of the LP340/340B/350 allows quick access to many parts. To attain lightness and
retain strength, the most delicate parts (such as the optical engine and power supplies) fasten directly to
the magnesium chassis (330-0602-xx).
You remove the chassis and these attached units from the top case as one piece. Then you can remove
and replace individual parts as needed.
WARNING! Make sure the power cord is not plugged into the unit when you begin working on the inside of the
projector.
1 Remove the following items:
Bottom case (see page 17)
Lamp module (see page 10)
Speaker/fan assembly (see page 24)

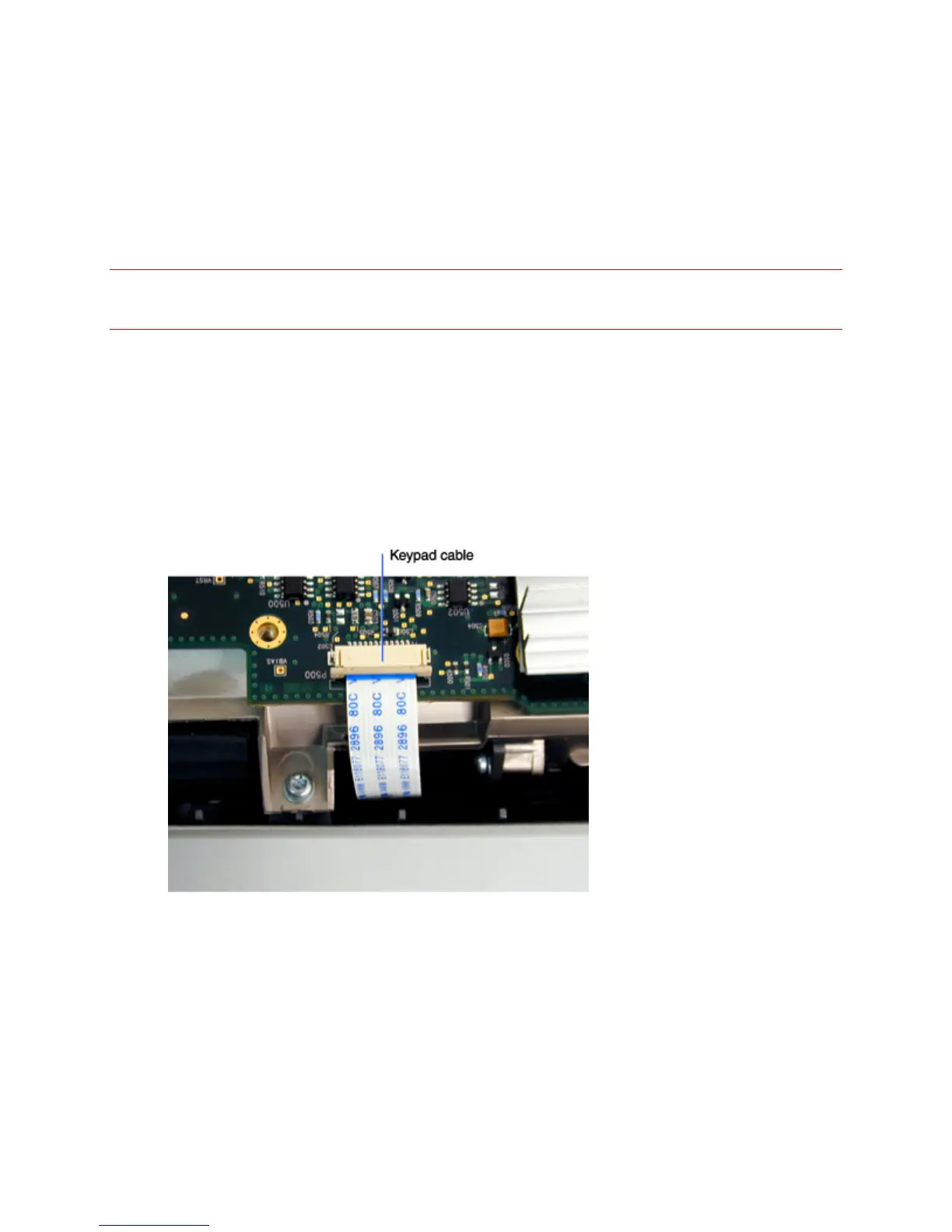

2 Remove the keypad cable from the ZIF connector on the controller ECA. The cable connects just
in front of the DMD.
