55

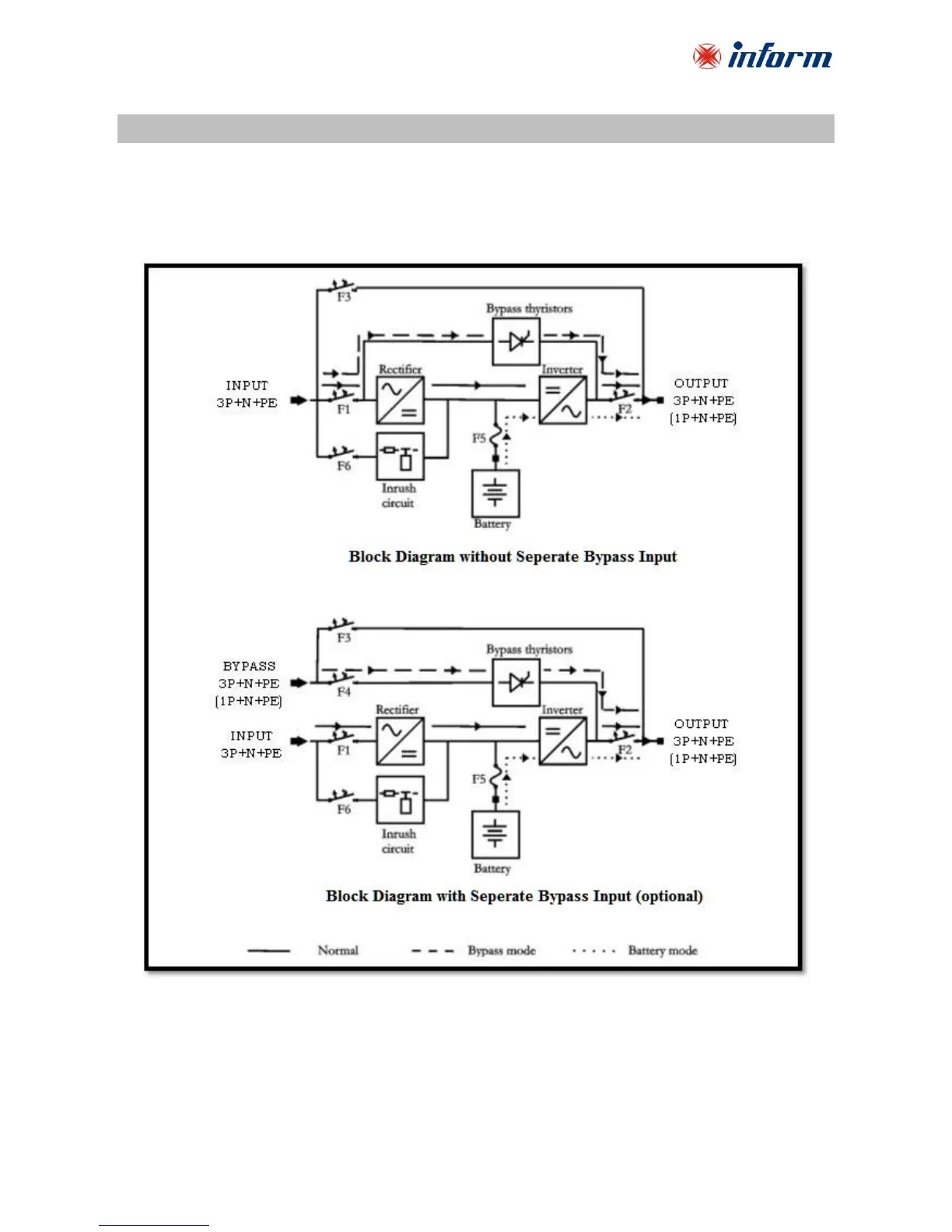

Appendix-2: Description of UPS and Block Diagram
There are three operation modes, which differ in the path of the energy flow.
UPS block diagrams and the energy flow path in each operation mode is shown below:
Separate Bypass version is optional.
For 3Phase Input - 1Phase Output UPS; Output L1-L2-L3 Terminals are short-circuited.
