inform Pyramid DSP T User Manual

10

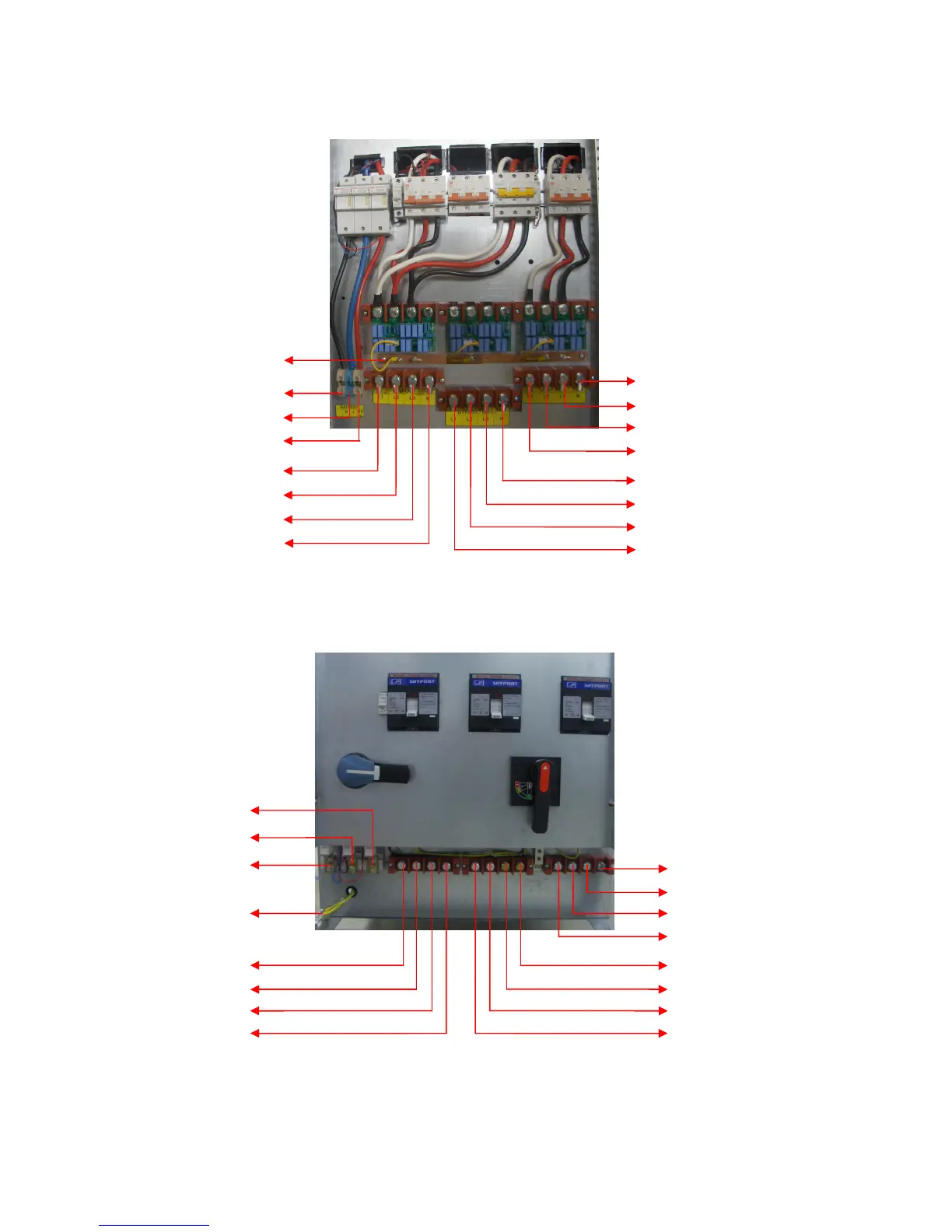

80-100kVA UPS Terminal Connections
120kVA UPS Terminal Connections
PE
BATTERY (
-
)
BATTERY NEUTRAL
BATTERY
(+)
INPUT
L1
INPUT NEUTRAL
INPUT
L2
INPUT
L3
OUTPUT NEUTRAL
OUTPUT L3
SPLITT BYPASS NEUTRAL
SPLITT BYPASS L3
OUTPUT L2
OUTPUT
L1
SPLITT BYPAS
S L2
SPLITT BYPASS L1
OUTPUT NEUTRAL
OUTPUT L3
OUTPUT L2
OUTPUT
L1
SPLITT BYPASS NEUTRAL
SPLITT BYPASS L3
PE
BATTERY (
-
)
BATTERY NEUTRAL
BATTERY
(+)
INPUT
L1
INPUT NEUTRAL
INPUT L2
INPUT L3
SPLITT BYPASS L2
SPLITT BYPASS L1
