inform Pyramid DSP T User Manual

9

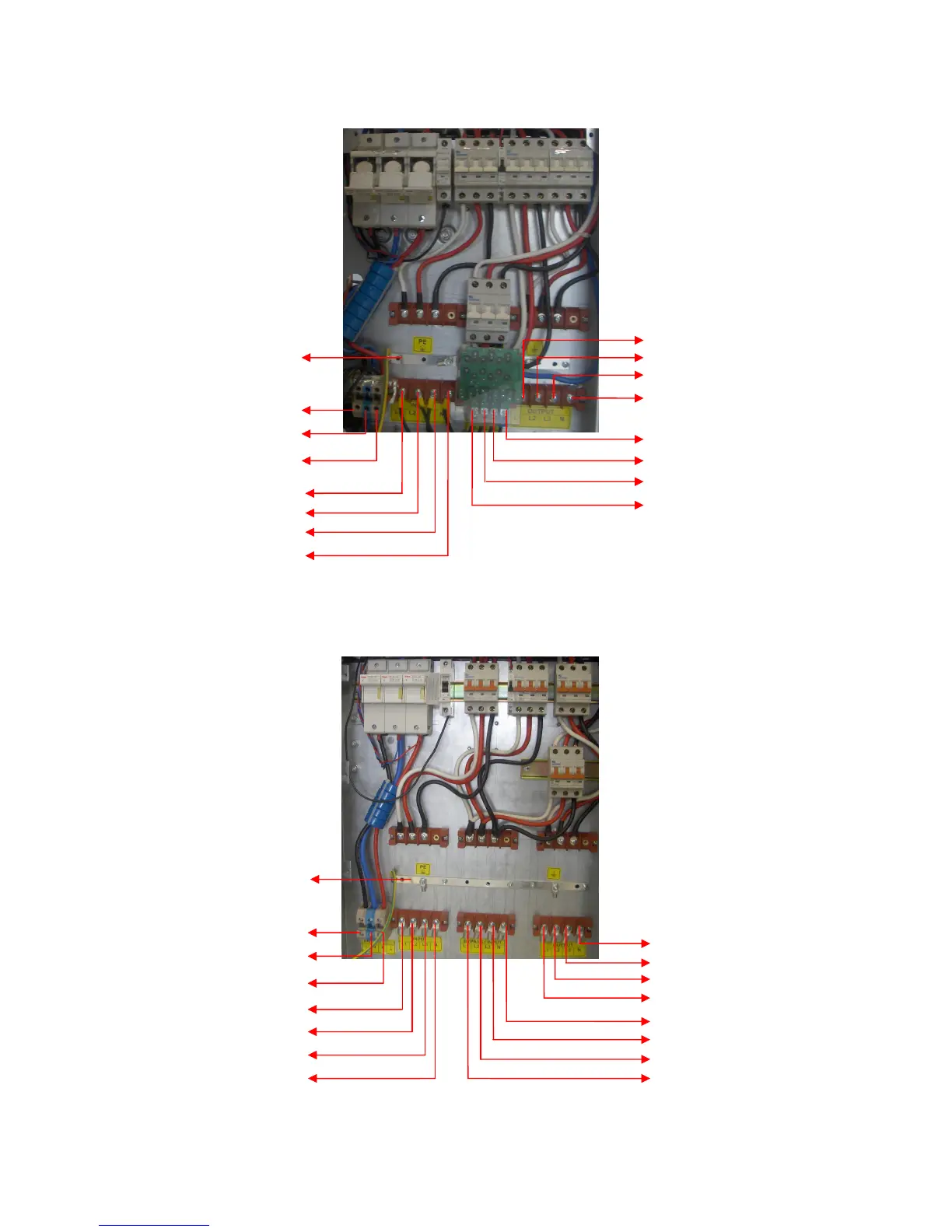

10-15-20-30kVA (3ph-3ph) UPS Terminal Connections
40-60kVA UPS Terminal Connections
BATTERY (
-
)
BATTERY
NEUTRAL
BATTERY
(+)
PE
INPUT
L1
INPUT
L2
INPUT
L3
INPUT
NEUTRAL
OUTPUT
L1
OUTPUT
L2
OUTPUT
L3
OUTPUT NEUTRAL
SPLITT
-
BYPASS NEUTRAL
SPLITT BYPA
SS L3
SPLITT BYPASS
L2
SPLITT BYPASS L1
PE
BATTERY (
-
)
BATTERY
NEUTRAL
BATTERY
(+)
IN
PUT
L1
INPUT
L2
INPUT
L3
INPUT NEUTRAL
SPLITT BYPASS NEUTRAL
SPLITT BYPASS L3
SPLITT BYPASS L2
SPLITT BYPASS L1
OUTPUT NEUTRAL
OUTPUT L3
OUTPUT L2
OUTPUT
L1
