inform Pyramid Plus - 3.4.3 Battery Installation Diagrams

288713405
13
8. Connect the battery circuit breaker’s “UPS(+) ⇒ BATT(+)” and “UPS (-) ⇒ BATT(-)” Ports to the
battery group connection terminals at the UPS cabinet.
9. Connect the shielded control cable between the UPS and the battery circuit breaker as in the
following.
Battery circuit Inside of the UPS
Breaker box
1.....................1 ITF3 Board
BAC60 Board 2.....................2 BATT. CB
CN1 3.....................3 CN3

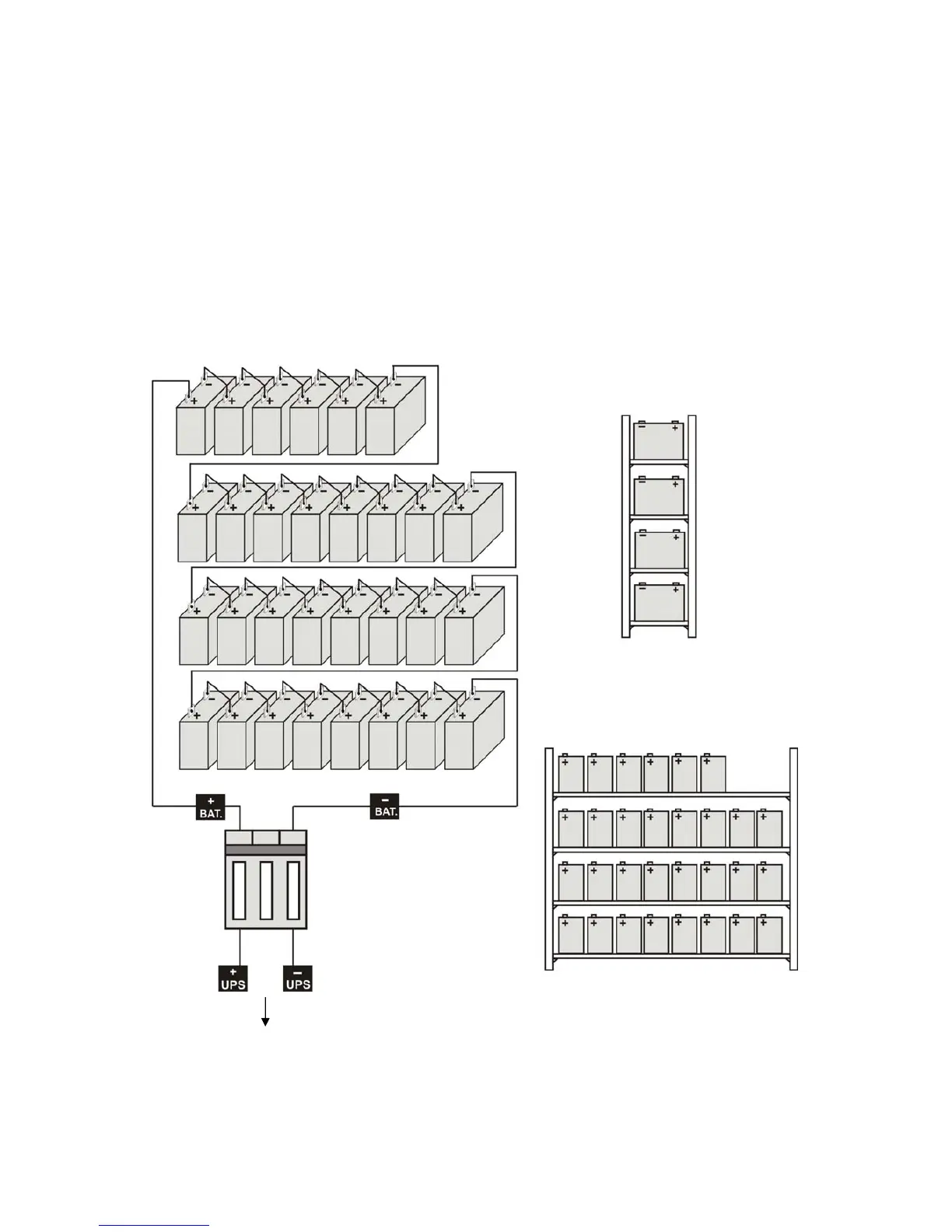

Fi
g
ure 3-3-a UPS Battery Group Connection
(With Battery Fuse)
To UPS Cabinet
Battery
Fuse
