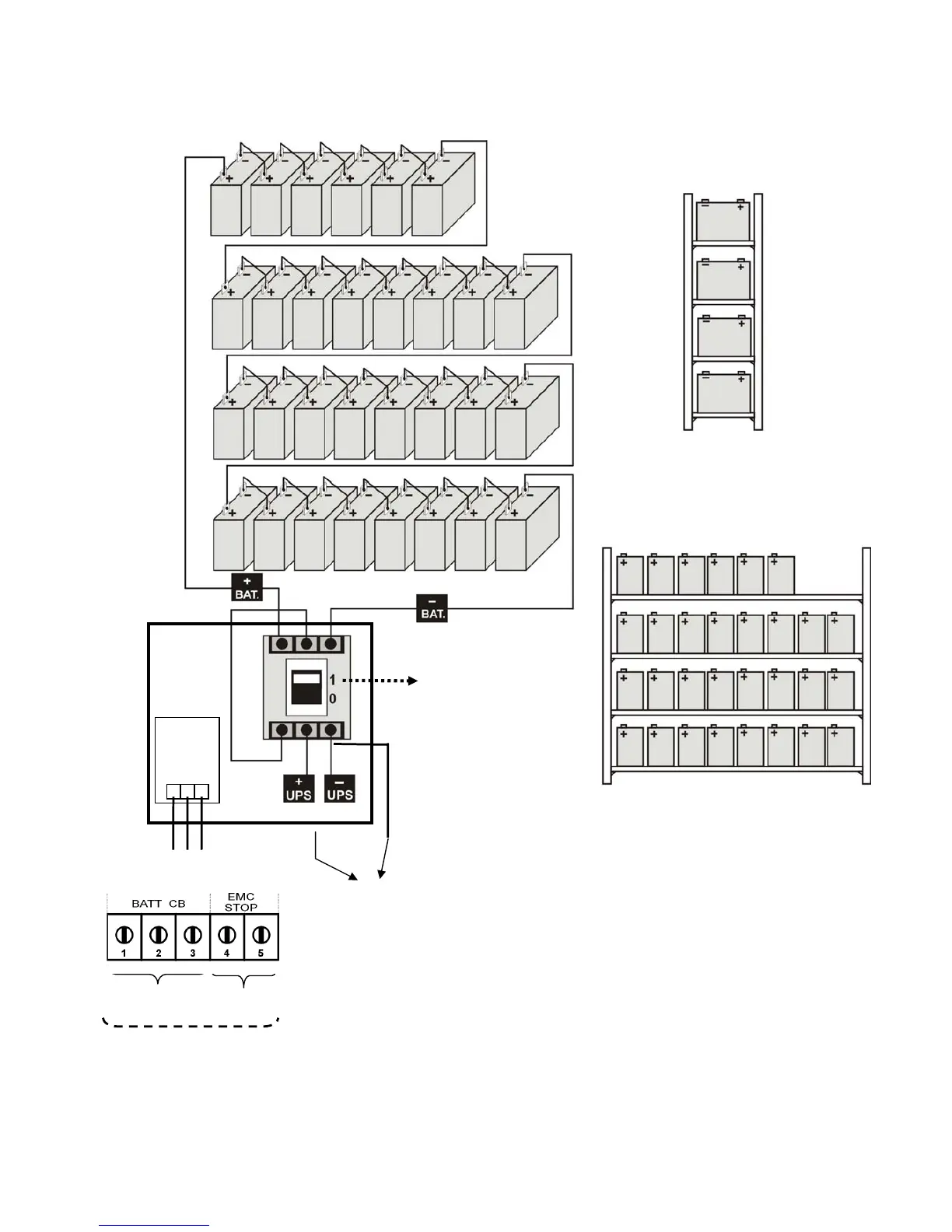

Figure 3-3-b UPS Battery Group Connection
(With Battery Circuit Breaker)
(OPTIONAL)
To UPS
Cabinet
Control
Cable
Electronically
Controlled
Battery Circuit
Breaker
BAC60
1 2 3
CN1
To ITF3
CN3
Battery Circuit
Breaker Input
Emergency
Stop
