2.2 Rear panel view
E3 Performance 800/1100/1500 RT IEC
E3 Performance 800/1100/1500 RT NEMA


E3 Performance 2000 RT IEC
E3 Performance 2000 RT NEMA

E3 Performance 2500/3000 RT IEC
E3 Performance 2500/3000 RT NEMA


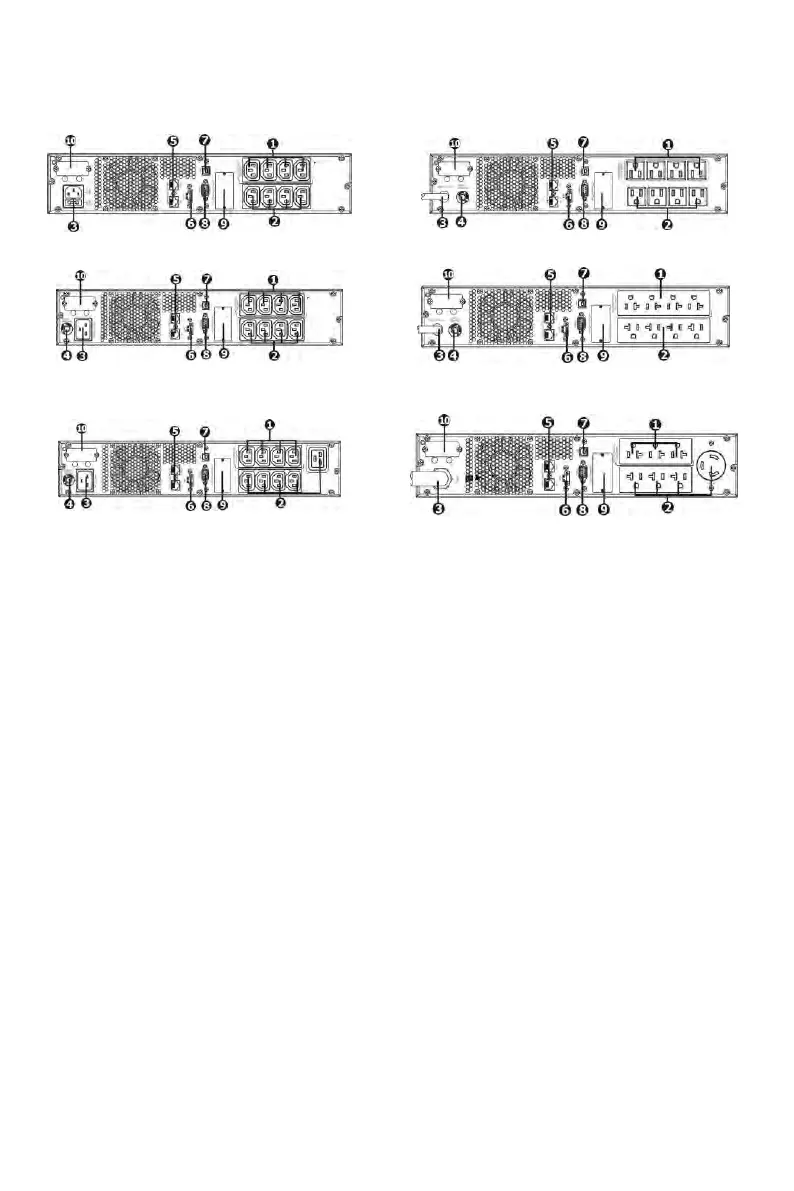

Diagram 1 : E3 Performance Rear Panel
1 - Programmable outlets: connect to non-critical loads.
2 - Standard output outlets: connect to mission-critical loads.
3 - AC input.
4 - Input circuit breaker.
5 - Tel/Network/Fax/Modem surge protection.
6 - Emergency Power Off function connector (EPO).
7 - USB communication port.
8 - RS-232 communication port.
9 - SNMP intelligent slot.
10 - External battery connector
