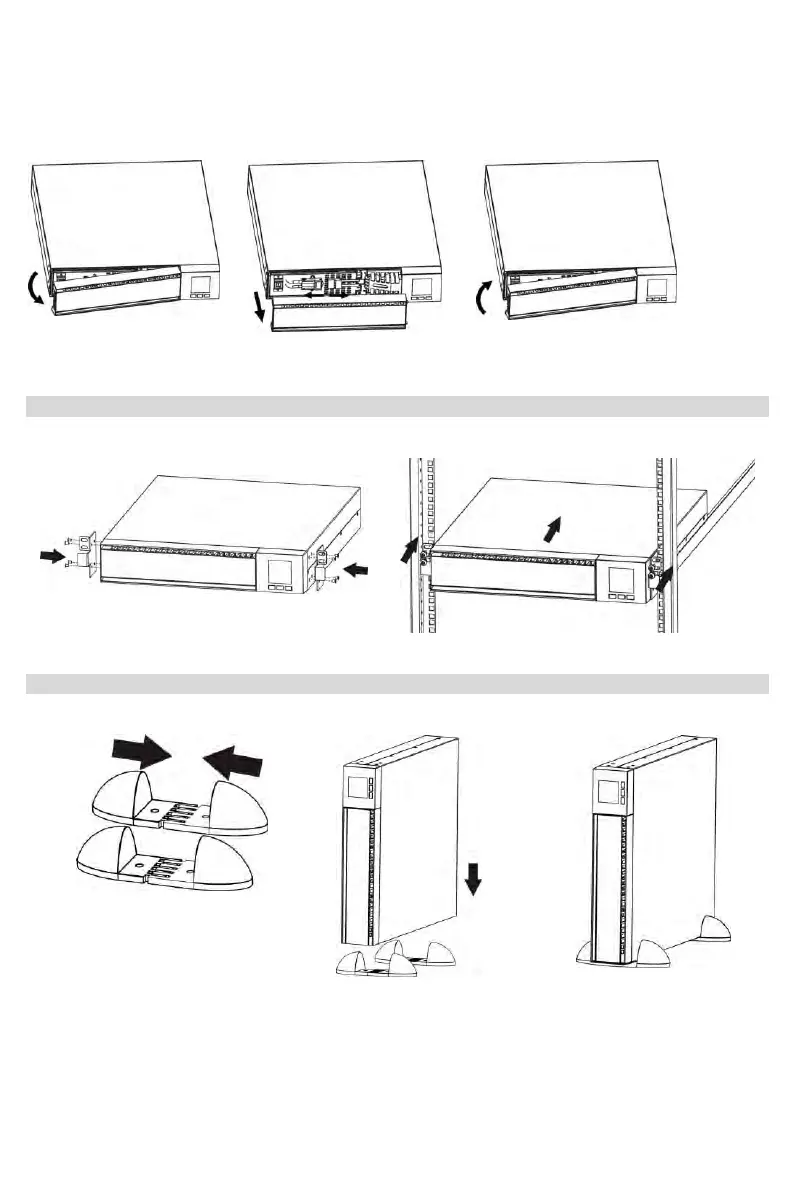

2.3 Install the UPS
For safety consideration, the E3 Performance is shipped without connecting battery wires.
Before installing the UPS, please follow the steps below to re-connect battery wires.
 Step 1
 Step 2
 Step 3
Remove front panel.
Connect the AC input and
re-connect battery wires.
Put the front panel back to the
unit.
Rack-mount installation
 Step 1
 Step 2
Tower installation
 Step 1
 Step 2
 Step 3
2.4 Setup the UPS
 Step 1 - UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension
cords.
