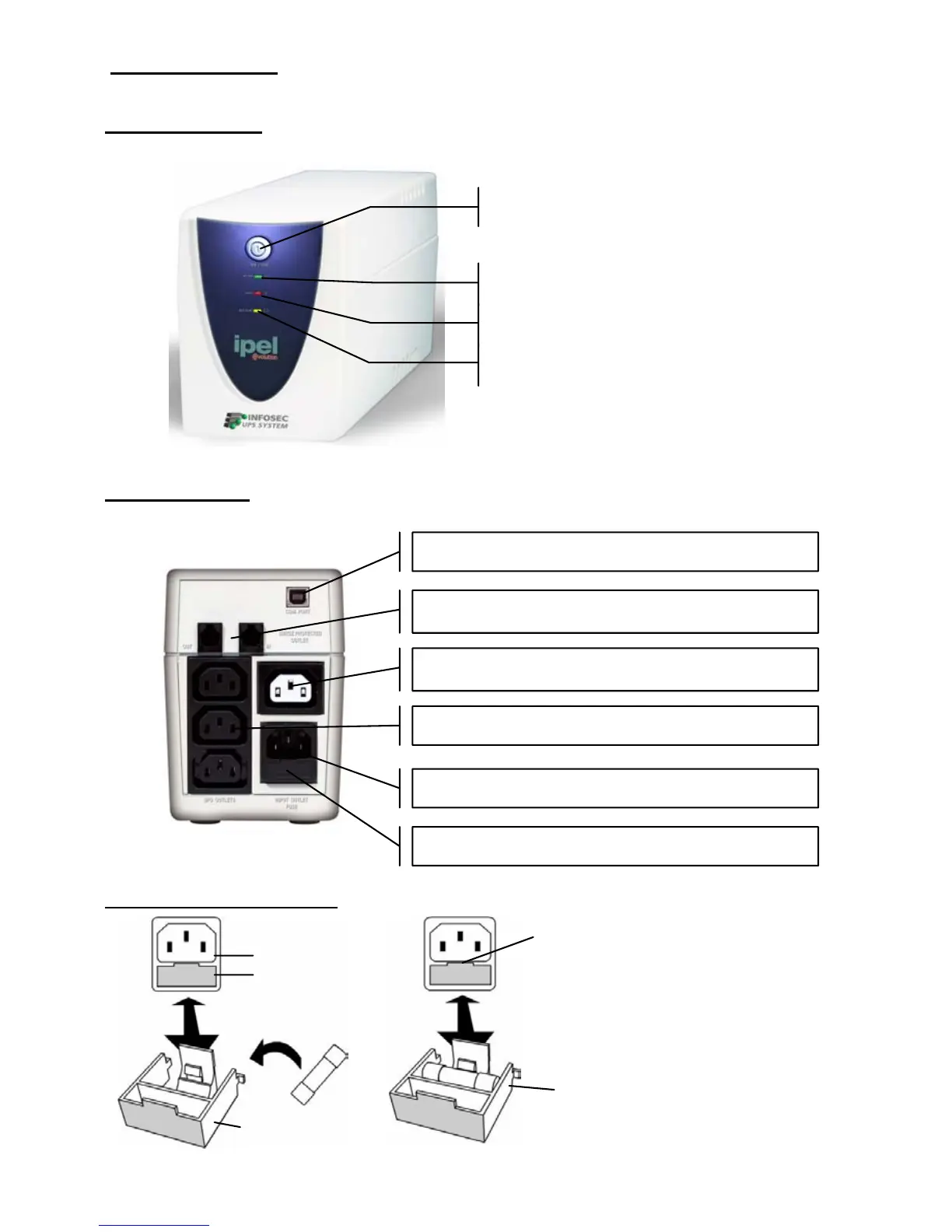

6. DESCRIPTION
FRONT PANEL
BACK PANEL
FUSE REPLACEMENT
Replacement
fuse
AC input socket
fuse
Protection fuse
in this place
Insert a screwdriver in the
slot to open the slide
On / Off switch
Green led lighting : AC mode
Red led lighting : Fault
Yellow led lighting : Battery mode
USB communication port
RJ11 connectors (Modem/Phone Line Surge)
Surge protected outlet for auxiliary peripheral
3
p
rotected UPS outlets
Input socket
Fuse
