Integration guide iUC150B & iUC160B
900021059 R11 000 04/0416
Copyright© 2015 Ingenico
All rights reserved
44
6_3_2 Installing the iUC160B product

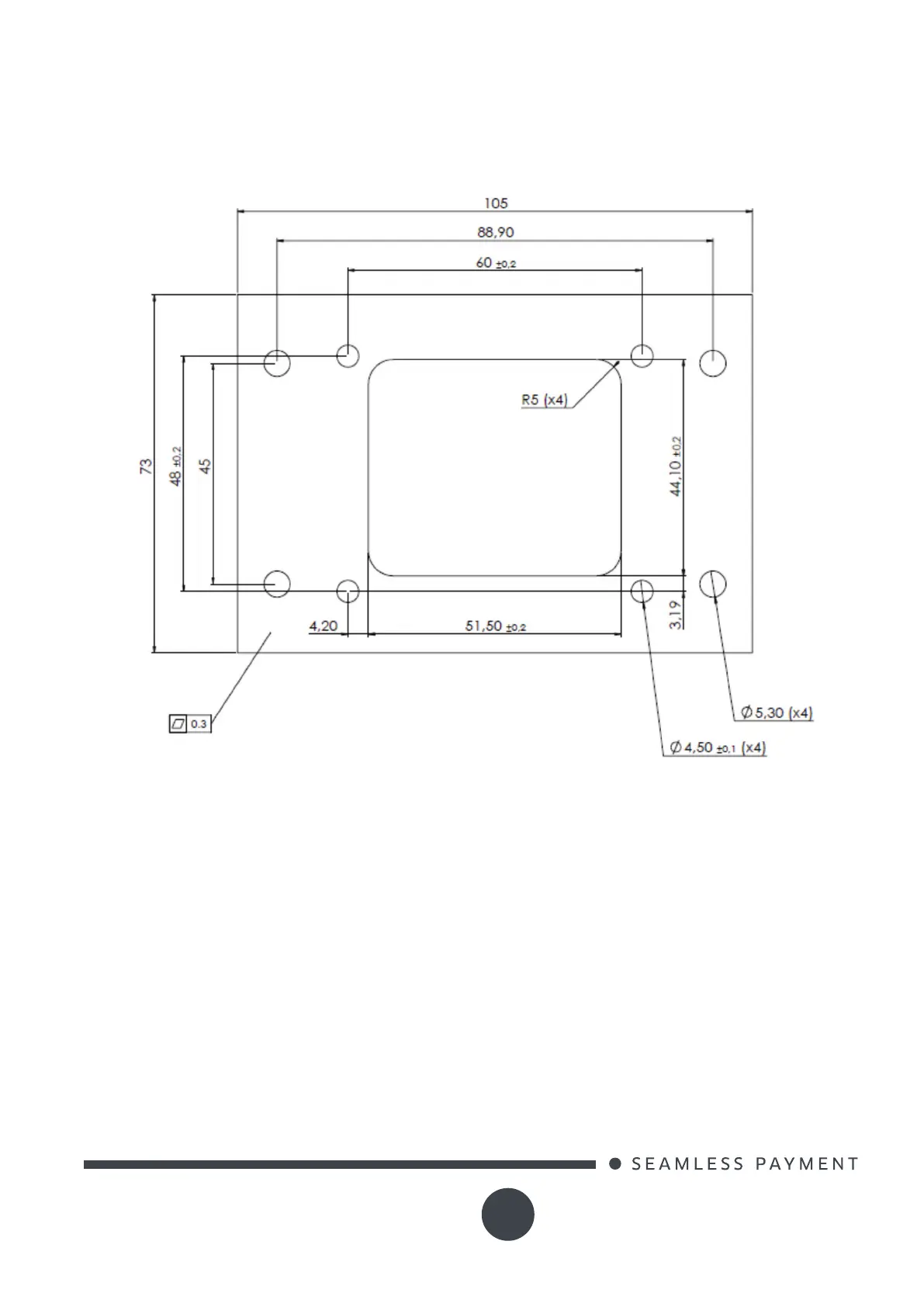

EVA EPS compact mounting plate (front side)
Device requires standards hexagonal nuts for integration into a kiosk.
Screw the 4 nuts M4 with a 1.0-1.2 N.m torque. It is recommended to use washers.
Product requires four M4 screws.
Length of screw is depending of panel thickness. See picture below.
Torque is 0.6-0.75 N.m
Surface must be at and without burrs
No sharp edge
