Ingersoll-Rand INTELLISYS SSR Series - Original Intellisys Membrane Schematic

48
Mod/ACS 1-8
Select Up Arrow 1-7
Setpoint Down Arrow 1-6
On/Offline 2-8
Select Down Arrow 2-7
Set 2-6
Unload 3-8
Reset 3-7
Setpoint Up Arrow 3-6
Start 4-8
Unloaded Stop 4-7
Test 4-6

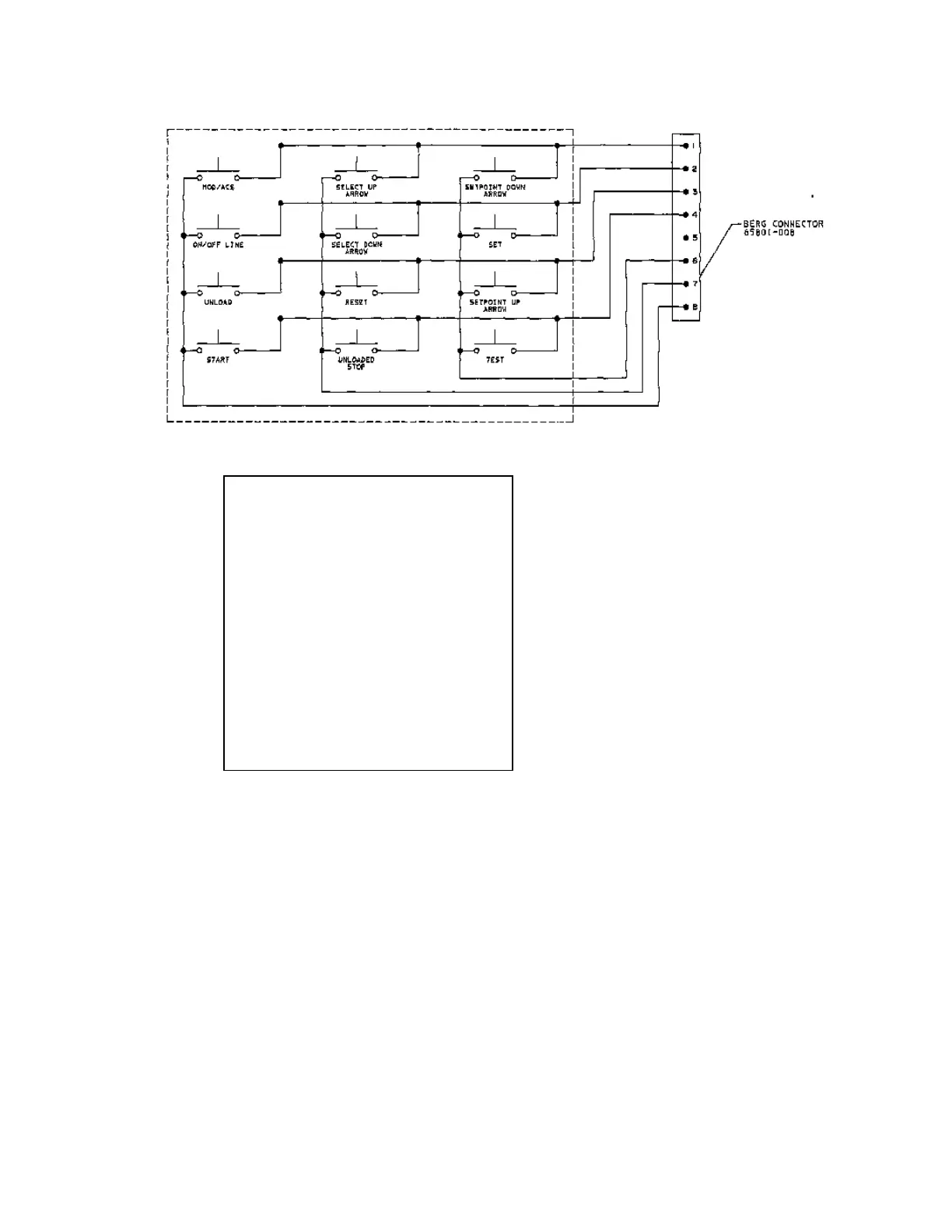

Figure 3. SSR Original Intellisys Membrane Schematic
