47

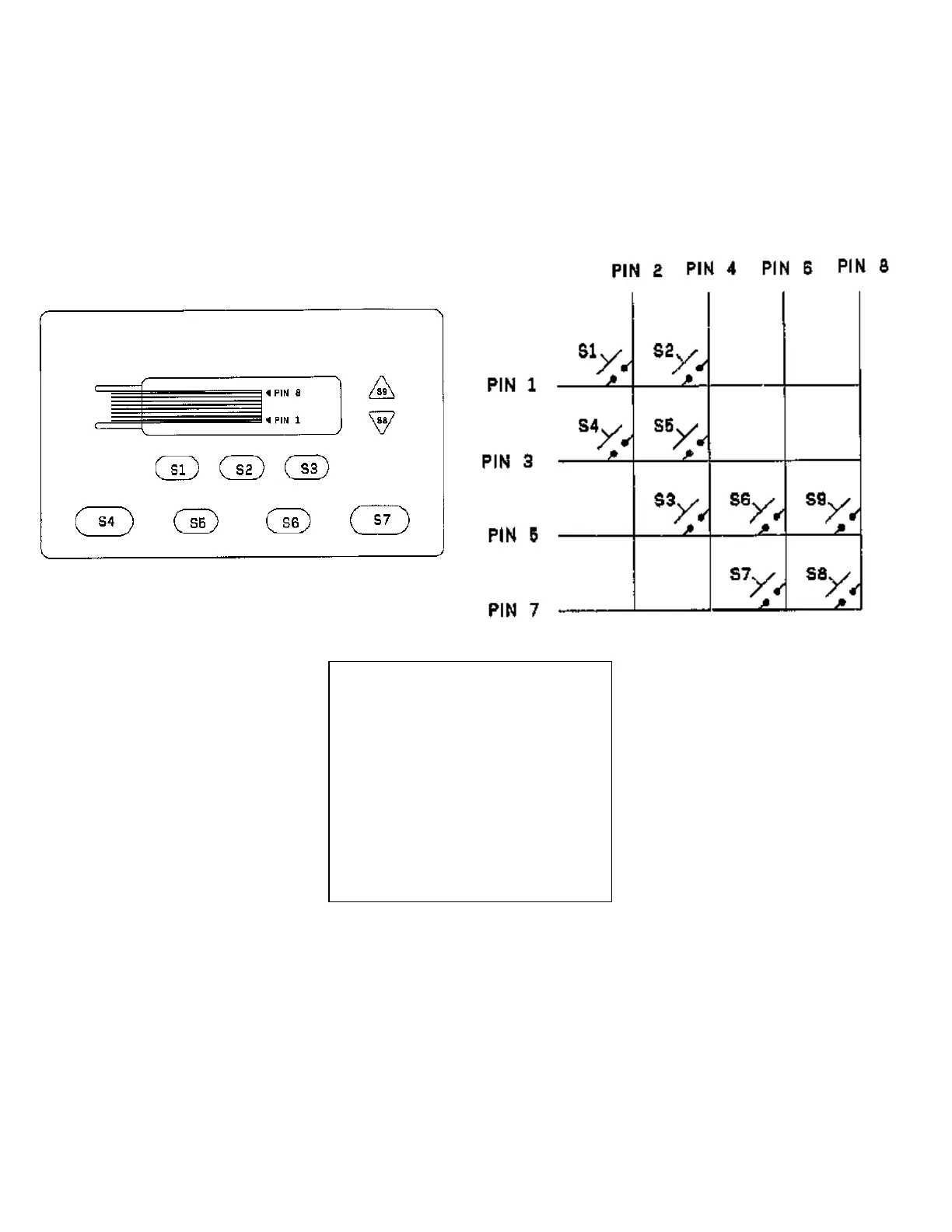

Figure 2. SG Membrane Schematic
S1 1-2
S2 1-4
S3 5-4
S4 Start 3-2
S5 Unload 3-4
S6 Load 5-6
S7 Unloaded Stop 7-6
S8 Down Arrow 7-8
S9 Up Arrow 5-8
