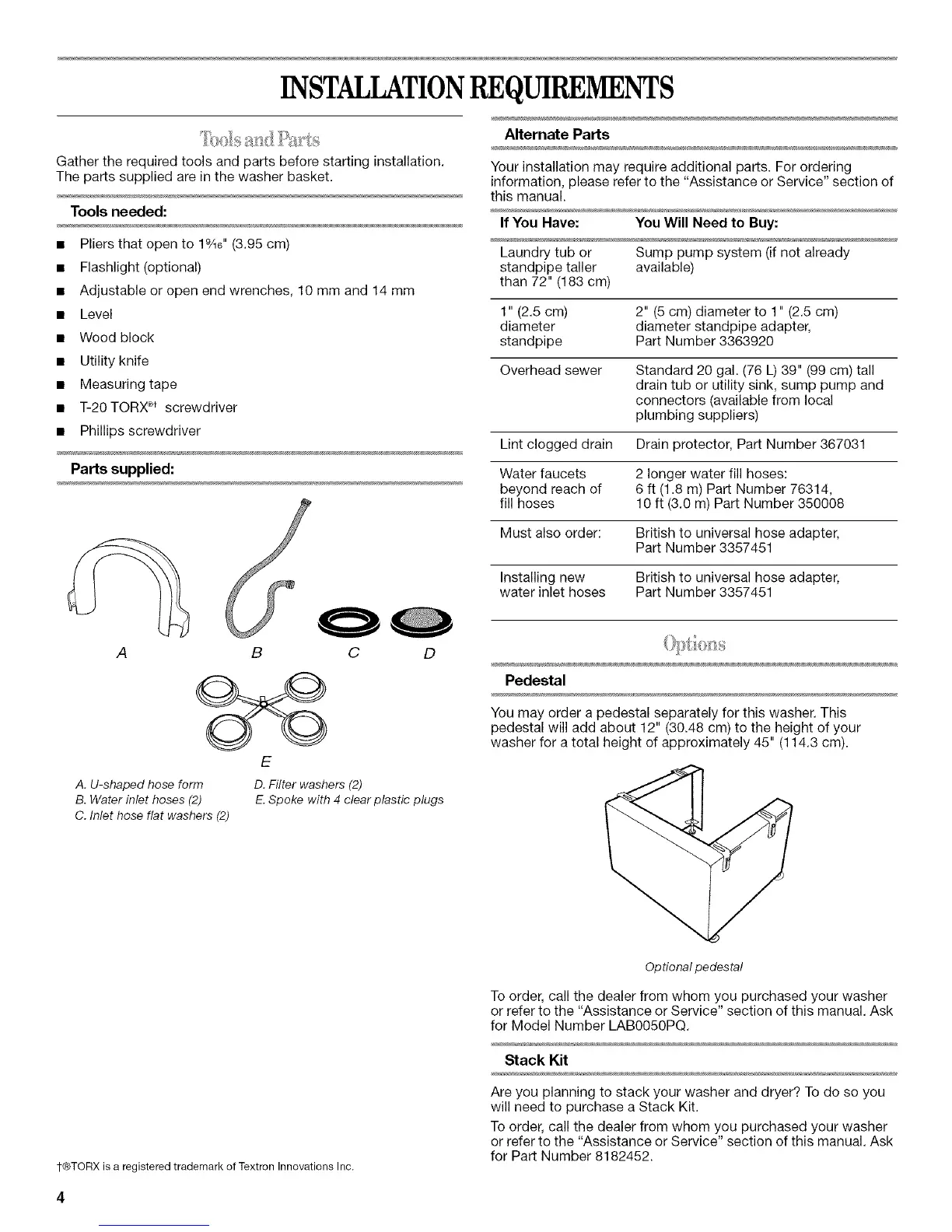

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Tools needed:
• Pliers that open to 1%6" (3.95 cm)
• Flashlight (optional)
• Adjustable or open end wrenches, 10 mm and 14 mm
• Level
• Wood block
• Utility knife
• Measuring tape
• T-20 TORX®t screwdriver
• Phillips screwdriver
Parts supplied:
A
O
C D
E
A. U-shaped hose form D.Filter washers (2)
B. Water inlet hoses (2)
C.Inlet hose flat washers (2)
E. Spoke with 4 clear plastic plugs
Alternate Parts
Your installation may require additional parts. For ordering
information, please refer to the "Assistance or Service" section of
this manual.
If You Have: You Will Need to Buy:
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 72" (183 cm)
1" (2.5 cm) 2" (5 cm) diameter to 1" (2.5 cm)
diameter diameter standpipe adapter,
standpipe Part Number 3363920
Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall
drain tub or utility sink, sump pump and
connectors (available from local
plumbing suppliers)
Lint clogged drain Drain protector, Part Number 367031
Water faucets 2 longer water fill hoses:
beyond reach of 6 ft (1.8 m) Part Number 76314,
fill hoses 10 ft (3.0 m) Part Number 350008
Must also order: British to universal hose adapter,
Part Number 3357451
Installing new British to universal hose adapter,
water inlet hoses Part Number 3357451
Pedestal
You may order a pedestal separately for this washer. This
pedestal will add about 12" (30.48 cm) to the height of your
washer for a total height of approximately 45" (114.3 cm).
1-®TORX is a registered trademark of Textron Innovations Inc.
Optional pedestal
To order, call the dealer from whom you purchased your washer
or refer to the "Assistance or Service" section of this manual. Ask
for Model Number LAB0050PQ.
Stack Kit
Are you planning to stack your washer and dryer? To do so you
will need to purchase a Stack Kit.
To order, call the dealer from whom you purchased your washer
or refer to the "Assistance or Service" section of this manual. Ask
for Part Number 8182452.
