InHand ER605 - Ping; Traceroute; Packet Capture; Log Server

InHand ER605 User Manual
47
13.8.1 Ping
The ping service is used to test the connectivity between the router and external networks through the
Internet Control Message Protocol (ICMP). Enter any domain name or IP address in the Target field, and
then click Start to test the connectivity with this target.

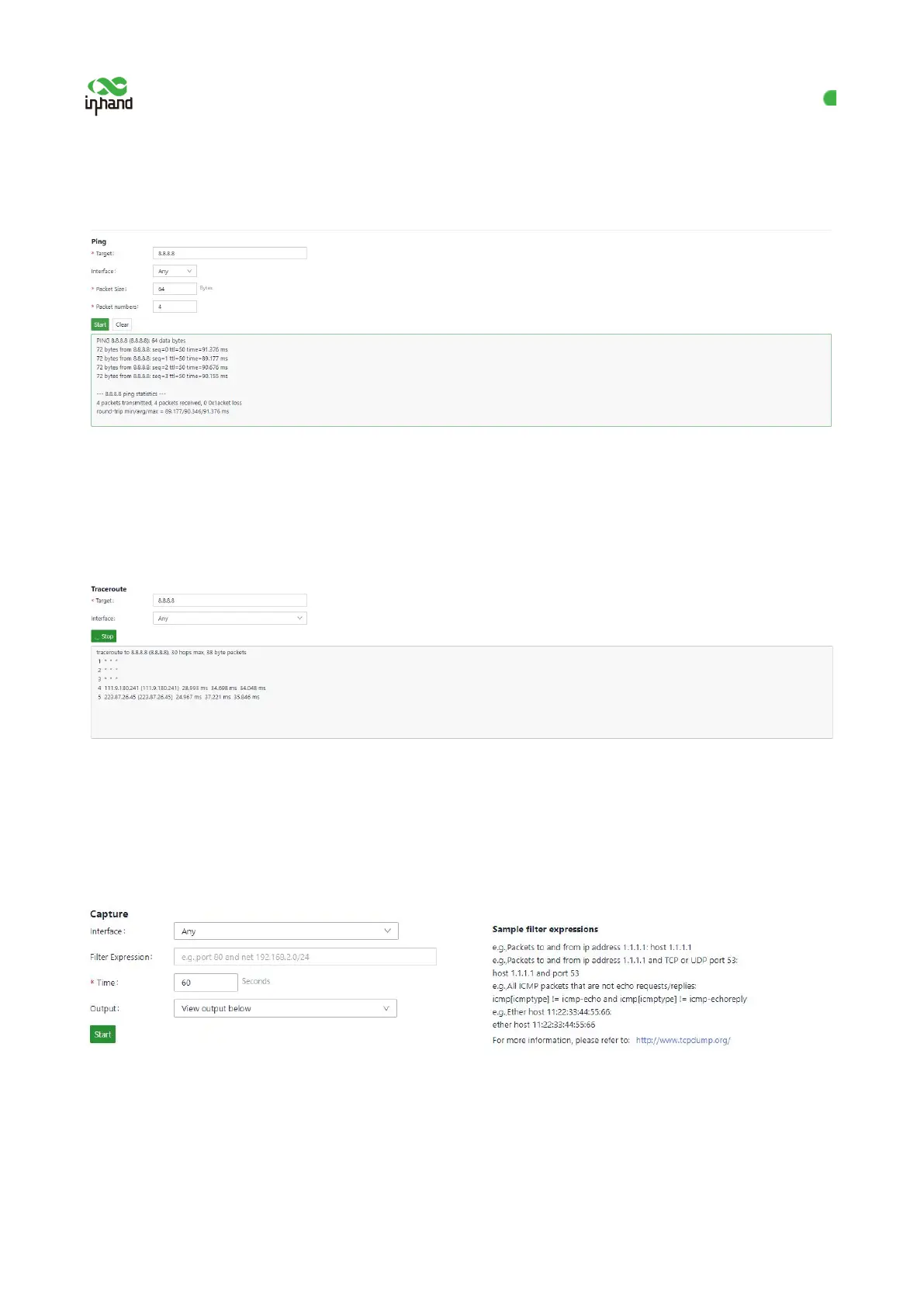

Figure 13-8-1 Ping
13.8.2 Traceroute
Enter the IP address of the target host, select an interface, and then click Start to test the route to the
destination IP address.
Figure 13-8-2 Traceroute
13.8.3 Packet Capture
You can capture data packets on a specified interface. By selecting an option from the Output drop-down
list, you can view information about the captured data packets or export the information to your PC.
Figure 13-8-3 Packet Capture
13.9 Log Server
