Inkbird ITC-2000 - Wiring Diagram; ITC-2000-110 V Wiring; ITC-2000-220 V Wiring

ITC-2000 User Manual
Inkbird Tech. Co., Ltd. www.ink-bird.com
5

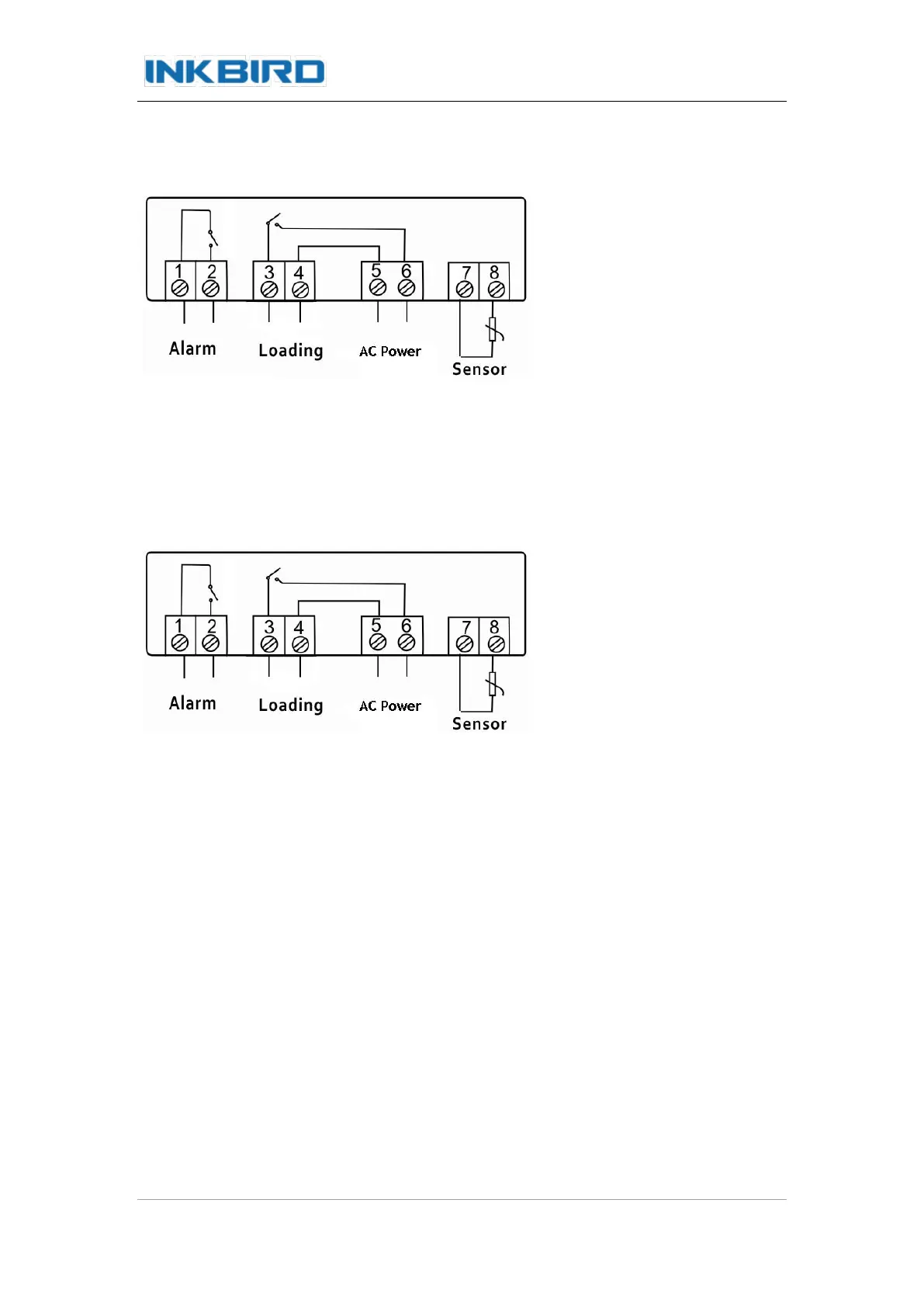

3. Wiring Diagram
3.1 ITC-2000-110V
Note:
 Strictly distinguish interface of relay,sensor and power
 Strictly distinguish connection of sensor and power
 Sensor down-lead and power wire should be kept a proper distance
3.2 ITC-2000-220V
Note:
 Strictly distinguish interface of relay,sensor and power
 Strictly distinguish connection of sensor and power
 Sensor down-lead and power wire should be kept a proper distance
