BV100 Operations Manual
3 GENERAL DESCRIPTION
The BV50 Bill Acceptor is a compact bill-validating machine suitable for
most money machines. It will accept up to 16 different denominations of
bills in the serial control mode. The BV50 is designed for easy installation
in most machines with a choice of interface protocols as described in
chapter 4.3 - Protocols.

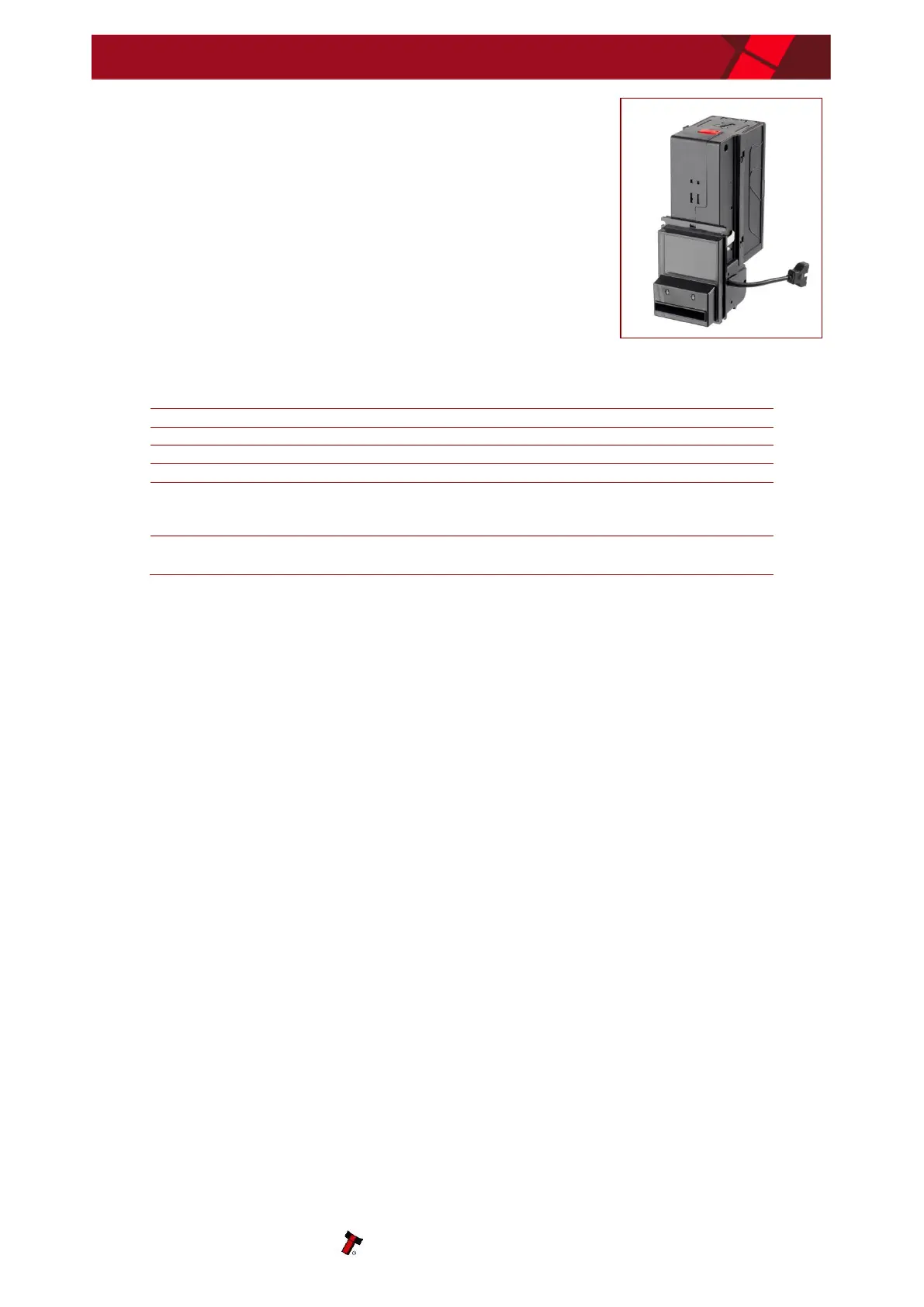

Figure 1 - The BV50 bill acceptor
Currency
The BV50 Bill Acceptor leaves the factory pre-set to at least one currency so that it is ready for immediate
installation. If it is required to change the currency dataset this may be done using the PC based Validator
Management software or with the DA3 Validator Programming System, see chapter 5 - Reprogramming the
BV50 for more details.
New currencies and applications are being tested all the time, please refer to our web site or contact your
local office for information concerning specific currencies if they are not already included on our approved
list.
Cash Box
Various size cash boxes are available for the BV50. The standard cash box will hold approximately 300
bills. Cash box spacers can be added at the factory to increase the capacity. Each spacer will add an extra
200 note capacity with a maximum of 3 spacers. This gives a maximum capacity of approximately 900
bills. (see Appendix C – Cash Box Information for more details).
The Required cash box capacity must be stated at the time of ordering. If no capacity is specified, the
standard cashbox will be delivered.
Note: cash box spacers can only be added at our factory, and once fitted cannot be removed.
Mounting
The BV50 is designed to easily mount onto existing mounting studs in many OEM machines. See drawing
number GA800 in Appendix B – Dimension Drawings for location and dimensions of the mounting lugs.
Disconnect all power to the machine and mount the BV50 onto the mounting studs. Connect the interface
cable from the machine to the BV50 and apply power to the machine.
Different harnesses are available depending on the required mode of operation (see chapter 4.2.4 -
Hardware Options).
Bill sizes accepted
Width: 66mm, Length: 156mm
Weight
0.85kg
Bill to bill time
3 seconds
Escrow
Single bill
Cash box capacity
300 used bills for standard cash box.
Up to a maximum capacity of 900 bills.
Interface
SSP, Parallel, Pulse, Binary, ccTalk, MDB.
(Contact ITL for other interface availability)
