4 MACHINE INTERFACES
4.1 BEZEL LED’s
The Bezel LED’s are used to indicate a variety of status signals as described below in Table 5 - Bezel LED
Diagnostic Codes.

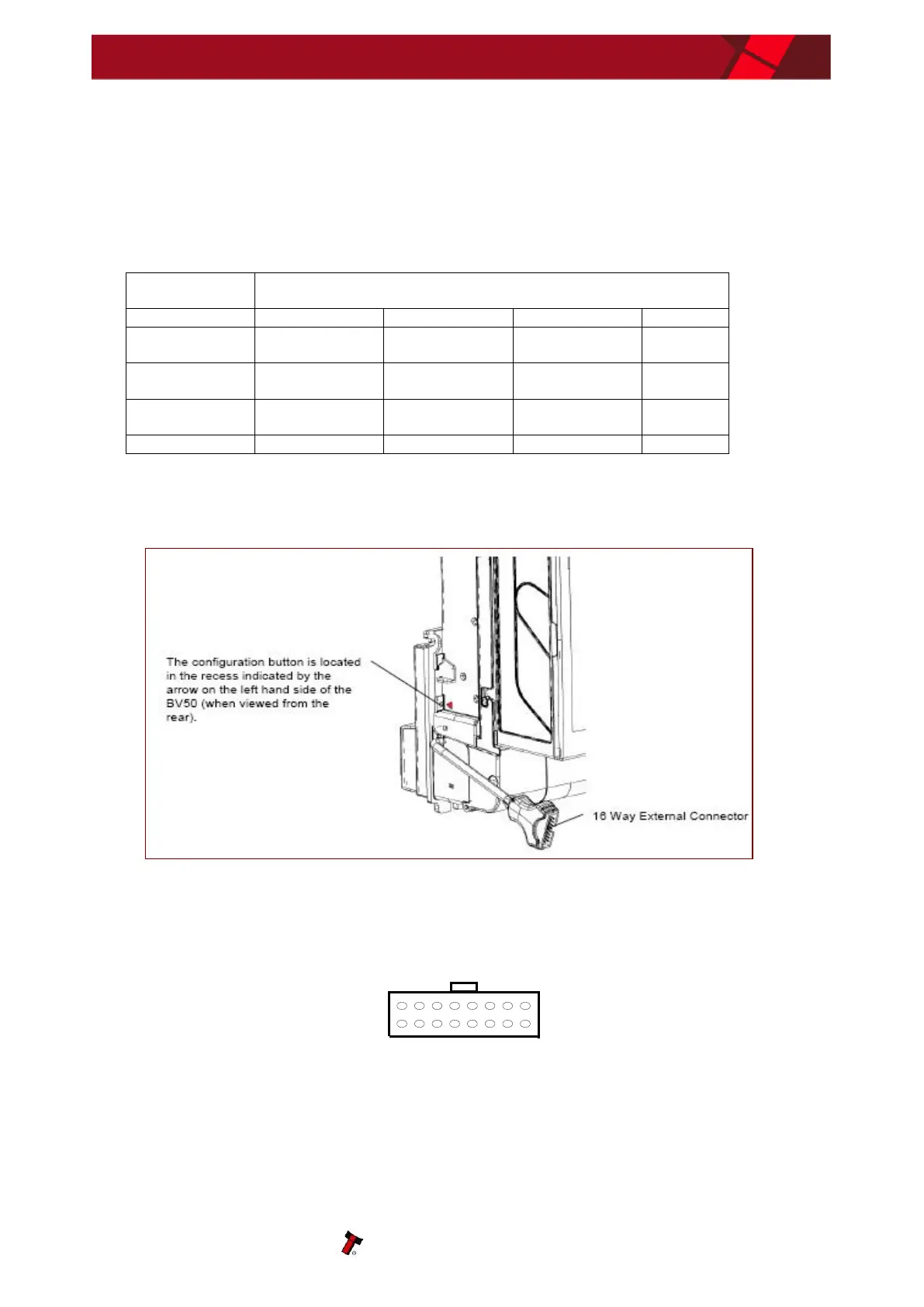

4.2 HARDWARE
4.2.1 POINTS AND BUTTONS
4.2.2 INTERFACE PIN DETAILS
The function of pins 1-8 changes according to which machine interface is being used. See the individual
interface descriptions for details.
Figure 3 – BV50 Cable connections
Number of
LONG flashes
Number of SHORT flashes
1
2
3
4
1
Note Path Open
Note Path Jam
Unit Not
Initialized
2
Cash Box
removed
Cash Box Jam
3
Firmware
Checksum
Interface
checksum
EEPROM
Checksum
Dataset
Checksum
4
PSU too Low
PSU too High
