5

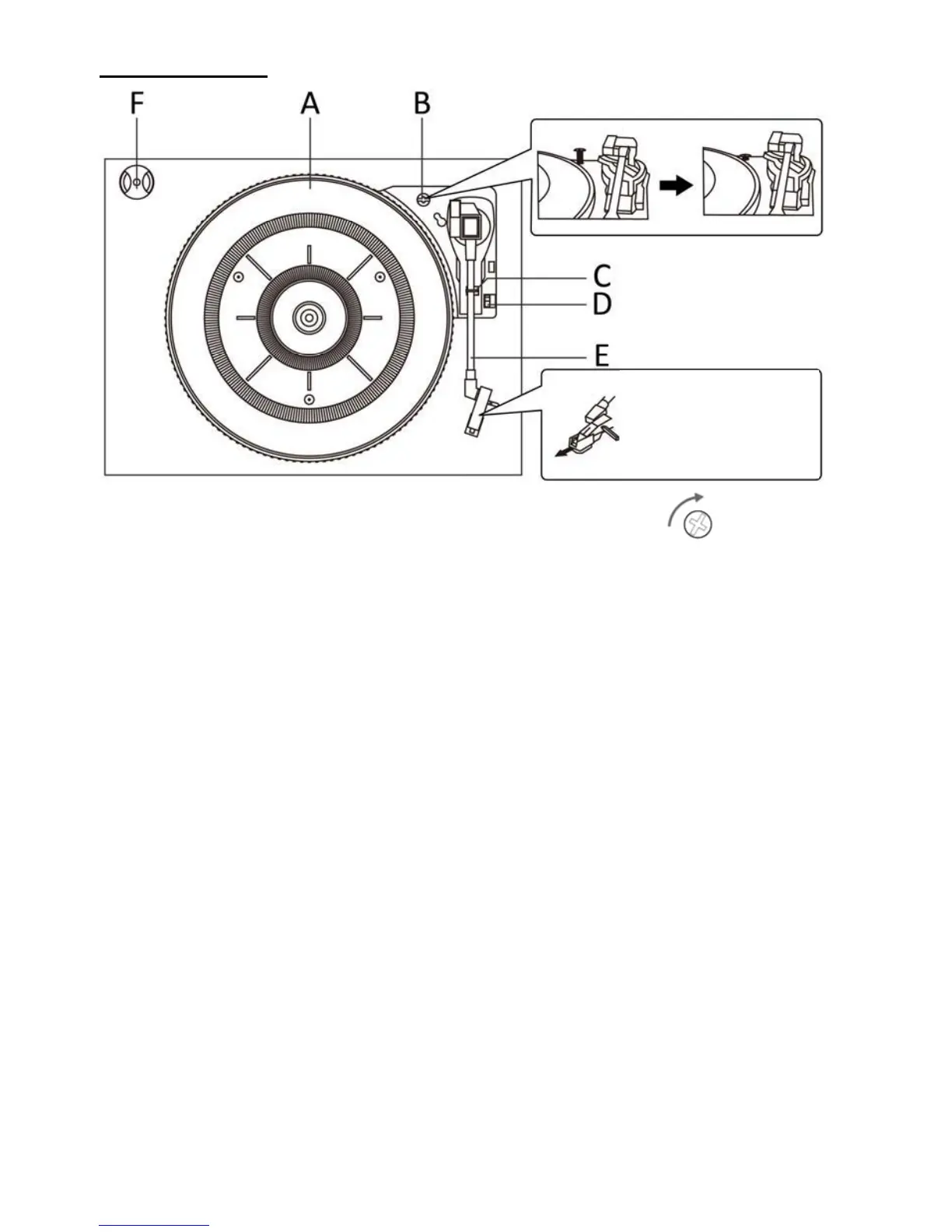

Parts of the Turntable
A. Turntable.
B. Safety Screw (for transport) Before using the unit, turn the screw
clockwise using a coin or screwdriver.
Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.
The silver screw on the back of the turntable is a balancer for both the
turntable as well as for
the tone arm.
Please turn this screw with a coin to either le or right and test by moving your tone arm to the
middle of the spindle. Please not
e
that this screw is a balancer and will have to be adjusted unl
the tone arm
moves freely to the end of the record (middle of the spindle) without any resistance
before using the turntable phonograph.
C. Tone Arm holder.
D. Speed Selector.
E. Tone Arm.
Before use, completely loosen the fixed rope on the tone arm and upli tone arm.
F. 45 RPM adaptor.
Remove the white plasc
needle guard before use.
Keep it in a safe place and
put it on when the unit is
not in use.
