Inogen One G5 User Manual

6

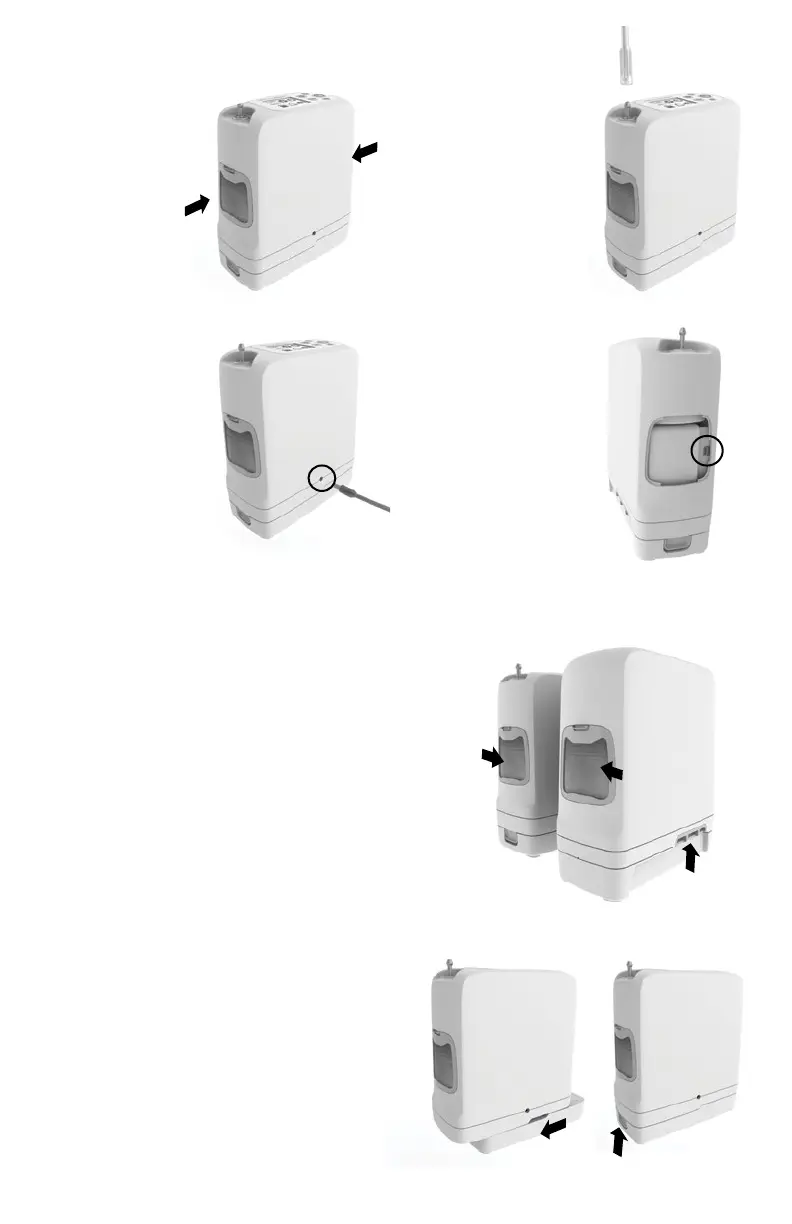

Input / Output Connections
Particle Filter
The lters must
be in place at the
intake ends of
the concentrator
during operation
to keep input air
clean.
Cannula Nozzle
Fitting
The nasal cannula
connects to this
nozzle for Inogen
One® G5 output of
oxygenated air.
USB Port
For service use only.
DC Power In
Connection for
external power
from the AC power
supply or DC power
cable.
4. Operating Instructions
General Instructions
1. Place the Inogen One® G5 in a well
ventilated location.
2. Air intake and exhaust must have clear
access. Locate the Inogen One® G5 in
such a way that any auditory alerts may
be heard. Always operate the Inogen
One® G5 in an upright position (see
image for proper orientation).
3. Ensure particle lters are in place at both
ends of device.
4. Insert the Inogen One® G5 battery by
sliding battery into place until the latch
returns to the upper position.
5. Connect the AC input plug to the power
supply. Connect the AC power plug
to the power source and connect the
power output plug to the Inogen One®
G5. The green LED on the power supply
will be illuminated and a beep will sound
from the concentrator.
Intake
Vent
Exhaust
Vent
Intake
Vent
1., 2., 3.
4.
Intake
Vent
Intake
Vent

Inogen One G5 Specifications

General

Battery Life (single battery)	Up to 6.5 hours
Battery Life (double battery)	Up to 13 hours
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Altitude Range	Up to 10, 000 feet (3, 048 meters)
Flow Settings	1-6
Weight (with single battery)	4.7 pounds (2.1 kg)
Power	AC: 100-240V, 50-60Hz
Humidity Range	0% to 95% non-condensing
Oxygen Flow	Pulse dose
Noise Level	38 dBA
