Version 1.4 Page 6

Whentheremotesensordatahasbeenreceived,theconsolewillautomaticallyswitchtothenormal

mode,andallfurthersettingscanbeperformed.



Iftheremotedoesnotupdate,pleasereferencethetroubleshootingguideinSection7.

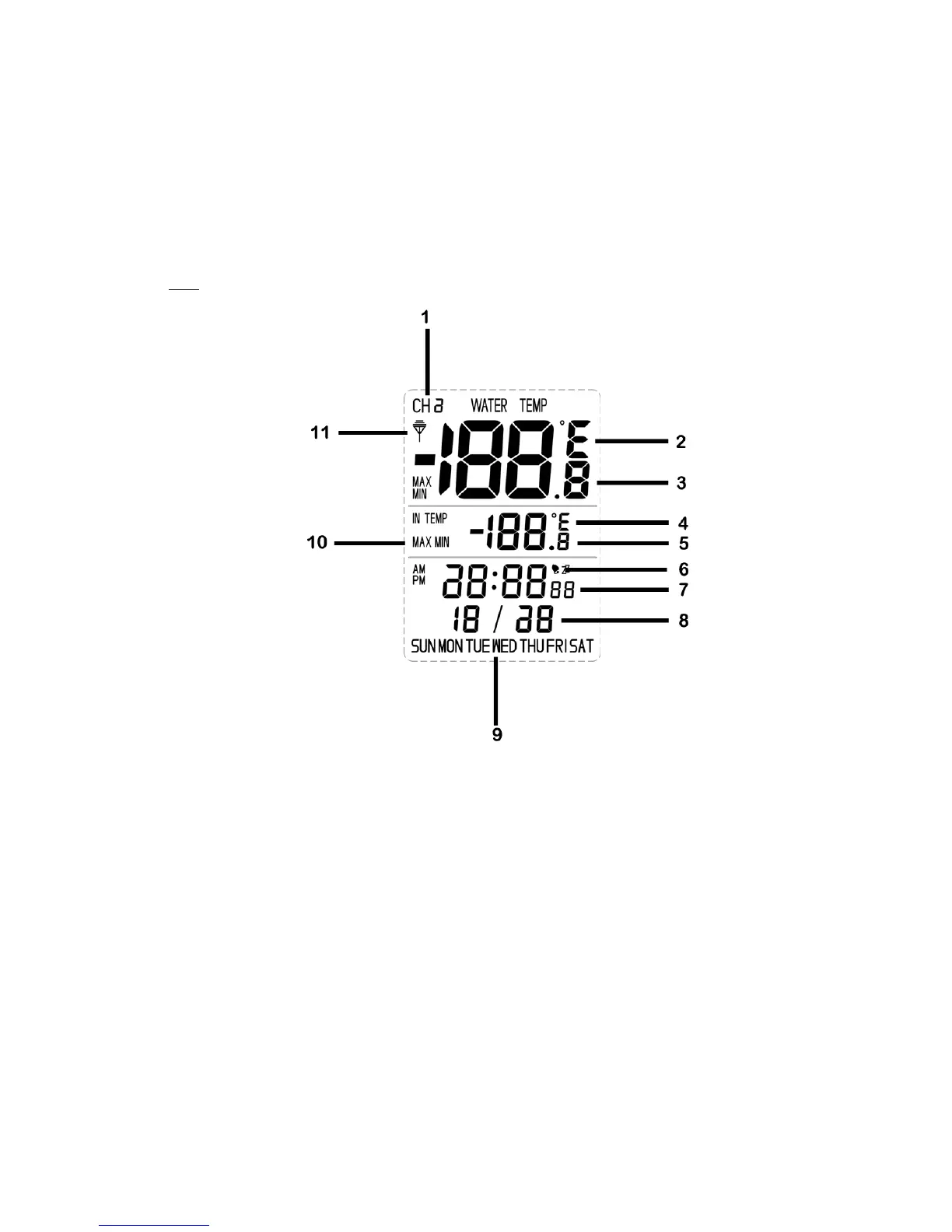

2.4 DisplayConsoleLayout

Note:ThefollowingillustrationshowsthefullsegmentsofthereceiverLCDfordescriptionpurposes

onlyandwillnotappearlikethisduringnormaloperation.



Figure8

1.

Transmitterchannelnumber

2.Watertemperatureunits(°F/°C)

3.Watertemperature

4.Indoortemperatureunits(°F/° C ) 

5.Indoortemperature

6. Timeandsnoozealarm

7.Timeofday

8.Date

9.Dayofweek

10.Min/maxicon

11.Transmitterreception(flasheswhenreceived)



Thenormaldisplaymode,asshowninFigure9.
