Inovance H0U Series User Manual

Inovance H0U Series PLC User Manual
Page 10 of 14

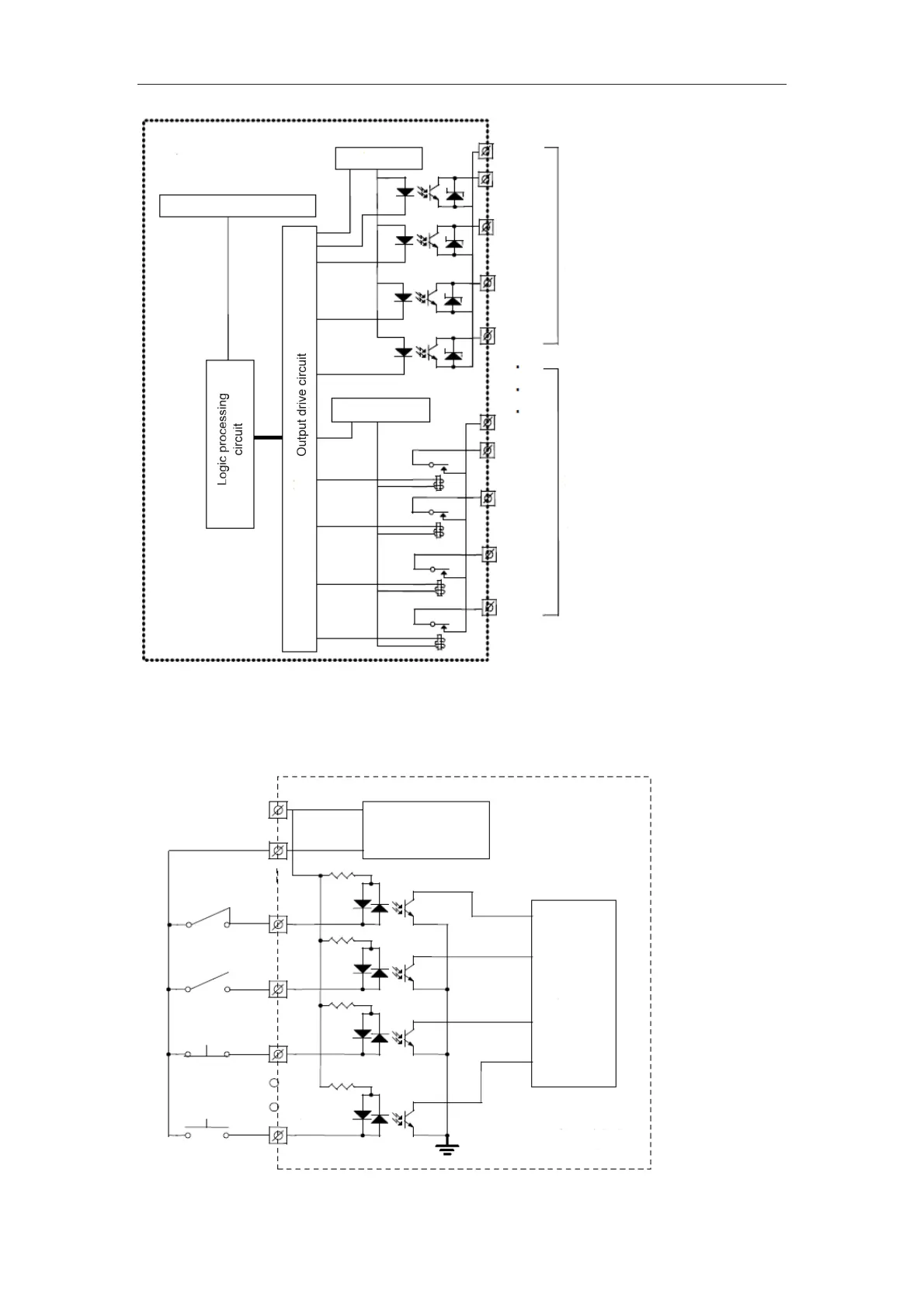

H0U-1616MRT-XP
internal equivalent circuit
Power supply of the
internal logic circuit
5 VDC power
supply
24 VDC
power supply
Output group 0:
transistor output
Output group 1-3:
relay output
COM0
Y0
Y1
Y2
Y3
COM3
Y14
Y15
Y16
Y17
The following figure shows the internal equivalent circuit of PLC signal input. The user
circuit is connected to the internal PLC circuit via wiring terminals. Sink input wiring is
always used for H0U.
User signal wiring
All signal input devices
24 VDC auxiliary
power supply
Logic
processing
circuit
Internal equivalent circuit of
PLC main module
24V
0V
24V+
24V-
X0
X1
X2
Xn
