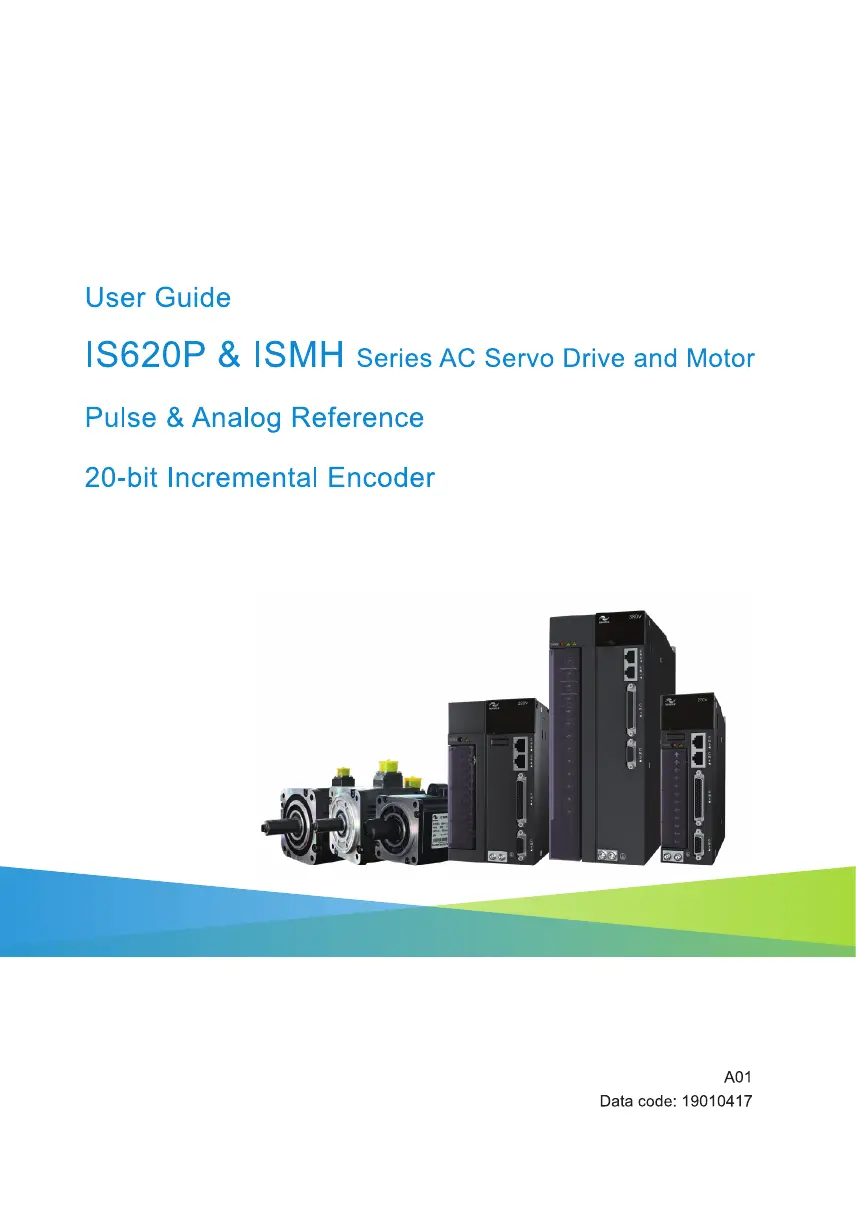

Inovance ISMH Series - User Manual

109 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

Table of Contents

Questions and Answers

S
Shannon CarterAug 19, 2025
What to do if the LED display is not on for Inovance Controller?
- G
  Gary WrightAug 19, 2025
  If the LED display of your Inovance Controller is not on or doesn't show "rdy", it could be due to several reasons. First, the control power voltage might be abnormal, so measure the AC voltage between L1C and L2C. Second, the main power voltage might be abnormal; for a single-phase 220 V model, measure the AC voltage between L1 and L2. If the DC bus voltage amplitude (voltage between P and -) is lower than 200 V, "nrd" will be displayed. Third, the program burning terminal might be shorted, so check it. Finally, the servo drive itself might be faulty.
D
Dana RobertsAug 21, 2025
Why is the shaft of my Inovance Controller's servo motor in free running status?
- R
  Roberta MartinezAug 21, 2025
  If the shaft of your servo motor is in a free running status, ensure the S-ON signal is valid by setting the operation panel to servo status display and checking if it displays "rdy" instead of "run". Also, verify that the control mode selection is correct by checking if H02-00 is set to 1.
K
Kelsey LarsenAug 23, 2025
Why doesn't the servo motor rotate in my Inovance Controller?
- R
  Rebekah GrahamAug 25, 2025
  If your Inovance Controller's servo motor does not rotate, it could be due to an internal torque reference (H0B-02) being 0. Check whether the polarity of the input signal is reversed.
C
Carla ThorntonAug 26, 2025
Why is my Inovance Controller's servo motor rotating in the reverse direction?
- T
  Tyler WoodAug 26, 2025
  If the servo motor of your Inovance Controller rotates in the reverse direction, and you're using AI to input torque reference, check whether the polarity of the external voltage input signal is reversed, as the internal torque reference (H0B-02) might be negative.
E
Elizabeth AlvarezAug 28, 2025
What causes the servo motor of Inovance Controller to not rotate or have abnormal speed?
- L
  Lauren Myers MDAug 28, 2025
  If the servo motor does not rotate or the motor speed is abnormal, it might be caused by incorrect AI wiring. Verify that the analog input channel is selected correctly and that the selected AI terminal is wired correctly.
O
Olivia GuerraAug 30, 2025
How to fix unsteady motor speed on Inovance Controller?
- E
  Ethan WebsterAug 30, 2025
  If the motor speed of your Inovance Controller is not steady, perform automatic gain tuning, as the gain might be set improperly.
M
Marisa ShannonSep 2, 2025
What causes the motor shaft to vibrate left and right on Inovance Controller?
- A
  Anthony GarnerSep 2, 2025
  If the motor shaft vibrates left and right, it might be because the load inertia ratio (H08-15) is too large. Perform inertia auto-tuning and automatic gain tuning on your Inovance Controller.
S
Stephanie ThomasSep 4, 2025
What to do if the servo motor of Inovance Controller does not rotate?
- C
  Charles WallsSep 4, 2025
  If your Inovance Controller's servo motor does not rotate, it could be due to the input reference pulse counter (H0B-13) being 0. Check whether the high/low-speed pulse input terminal is wired correctly. Alternatively, it could be that the position reference is not input. Check whether FunIN.13: INHIBIT (pulse input forbidden) or FunIN.37: PulseInhibit (pulse forbidden) is used.
B
byoungSep 6, 2025
Why does my Inovance Controller's servo motor jitter at low speed?
- B
  Brian KnightSep 6, 2025
  If your Inovance Controller's servo motor jitters at low speed, it might be because the motor speed is not steady. The gain may be set improperly.
T
thompsonkennethSep 9, 2025
What to do if Inovance Controller's servo drive is faulty?
- R
  Ryan PruittSep 9, 2025
  Replace the servo drive.

Summary

Safety Information and Precautions

Electrical Safety

Precautions for working with the Servo Drive to prevent electrical shock.

Machine;System Design and Safety of Personnel

Safety requirements for design, installation, and maintenance personnel.

Electrical Installation - Safety

Safety guidelines for wiring, grounding, and handling electrical shock risks.

Electrical Shock Hazard

Details on protective earthing, RCD types, and factors affecting leakage current.

Chapter 2 Wiring

2.1 Servo System Wiring

Illustrates wiring examples for single-phase and three-phase servo systems.

2.2 Wiring in Different Modes

2.3 Terminals of Servo Drive

Chapter 4 Quick Setup

Chapter 5 Troubleshooting

5.1 During Startup

Troubleshooting common issues encountered during initial startup.

5.1.1 Position Control

Troubleshooting specific problems related to position control during startup.

5.1.2 Speed Control

Troubleshooting common issues for speed control during startup.

5.1.3 Torque Control

Troubleshooting common issues for torque control during startup.

5.2 During Running

Troubleshooting problems that occur while the system is running.

5.2.2 Troubleshooting of Faults

Detailed troubleshooting steps for various fault codes (Er.xxx).

5.2.3 Troubleshooting of Warnings

Steps to resolve warning messages (Er.xxx) displayed by the system.

Chapter 6 Parameter Table

Group H00: Servo Motor Parameters

Group H01: Servo Drive Parameters

Group H02: Basic Control Parameters

Table of fundamental control parameters for the servo drive.

Group H03: Input Terminal Parameters

Group H04: Output Terminal Parameters

Group H05: Position Control Parameters

Table of parameters specific to position control functionality.

Group H06: Speed Control Parameters

Table of parameters for configuring speed control.

Group H07: Torque Control Parameters

Table listing parameters for torque control settings.

Group H08: Gain Parameters

Table of parameters related to servo drive gain tuning.

Group H09: Automatic Gain Tuning Parameters

Group H0 A: Fault and Protection Parameters

Table of parameters for fault detection and protection functions.

Group H0 B: Monitoring Parameters

Group H0 C: Communication Parameters

Group H0 D: Auxiliary Function Parameters

Group H0 F: Fully Closed-Loop Parameters

Group H11: Multi-Position Function Parameters

Group H12: Multi-Speed Function Parameters

Group H17: VDI;VDO Parameters

Inovance ISMH Series Specifications
