MD380 User Manual Desc
ription of Function Codes
- 193 -
Function Code Parameter Name Setting Range Default
F8-22
Frequency jump during
acceleration/deceleration
0: Disabled
1: Enabled
0
It is used to set whether frequency jump is enabled during acceleration/deceleration.
:KHQWKLVIXQFWLRQLVHQDEOHGDQGWKHUXQQLQJIUHTXHQF\LVZLWKLQWKHMXPSEDQGWKHDFWXDO
UXQQLQJIUHTXHQF\ZLOOMXPSRYHUWKHVHWMXPSEDQG7KHIROORZLQJ¿JXUHVKRZVIUHTXHQF\
jump enabled during acceleration/deceleration.

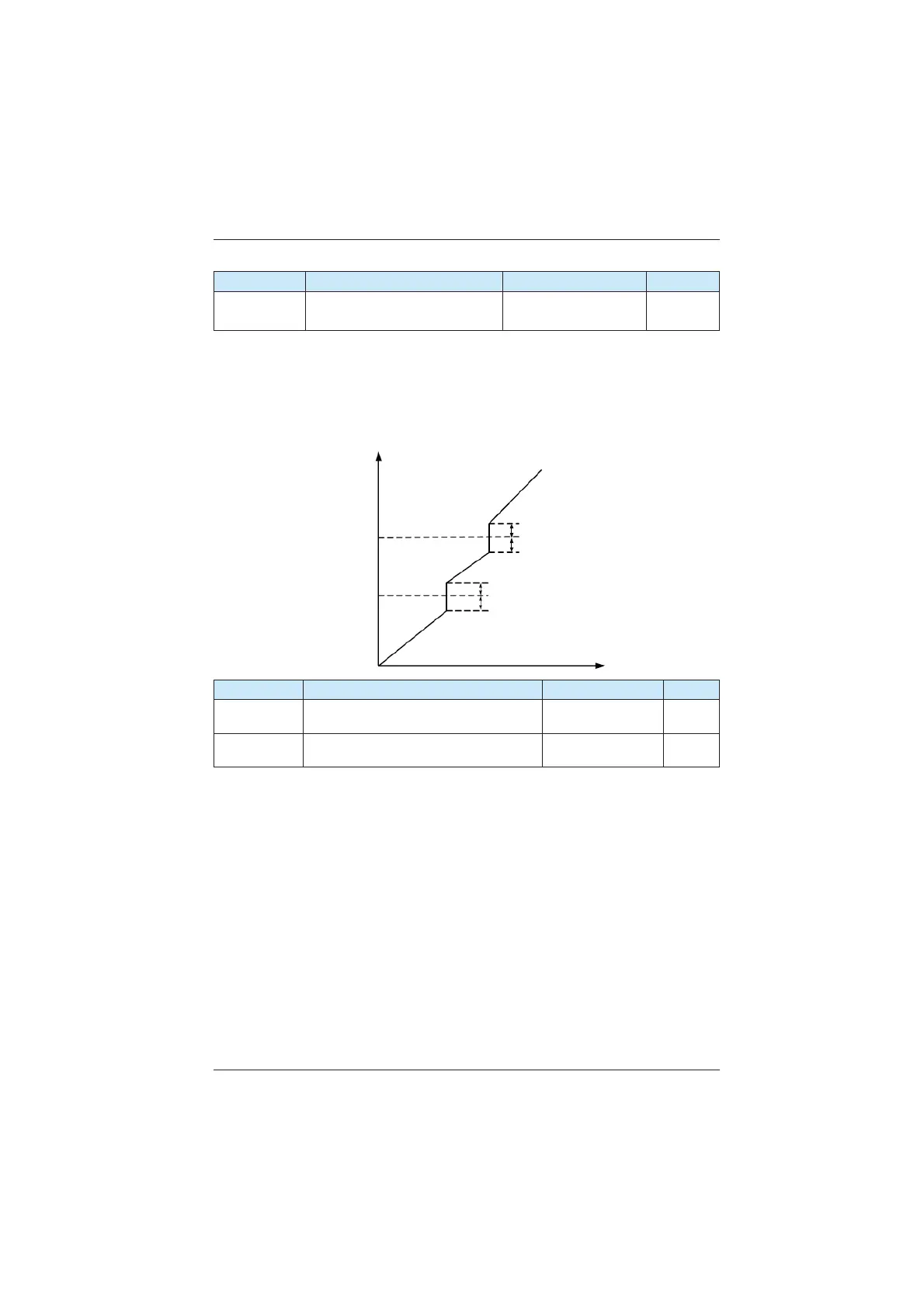

Figure 6-19 Frequency jump enabled during acceleration/deceleration
Frequency jump amplitude
Frequency jump amplitude
2XWSXW
frequency (Hz)
Frequency
jump 2
Frequency
jump 1
Time (t)
Frequency jump band
Frequency jump band
Frequency jump band
Frequency jump band
Function Code Parameter Name Setting Range Default
F8-25
Frequency switchover point between
acceleration time 1 and acceleration time 2
0.00 Hz to maximum
frequency
0.00 Hz
F8-26
Frequency switchover point between
deceleration time 1 and deceleration time 2
0.00 to maximum
frequency
0.00 Hz
This function is valid when motor 1 is selected and acceleration/deceleration time switchover
is not performed by means of DI terminal. It is used to select different groups of acceleration/
deceleration time based on the running frequency range rather than DI terminal during the
running process of the AC drive.
