Inovance MD380 Series

MD380 User Manual Desc
ription of Function Codes
- 213 -
Function Code Parameter Name Setting Range Default
FA-21 PID initial value 0.0%–100.0% 0.0%
FA-22 PID initial value active time 0.00–650.00s 0.00s
:KHQWKH$&GULYHVWDUWVXSWKH3,'VWDUWVFORVHGORRSDOJRULWKPRQO\DIWHUWKH3,'RXWSXW
LV¿[HGWRWKH3,'LQLWLDOYDOXH)$DQGODVWVWKHWLPHVHWLQ)$

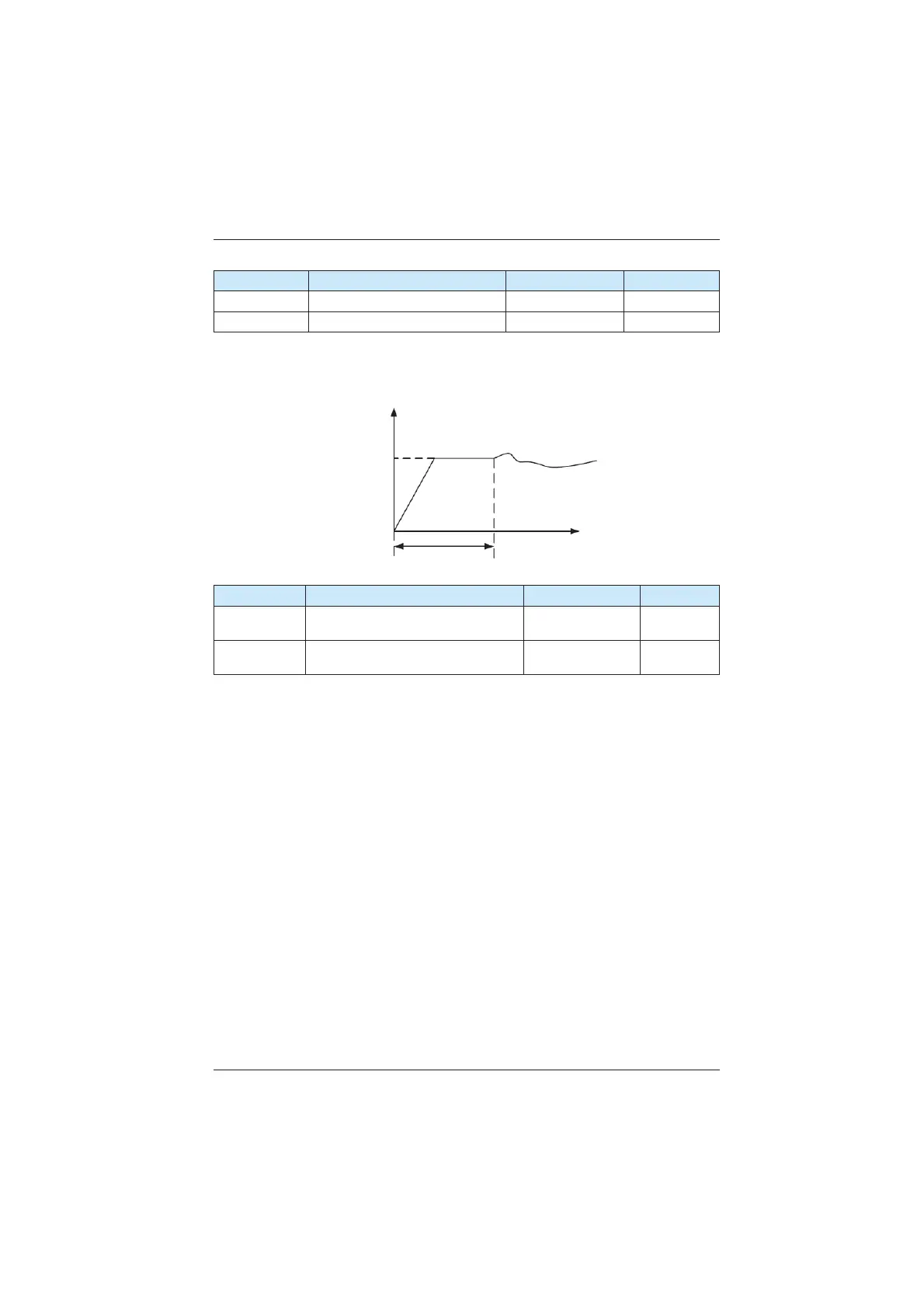

Figure 6-30 PID initial value function
2XWSXW
frequency
FA-21 (PID
initial value)
FA-22 (PID initial
value active time)
Time
Function Code Parameter Name Setting Range Default
FA-23
Maximum deviation between two PID
outputs in forward direction
0.00%–100.00% 1.00%
FA-24
Maximum deviation between two PID
outputs in reverse direction
0.00%–100.00% 1.00%
This function is used to limit the deviation between two PID outputs (2 ms per PID output) to
suppress the rapid change of PID output and stabilize the running of the AC drive.
FA-23 and FA-24 respectively correspond to the maximum absolute value of the output
deviation in forward direction and in reverse direction.
