Inovance MD380 Series - Page 280

Selection and Dimensions MD380 User Manual
- 280 -

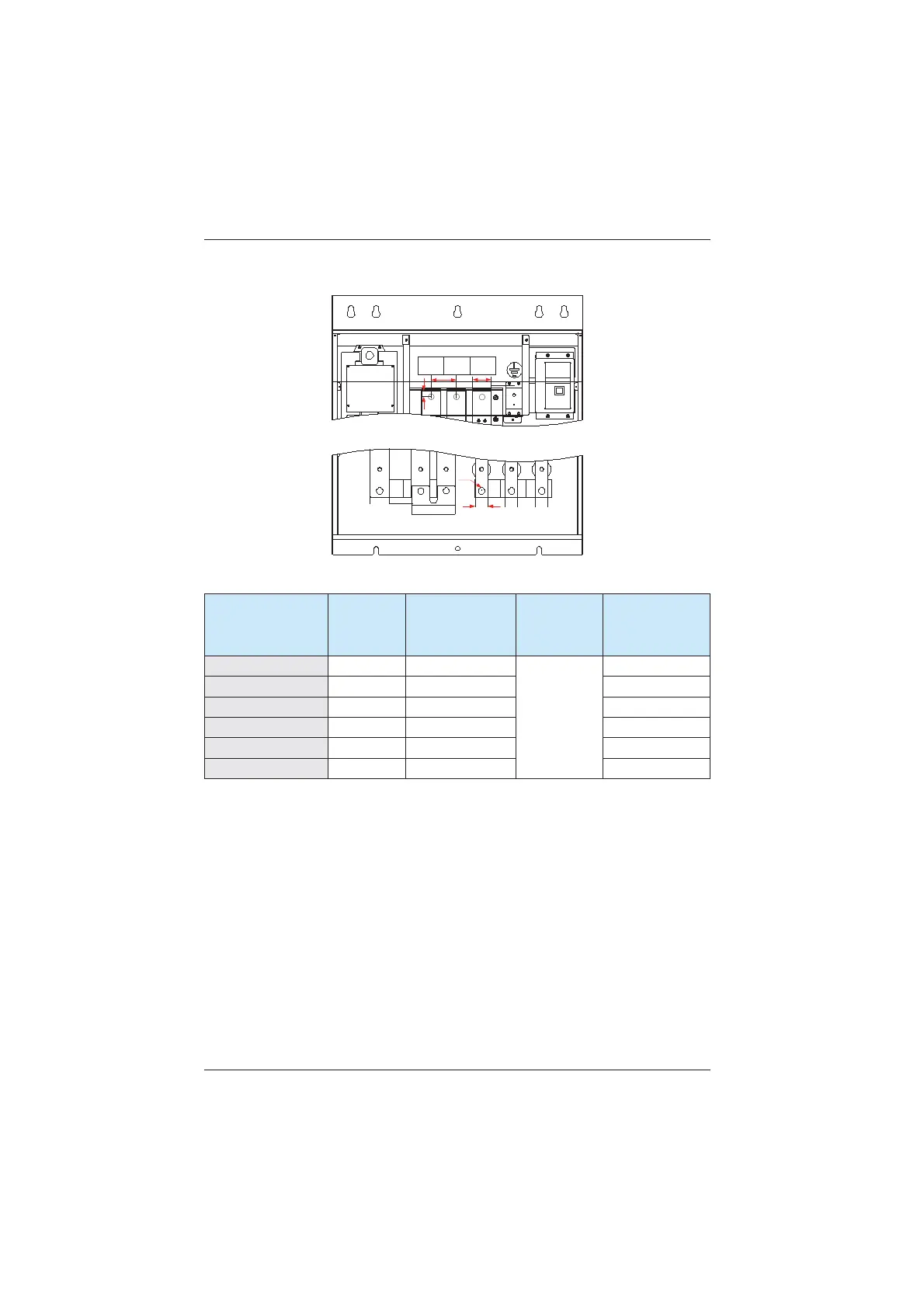

Figure 8-11 Dimensions of power terminals of the MD380 (size J)
40
Ø20
21
81
60
RST
8 V :
Table 8-11 Recommended cable diameter and cable lug model (size J)
AC Drive Model
Rated Input
Current
(A)
Recommended
2XWSXW3RZHU
Cable Diameter
(mm2)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380T355 665.00 185 x 2
85
GTNR185-16
MD380T400 785.00 240 x 2 GTNR240-16
MD380T450P 883.00 240 x 2 GTNR240-16
MD380-5T355 665.00 185 x 2 GTNR185-16
MD380-5T400 785.00 240 x 2 GTNR240-16
MD380-5T450P 883.00 240 x 2 GTNR240-16
