Inovance MD380 Series

MD380 User Manual Mechanical and Electrical Installation
- 31 -
7KH0'VHULHV$& GULYH GLVVLSDWHVKHDWIURPWKHERWWRPWRWKHWRS:KHQPXOWLSOH$&
drives are required to work together, install them side by side.
For the application of installing multiple AC drives, if one row of AC drives need to be
installed above another row, install an insulation guide plate to prevent AC drives in the
lower row from heating those in the upper row and causing faults.

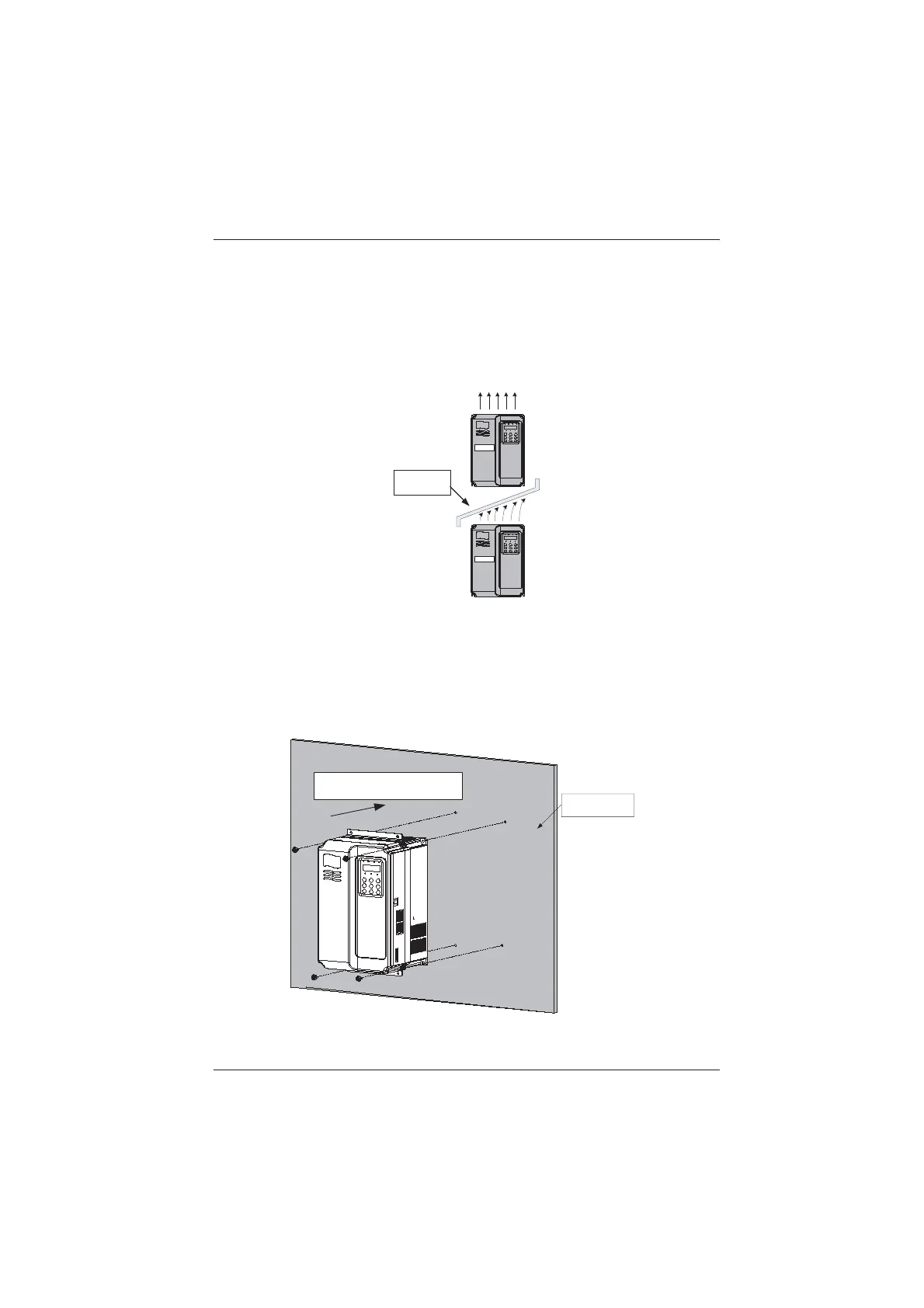

Figure 3-2 Installation of the insulation guide plate
Insulation
guide plate
MD380
MD380
3.1.3 Mechanical Installation Method and Process
The MD380 series AC drives have two housing types, plastic housing and sheet metal
housing, according to different voltage and power classes. The MD380 supports both wall-
mounting installation and embedded installation in different applications.
1) :DOOPRXQWLQJLQVWDOODWLRQRIWKH0'SODVWLFKRXVLQJ
)LJXUH:DOOPRXQWLQJLQVWDOODWLRQRIWKH0'SODVWLFKRXVLQJ
Back panel of
control cabinet
Install the AC drive from the front
of the control cabinet.
