Inovance MD380 Series

Mechanical and Electrical Installation MD380 User Manual
- 34 -

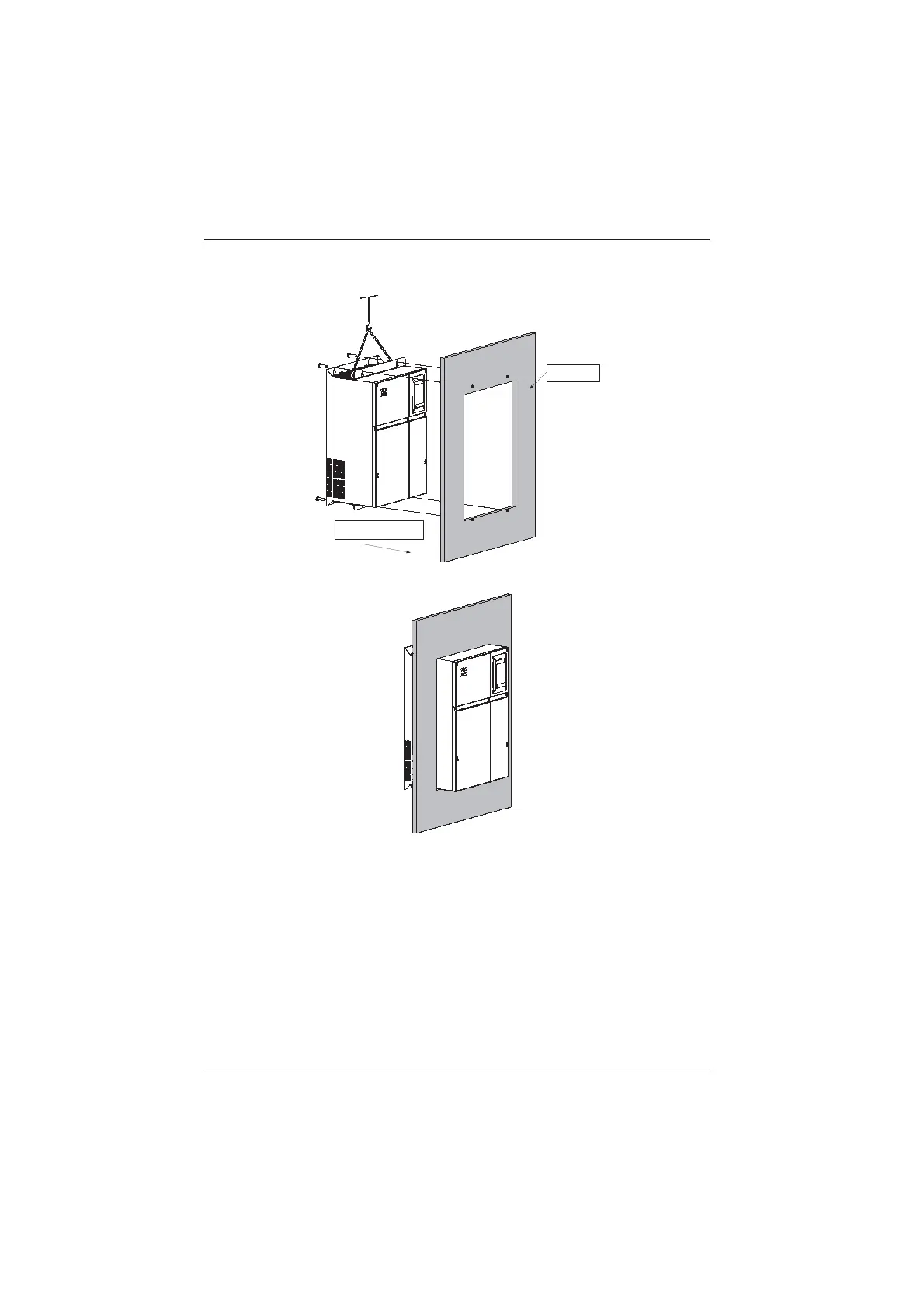

Figure 3-10 Embedded installation of the MD380 (sheet metal housing)
Install the AC drive from the
back of the control cabinet.
Back panel of
control cabinet
Figure 3-11 Embedded installation effect of the MD380 (sheet metal housing)
Ƶ
Installation Precautions
The installation precautions are as follows:
1) 5HVHUYHWKHLQVWDOODWLRQFOHDUDQFHVDVVSHFL¿HGLQ)LJXUHWRHQVXUHVXI¿FLHQWVSDFH
for heat dissipation. Take heat dissipation of other components in the cabinet into
consideration.
2) Install the AC drives upright to facilitate heat dissipation. If multiple AC drives are
installed in the cabinet, install them side by side. If one row of AC drives need to be
installed above another row, install an insulation guide plate, as shown in Figure 3-2.
3) 8VHWKHLQFRPEXVWLEOHKDQJLQJEUDFNHW
4) In scenarios with heavy metal powder, install the heatsink outside the cabinet, and
ensure that the room inside the fully-sealed cabinet is as large as possible.
