4.7.4 Timing Stop
The MD380 supports timing stop. This function is enabled by F8-42 and the timing duration
is determined by F8-43 and F8-44.

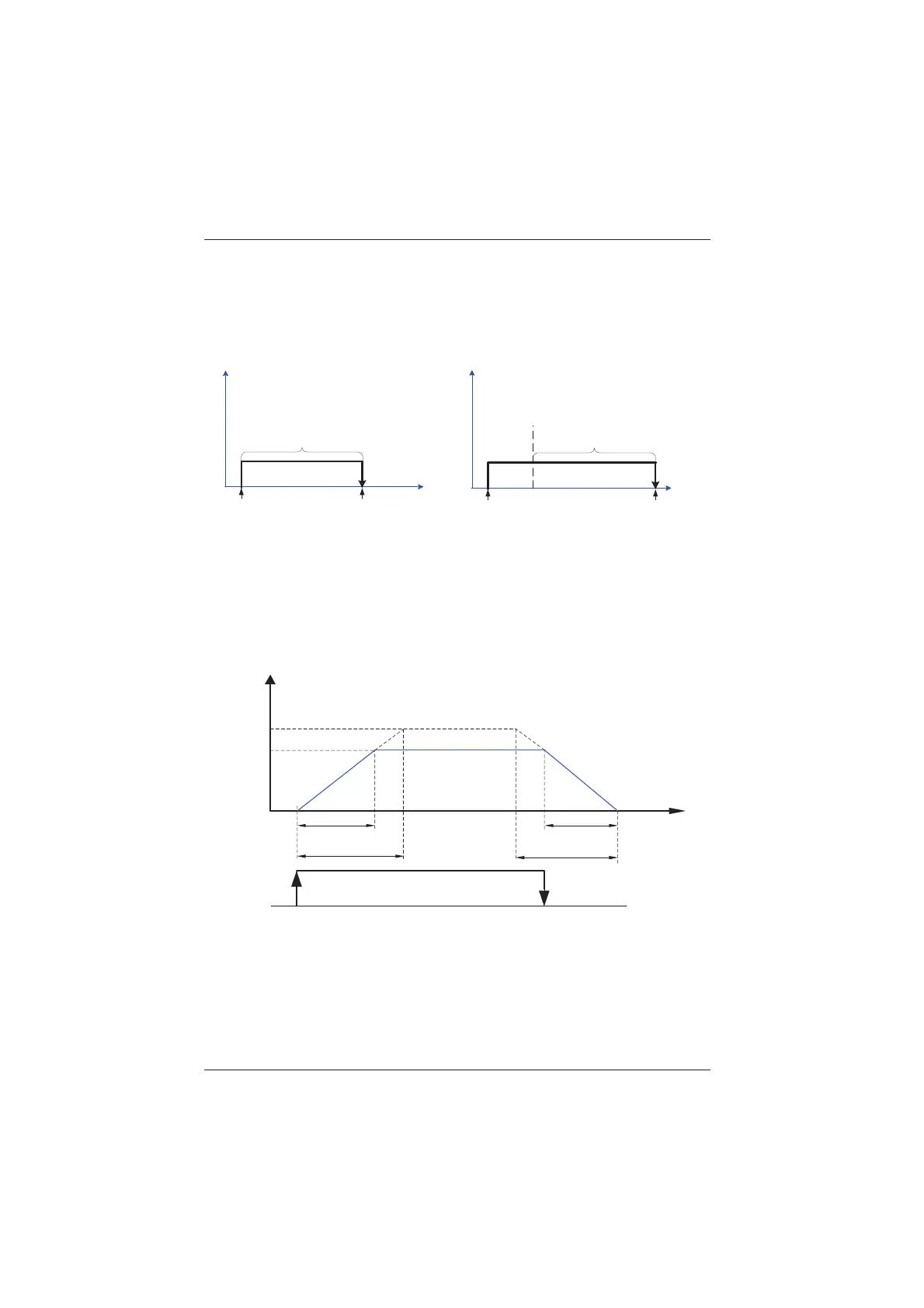

Figure 4-13 Setting of the timing stop function
F8-42 1 (timing function enabled)
F8-43 0 (timing duration determined by F8-44)
Time (t)
Running
command
Running state
Automatic stop
F8-44 (Timing duration)
F8-43 0 (timing duration determined by F8-44)
Time (t)
Running
command
Running state
Automatic stop
Set F8-42 to 1 to enable the timing function.
F8-44 (Timing duration)
You can also set the timing duration by means of analog input (such as potentiometer
signal). For details, see the description of F8-43.
4.7.5 Jog Running
In certain applications, the AC drive needs to run in low speed temporarily to facilitate
equipment test or other commissioning operations. In this case, you can enable the AC drive
to perform jog running.
Figure 4-14 Jog running
Jog acceleration
time (F8-01)
Time (t)
2XWSXW
frequency
Acceleration/Deceleration
base frequency (F0-25)
Set
acceleration time
Set
deceleration time
Actual
acceleration time
Actual
deceleration time
Jog deceleration
time (F8-02)
Jog running
frequency (F0-08)
Jog
command
