The AC drive supports a total of three AI terminals, among which AI1 and AI2 are provided
on the control board and AI3 is provided on the extension card.
Terminal Input Signal Characteristic
AI1-GND It receives the signal of 0–10 VDC.
AI2-GND
If J8 is shorted with the pin marked with "V", the AI receives the voltage signal of
0
–
10 VDC.
If J8 is shorted with the pin marked with "I", the AI receives the current signal of
0
–
20 mA.
AI3-GND It is provided on the extension card and receives the signal of -10 to10 VDC.
As external voltage/current signal, AI is used for inputting the frequency reference, torque
reference, voltage reference at V/F separation, and PID reference or feedback. The
corresponding relationship between the voltage/current and the actual reference or feedback
LVGH¿QHGE\)WR)

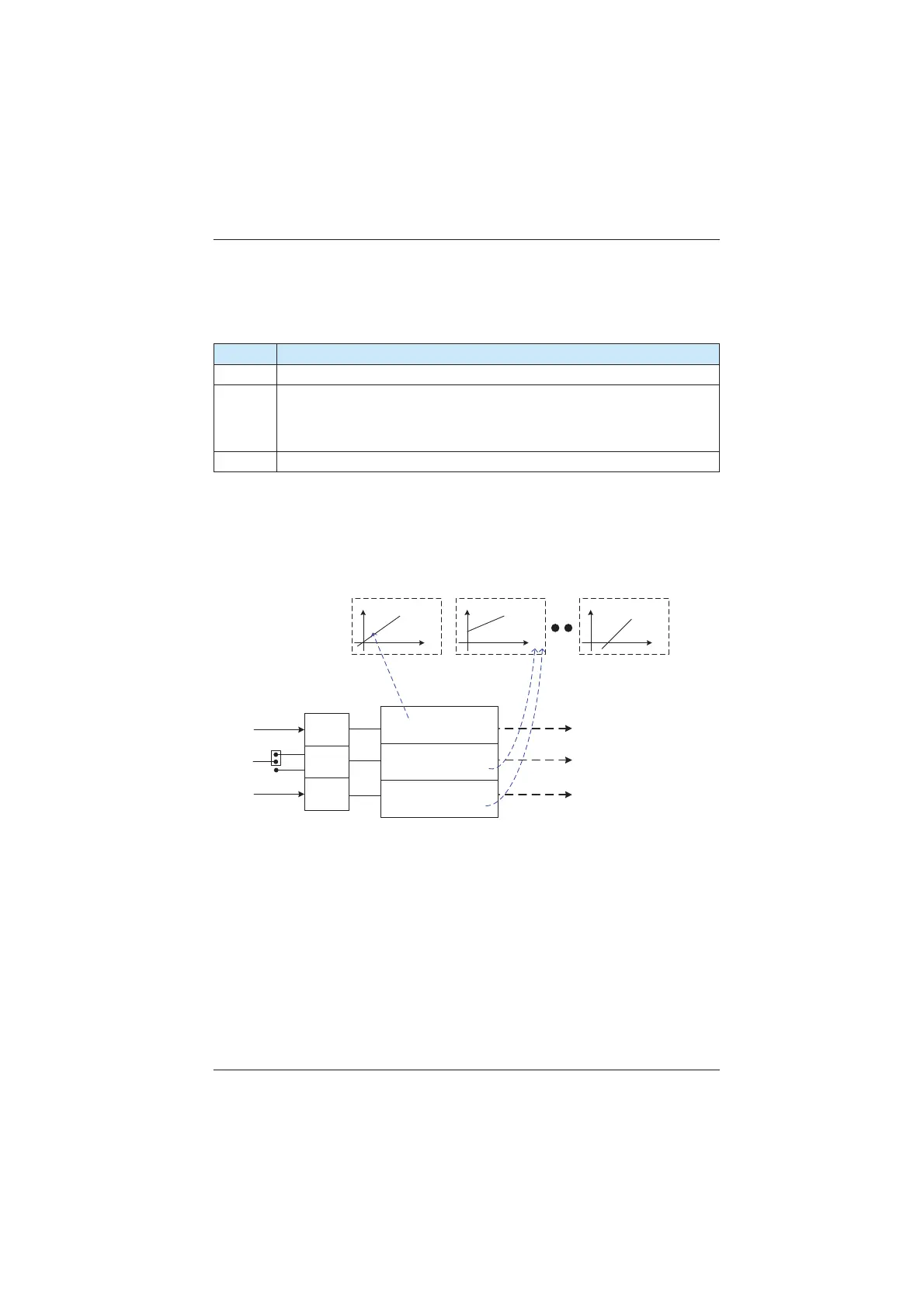

Figure 4-32 Corresponding relationship between the voltage/current and the actual
reference or feedback
Vi
D %
Vi
D %
Vi
D %
80-09
80-10
80-11
8QLW's digit: AI1
Curve selection: 1
í5
Ten's digit: AI2
Curve selection: 1
í5
Hundred's digit: AI3
Curve selection: 1
í5
F4-33: AI curve selection
AI1
AI3
AI2
AI terminal Sampling
ˁ
ˁ
ˁ
AI1 internal
calculation value
AI2 internal
calculation value
AI3 internal
calculation value
The user can preset up
to 5 curves. Different
AIs can use one curve.
Curve 1: F4-13 to
F4-17
Curve 2: F4-18 to
F4-22
Curve 5: A6-08 to
A6-15
J8
V
I
V
V
7KHVDPSOLQJRI$,WHUPLQDOVFDQEHTXHULHGLQ8WR87KHFDOFXODWLRQYDOXHLVIRU
internal subsequent calculation and cannot be directly read by the user.
