Insignia NS-19LD120A13 User Manual

11
Insignia 19" LCD TV/DVD Combo
www.insigniaproducts.com

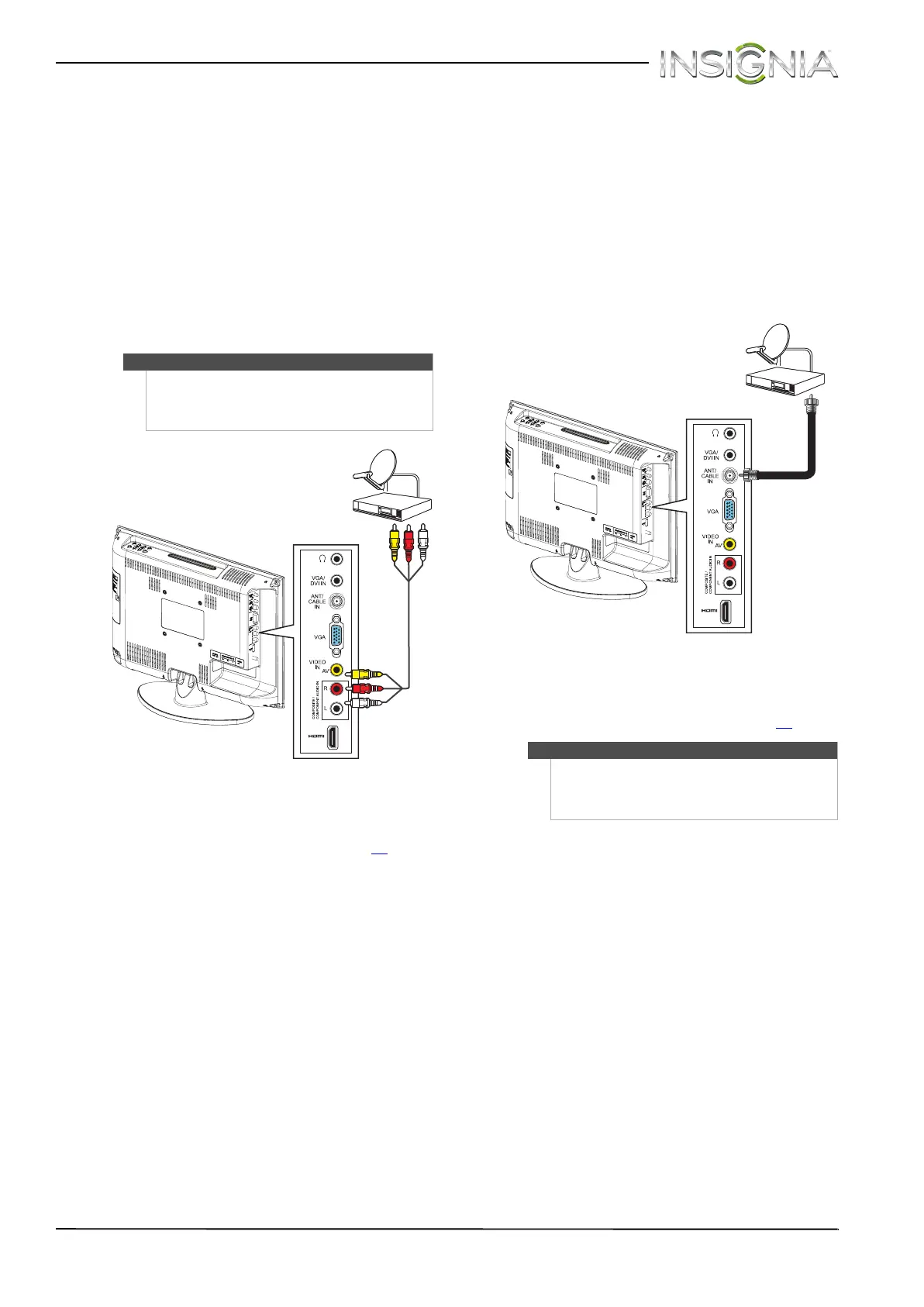

Using composite video (good)
To connect a cable or satellite box using
composite video:
1 Make sure that your TV/DVD combo’s power
cord is unplugged, and all connected
equipment is turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect an A/V cable (not provided) to the
VIDEO IN/AV jack and L and R audio jacks on
the side of your TV/DVD combo and to the
composite video and audio out jacks on the
cable or satellite box.
4 Plug your TV/DVD combo’s power cord into a
power outlet, turn on your TV/DVD combo, then
turn on the cable or satellite box.
5 Go through the Setup Wizard on page 19
.
Using coaxial (good)
To connect a cable or satellite box using coaxial:
1 Make sure that your TV/DVD combo’s power
cord is unplugged, and all connected
equipment is turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect a coaxial cable (not provided) to the
ANT/CABLE IN jack on the side of your TV/DVD
combo and to the coaxial out jack on the cable
or satellite box.
4 Plug your TV/DVD combo’s power cord into a
power outlet, turn on your TV/DVD combo, then
turn on the cable or satellite box.
5 Go through the Setup Wizard on page 19
.
Note
•The VIDEO IN/AV jack shares the audio jacks
with the COMPONENT IN video jacks.
• When you connect the audio using the L and R
audio jacks, the audio output is analog.
Cable or satellite box
A/V cable
Cables are often color-coded
to match color-coded jacks.
Side of TV
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
Cable or satellite box
Coaxial cable
Side of TV
NS-19LD120A13_11-1329_MAN_V1_ENG.book Page 11 Friday, April 20, 2012 3:10 PM
