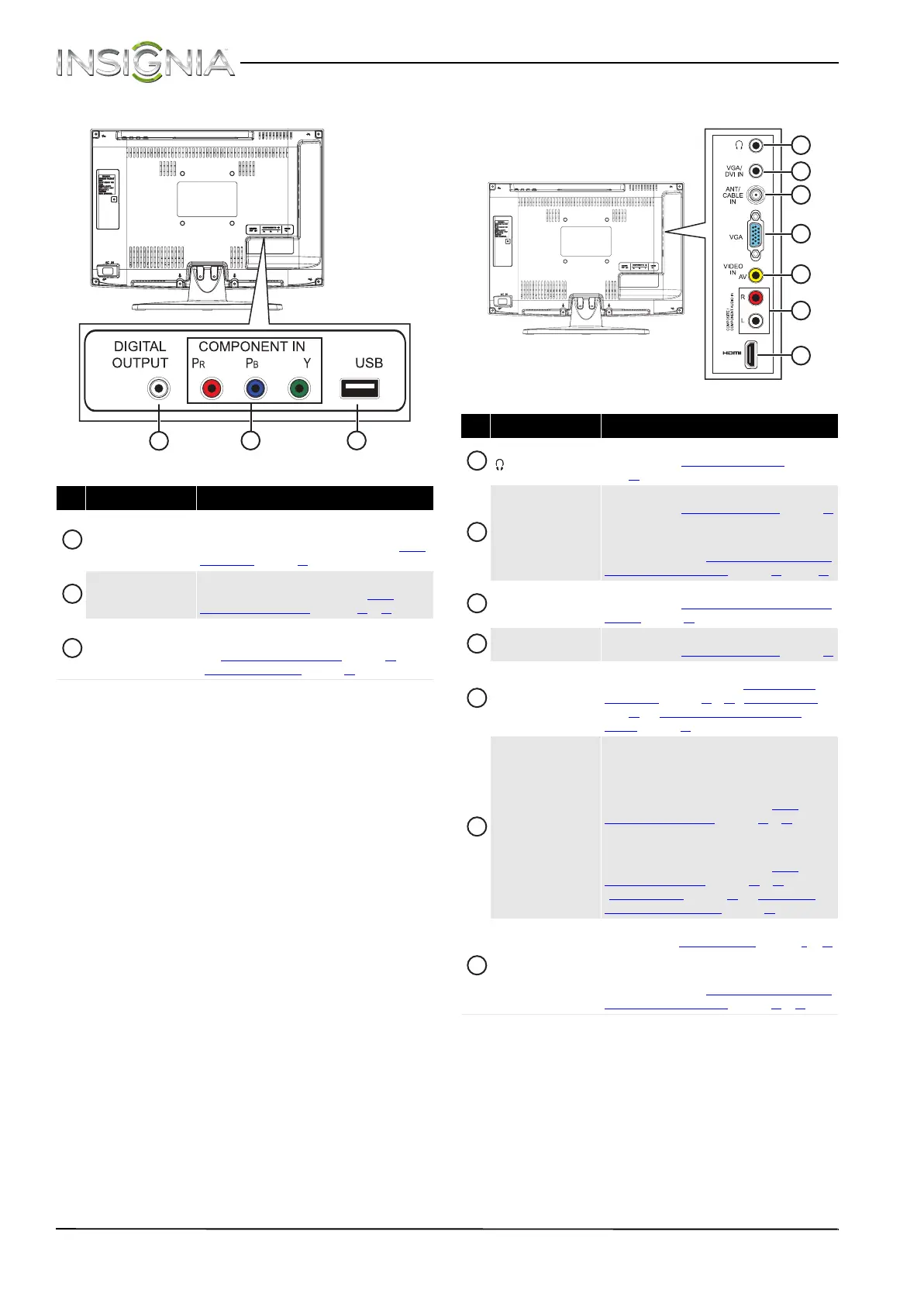

NS-19LD120A13 Insignia 19" LCD TV/DVD Combo
www.insigniaproducts.com
Back Side
# Item Description
DIGITAL OUT
Connect a digital audio amplifier or home theater
system to this jack to listen to TV audio through the
amplifier speakers. For more information, see “Using
digital audio” on page 17.
COMPONENT IN
Y/PB/PR
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 10 or 13.
USB
Connect a USB flash drive to this jack to view
compatible JPEG picture files. For more information,
see “Connecting a USB flash drive
” on page 16 and
“Using a USB flash drive” on page 37.
1
2 3
1
2
3
# Item Description
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 17.
VGA/DVI IN (audio)
Connect the audio for a computer to this jack. For more
information, see “Connecting a computer” on page 15.
OR
Connect the audio for a DVI device to this jack. For
more information, see “Using DVI (same as HDMI but
requires a sound connection)” on page 10 or page 13.
ANT/CABLE IN
Connect an antenna or cable TV to this jack. For more
information, see “Connecting an antenna or cable TV
(no box)” on page 12.
VGA
Connect the video for a computer to this jack. For more
information, see “Connecting a computer” on page 15.
VIDEO IN/AV
Connect the video for a composite video device to this
jack. For more information, see “Using composite
video (good)” on page 11 or 14, “Connecting a VCR” on
page 14, or “Connecting a camcorder or game
console” on page 15.
L/R (audio)
The component video jacks
(COMPONENT IN Y/PB/PR) share these audio jacks
with the composite video jack (VIDEO IN/AV).
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 10 or 13.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)” on page 11 or 14,
“Connecting a VCR” on page 14, or “Connecting a
camcorder or game console” on page 15.
HDMI
Connect an HDMI device to this jack. For more
information see “Using HDMI (best)
” on page 9 or 12.
OR
Connect the video for a DVI device to this jack. For
more information, see “Using DVI (same as HDMI but
requires a sound connection)” on page 10 or 13.
1
2
3
4
6
5
7
1
2
3
4
5
6
7
