NS-28E200NA14 Insignia 28" LED TV
www.insigniaproducts.com
Back

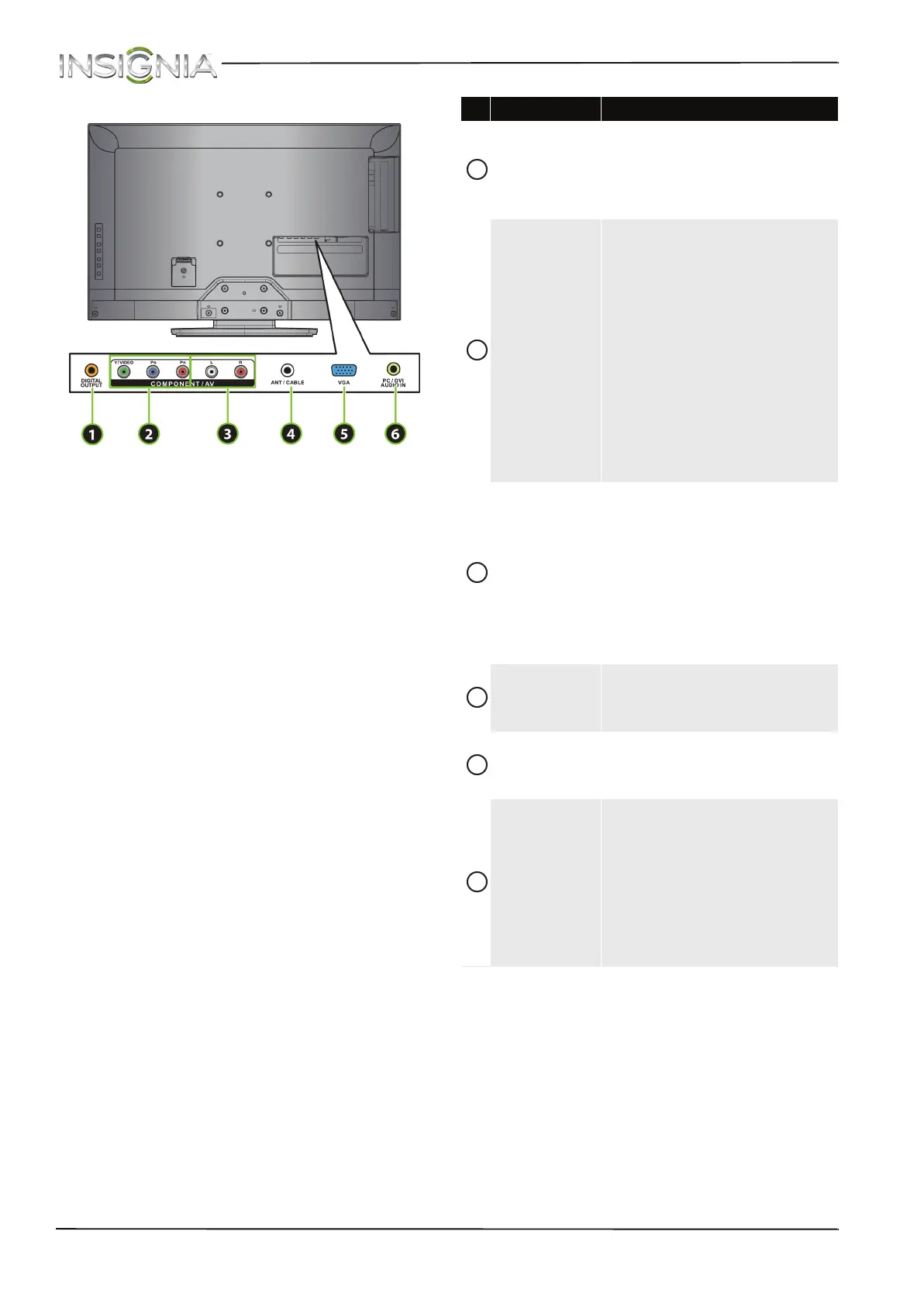

# Item Description
DIGITAL OUTPUT
(coaxial)
Connect a digital audio amplifier or
home theater system to this jack to
listen to TV audio through the
amplifier speakers. For more
information, see “Using digital
audio” on page 32.
COMPONENT/AV
Y/VIDEO, P
B
, P
R
OR
COMPONENT/AV
Y/VIDEO
The COMPONENT/AV Y/VIDEO
jack works as one of the three
component video jacks or as a
composite video jack.
Connect the video for a component
video device to these jacks. For
more information, see “Using
component video (better)” on
page 15, 21, or 25.
OR
Connect the video for a composite
video device to the
COMPONENT/AV Y/VIDEO jack.
For more information, see “Using
composite video (good)” on
page 16, 22, or 26.
L and R (audio)
Connect the audio for a component
video device to these jacks. For
more information, see “Using
component video (better)” on
page 15, 21, or 25.
OR
Connect the audio for a composite
video device to these jacks. For
more information, see “Using
composite video (good)” on
page 16, 22, or 26.
ANT/CABLE
Connect an antenna or cable TV to
this jack. For more information, see
“Connecting an antenna or cable TV
(no box)” on page 18.
VGA
Connect the video (VGA) for a
computer to this jack. For more
information, see “Using VGA (most
common)” on page 27.
PC/DVI AUDIO IN
Connect the audio for a computer
to this jack. For more information
see “Using VGA (most common)” on
page 27.
OR
Connect the audio for a DVI device
to the this jack. For more
information see, “Using DVI (same
as HDMI but requires an audio
connection)” on pages 14, 20, or 29.
1
2
3
4
5
4
