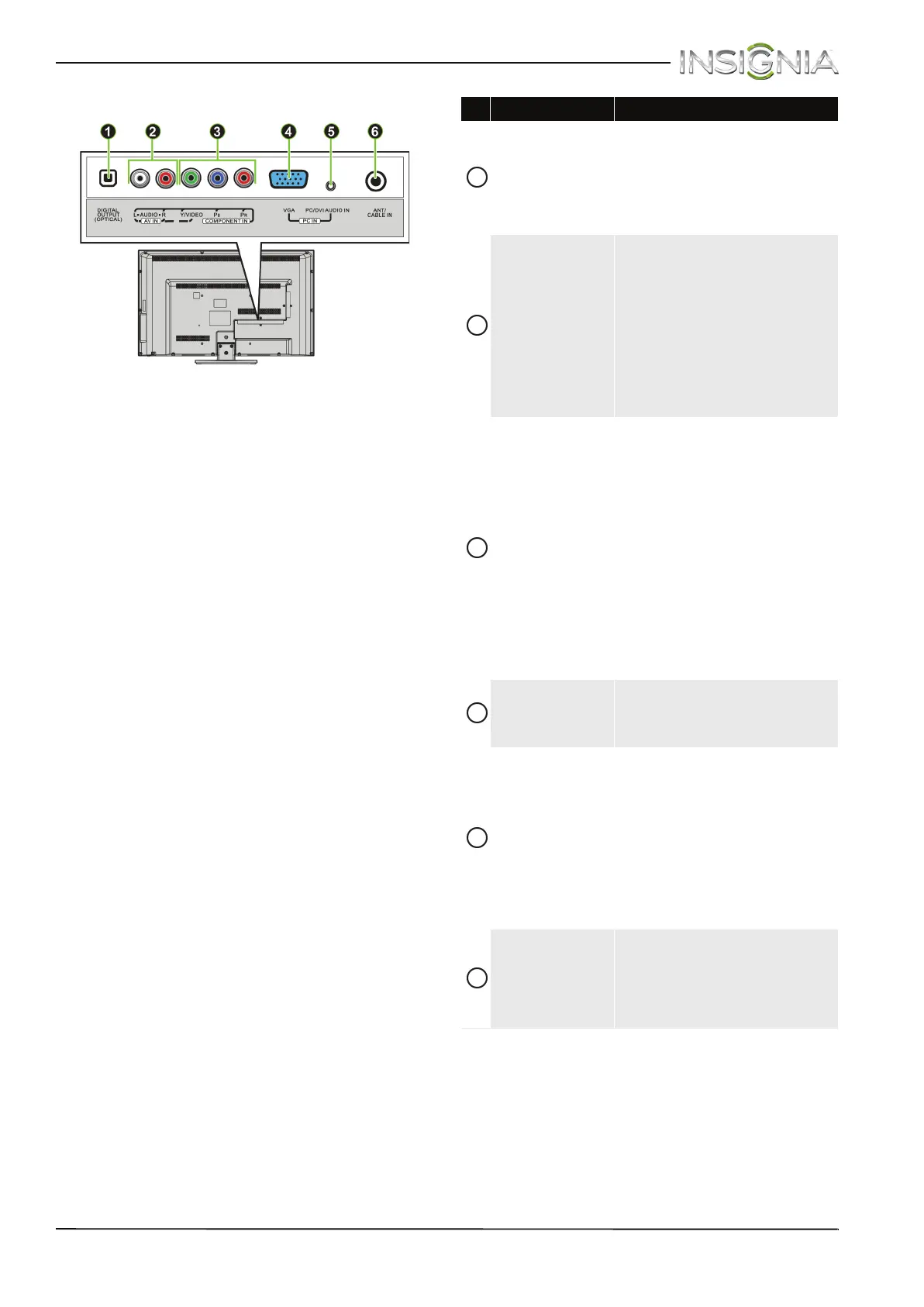

# Item Description
DIGITAL OUTPUT
(OPTICAL)
Connect a digital audio amplifier,
home theater system, or sound
bar to this jack to listen to TV
audio through the external
speakers. For more information,
see “Using digital audio” on
page 32.
L and R AUDIO
Connect the audio for a
component video device to these
jacks. For more information, see
“Using component video (better)”
on page 15, 21, or 25.
OR
Connect the audio for a
composite video device to these
jacks. For more information, see
“Using composite video (good)”
on page 16, 22, or 26.
COMPONENT IN/
AV IN
Y/VIDEO, P
B, PR
OR
COMPONENT IN/
AV IN Y/VIDEO
The COMPONENT IN/AV IN
Y/VIDEO jack works as one of the
three component video jacks or
as a composite video jack.
Connect the video for a
component video device to these
jacks. For more information, see
“Using component video (better)”
on page 15, 21, or 25.
OR
Connect the video for a
composite video device to the
COMPONENT IN/AV IN Y/VIDEO
jack. For more information, see
“Using composite video (good)”
on page 16, 22, or 26.
VGA
Connect the video (VGA) for a
computer to this jack. For more
information, see “Using VGA
(most common)” on page 27.
PC/DVI AUDIO IN
Connect the audio for a computer
to this jack. For more information
see “Using VGA (most common)”
on page 27.
OR
Connect the audio for a DVI
device to this jack. For more
information see, “Using DVI (same
as HDMI but requires an audio
connection)” on pages 14, 20,
or 29.
ANT/CABLE IN
Connect an antenna or cable TV
to this jack. For more information,
see “Using coaxial (good)” on
page 17 or “Connecting an
antenna or cable TV (no box)” on
page 18.
