Connecting a component video device
To connect a component video device:
1 Make sure that your TV/Blu-ray combo’s power
cord is unplugged and the component video
device is turned off.
2 Connect a component video cable to the
COMPONENT1 INPUT (Y, PB, PR) or
COMPONENT2 INPUT jacks on the back of your
TV/Blu-ray combo and to the corresponding
COMPONENT OUT jacks on the component
video device.
3 Connect an audio cable to the COMPONENT1
INPUT AUDIO L and R or COMPONENT2 INPUT
AUDIO L and R jacks on the back of your
TV/Blu-ray combo and to the COMPONENT
AUDIO OUT jacks on the component video
device.
4 Turn on your TV/Blu-ray combo, then turn on
the component video device.
5 Press INPUT to open the source list, press
INPUT repeatedly or press or to highlight
Component-1 or Component-2, then
press ENTER.
Connecting an S-Video device
To connect an S-Video device:
1 Make sure that your TV/Blu-ray combo’s power
cord is unplugged and the S-Video device is
turned off.
2 Connect an S-Video cable to the AV INPUT
S-VIDEO jack on the back of your
TV/Blu-ray combo and to the S-VIDEO OUT jack
on the S-Video device.
3 Connect an audio cable to the AV INPUT AUDIO
L and R audio jacks on the back of your
TV/Blu-ray combo and to the AUDIO OUT jacks
on the S-Video device.
4 Turn on your TV/Blu-ray combo, then turn on
the S-Video device.
5 Press INPUT to open the source list, press
INPUT repeatedly or press or to highlight
AV, then press ENTER.

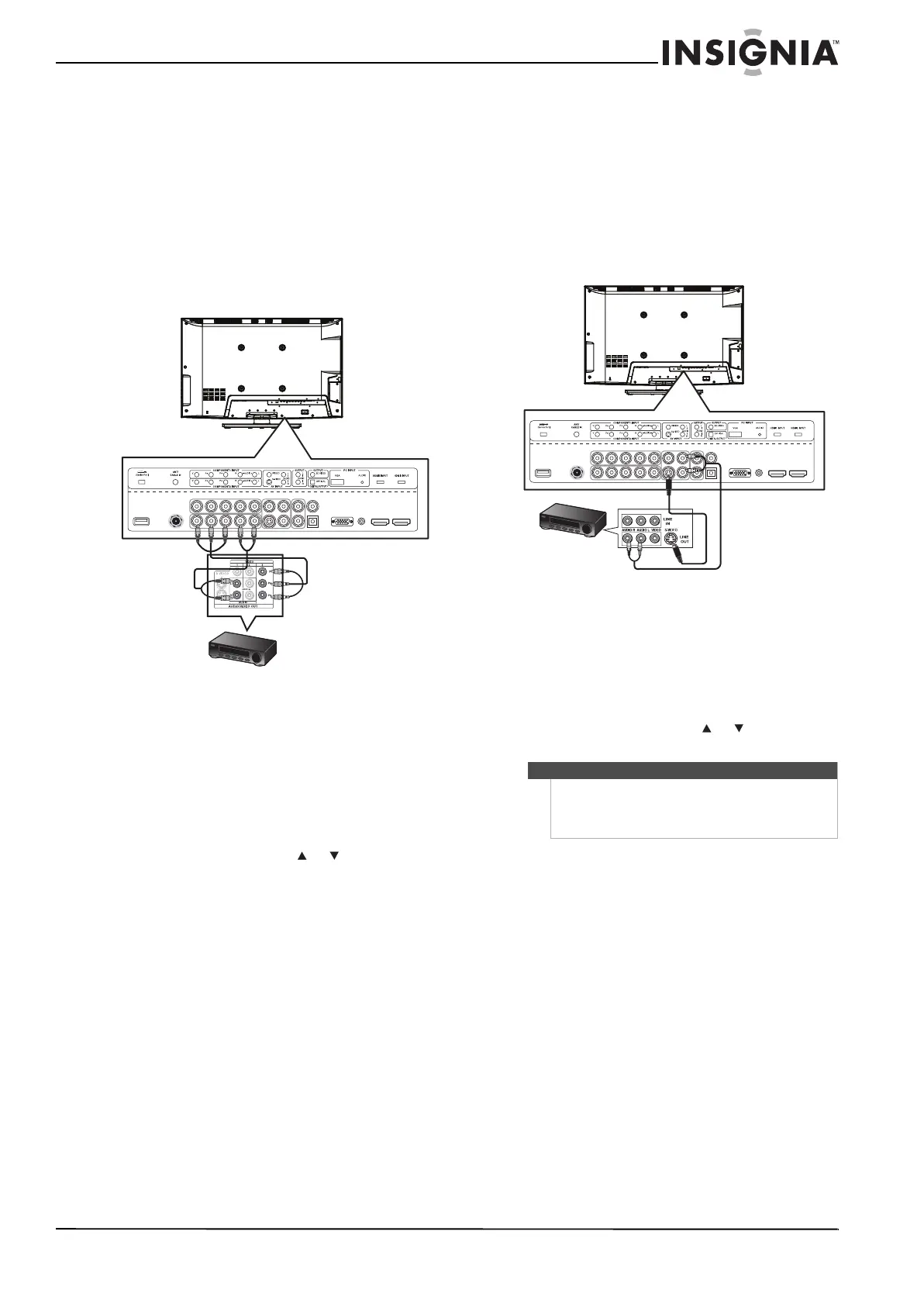

Back of TV/Blu-ray combo
Component video device
Cables are often color-coded to
match color-coded jacks.
Note
The AV INPUT S-VIDEO jack and the AV INPUT
VIDEO jack share the AV INPUT AUDIO L and R jacks.
If you have devices connected to both video jacks,
the S-VIDEO jack controls the audio jacks.
Back of TV/Blu-ray combo
S-Video device
Cables are often color-coded
to match color-coded jacks.
Connect red to red and
white to white.
